SPEX SamplePrep 6775 Quick Start Manual

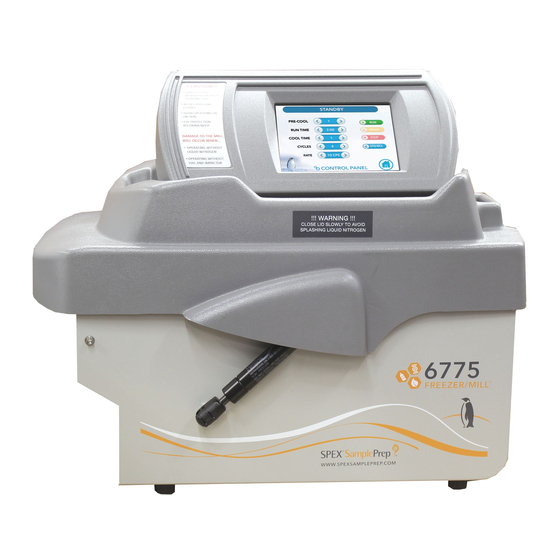

6775 FREEZER/MILL
Touchscreen
(USB Port back
of Controller)
Step 1. Connect the powercord to the AC Inlet located at the back of unit. Power On the 6775 FM.
"
Wait appears on the screen during start-up as the software loads. After a brief animation, the screen
will switch to the Home Screen.
Step 2. Fill the tub manually with liquid nitrogen to the fill mark (approx. 2 inches below lip of the tub).
Always close the lid slowly to avoid splashing of LN and latch down. It is normal to see a visible
vapor stream exiting the vent at the back of the unit. Do not block the vent.
From the Home Screen the
Control Panel, Saved Protocols,
and Resources can be accessed
by the user.
On the Control Panel, run
parameters can be set as well
as stored or recalled.
®
QUICK START GUIDE
Latch
Grinding Chamber
LN Tub
AC Inlet and
ON/OFF Switch
)
(back of unit
How To Operate 6775 Freezer/Mill
Set up the 6775 FM in a well ventilated, unconfined
space. The Freezer/Mill should be run on an open
countertop, in ambient air, with recommended
maximum relative humidity 70% from 5°C – 31°C
(40°F – 88°F).
When working with liquid nitrogen directly or
indirectly, the LN Tank valve or hose, or chilled
Freezer/Mill components, cryogenic gloves must be
worn to protect hands. A face shield is recommended
to protect eyes from possible splashing. Wear the
proper protection equipment (PPE).
Touching the Home Icon returns
the user to the Home screen.
From the Resources screen the run
history, technical support, accessories,
and training information (manual, etc.)
are accessed.
1300-87050QSG-1A, REV 0
"
Please
Touching Edit will activate
a pop-up keyboard to edit
or save a protocol.
