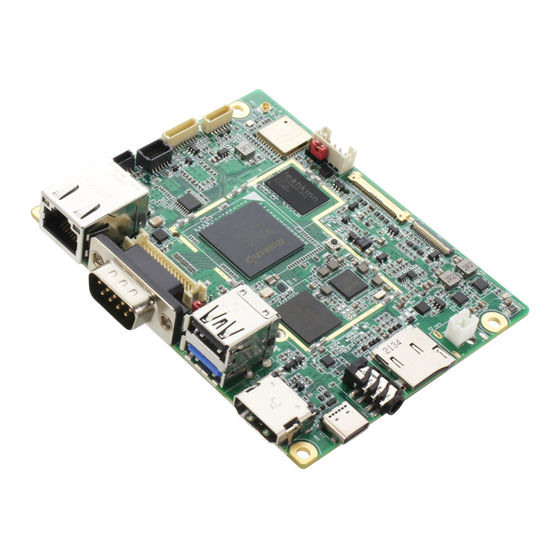

RICO-3568
Rockchip RK3568 Platform
st
User's Manual 1
Ed
Last Updated: January 30, 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AAEON RICO-3568 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asus AAEON RICO-3568

Summary of Contents for Asus AAEON RICO-3568

  • Page 1 RICO-3568 Rockchip RK3568 Platform User’s Manual 1 Last Updated: January 30, 2024...

  • Page 2: Copyright Notice

    Copyright Notice This document is copyrighted, 2024. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer.
  • Page 3 Acknowledgement All other products’ name or trademarks are properties of their respective owners. Arm® and Cortex® are registered trademarks of Arm Limited (or its ⚫ subsidiaries). Mali™ is a trademark of Arm Limited (or its subsidiaries). ⚫ ITE is a trademark of Integrated Technology Express, Inc. ⚫...
  • Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity RICO-3568 ⚫ RTC Battery ⚫ MB Power Cable ⚫ If any of these items are missing or damaged, please contact your distributor or sales representative immediately.
  • Page 5 About this Document This User’s Manual contains all the essential information, such as detailed descriptions and explanations on the product’s hardware and software features (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the product page on AAEON.com for the latest version of this document.
  • Page 6 Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references All cautions and warnings on the device should be noted. Make sure the power source matches the power rating of the device. Position the power cord so that people cannot step on it.

  • Page 7: To Prevent Damage

    If any of the following situations arises, please the contact our service personnel: Damaged power cord or plug Liquid intrusion to the device iii. Exposure to moisture Device is not working as expected or in a manner as described in this manual The device is dropped or damaged Any obvious signs of damage displayed on the device...
  • Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
  • Page 9 ISEDC RSS Warning This product meets the applicable Industry Canada technical specifications. Le présent matériel est conforme aux spécifications techniques applicables d’Industrie Canada. Preface...
  • Page 10 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON Main Board/ Daughter Board/ Backplane 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 ○ ○ ○ ○ 及其电子组件 外部信号 ○ ○ ○ ○ 连接器及线材 O：表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定的限量要求以下。 X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出...
  • Page 11 China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products AAEON Main Board/Daughter Board/Backplane Poisonous or Hazardous Substances or Elements Hexavalent Polybrominated Polybrominated Component Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB & Other ○...

  • Page 12: Table Of Contents

    Table of Contents Chapter 1 - Product Specifications..................1 Specifications ......................2 Block Diagram ......................5 Chapter 2 – Hardware Information ..................6 Dimensions ....................... 7 Jumpers and Connectors ..................9 List of Jumpers ......................11 2.3.1 COM Pin 9 Function Selection (JP1)............ 11 2.3.2 LVDS Operating Voltage Selection (JP2) ...........
  • Page 13 2.4.16 RTC Battery (CN19)................30 2.4.17 Dual USB 2.0/LAN/3.3V I2C/CANBus Connector (CN20) .... 30 2.4.18 Nano SIM Card (CN22) ................ 32 2.4.19 External 5V/RS232/3.3V/Debug Port (CN23) ........33 2.4.20 Power Button/Reset Button/Power LED (CN24) ......33 2.4.21 DIO/Buzzer/5V (CN25) ................ 34 Appendix A - Mating Connectors..................

  • Page 14: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications...

  • Page 15: Specifications

    Specifications System Form Factor PICO-ITX Plus (100mm x 80mm) Rockchip ™ RK3568 Quad-Core Arm® Cortex®-A55 Processor NPU: 0.8 TOPS Arm® Mali™-G52 GPU Graphics Video Encode: 1080p @60fps H.264/H.265 Video Decode: 4K @60fps H.264/H.265/AV1 4KP60 AVS2/VP9 1080p MPEG1/VP8 Memory Capacity Onboard LPDDR4 2GB/4GB/8GB (Optional) Storage/SSD 16GB eMMC + Micro SD Full-size Mini PCIe x 1 (mSATA/USB)
  • Page 16 System MTBF (Hours) Certification CE/FCC Display HDMI HDMI 2.0, up to 4K x 2K @60Hz eDP 1.3, up to 2560 x 1600 @60Hz LVDS 18/24-bit LVDS, up to 1280 x 800 @60Hz JP2, 3.3V/5V: LVDS Power Selection JP3, 5V/12V: Backlight Power Selection LCD Backlight connector MIPI Up to 2048 x 1536 @60Hz for Dual-MIPI Mode...
  • Page 17 Serial Port RS-232/422/485 x 1 JP1, 5V/12V: RS-232/422/485 Voltage Output Selection RS-232/Debug Port 7-pin Wafer x 1 CN3: UART (Tx/Rx Only), I2C, USB, Others Audio Microphone/Earphone (3.5mm) GPIO GPIO x 8 via 2x6P Wafer x 1 Expansion Slot Full-size Mini PCIe x 1 (mSATA/USB) 40-pin FPC Connector x 1 (via Daughter Board) SIM Slot Nano SIM, Push-Push Type with Tray...

  • Page 18: Block Diagram

    Block Diagram Chapter 1 – Product Specifications...

  • Page 19: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information...

  • Page 20: Dimensions

    Dimensions Component Side Chapter 2 – Hardware Information...
  • Page 21 Solder Side Chapter 2 – Hardware Information...

  • Page 22: Jumpers And Connectors

    Jumpers and Connectors Chapter 2 – Hardware Information...
  • Page 23 Bottom Chapter 2 – Hardware Information...

  • Page 24: List Of Jumpers

    List of Jumpers Please refer to the table below for all of the board’s jumpers that you can configure for your application Label Function COM Pin 9 Mode Selection (Ring/+5V/+12V) LVDS Operating Voltage Selection LVDS Inverter/Backlight Voltage Selection 2.3.1 COM Pin 9 Function Selection (JP1) +5V (Default) Ring +12V...

  • Page 25: Lvds Inverter/Backlight Voltage Selection (Jp3)

    2.3.3 LVDS Inverter/Backlight Voltage Selection (JP3) +12V (Default) Chapter 2 – Hardware Information...

  • Page 26: List Of Connectors

    List of Connectors Please refer to the table below for all of the board’s connectors that you can configure for your application. For connector vendor and model information, please refer to Appendix A. Label Function Micro SD Card COM Port External 3.3V I2C/USB 2.0/3.3V UART Port RJ-45 LAN Port 1 HDMI...

  • Page 27: Micro Sd Card (Cn1)

    2.4.1 Micro SD Card (CN1) Standard specifications. 2.4.2 COM Port (CN2) RS-232 Pin Name Signal Type Signal Level +10V +10V +10V RI/+5V/+12V IN/ PWR +5V/+12V RS-485 Pin Name Signal Type Signal Level RS485_D- RS485_D+ RS-422 Pin Name Signal Type Signal Level RS422_TX- ±5V RS422_TX+...

  • Page 28: External 3.3V I2C/Usb2.0/3.3V Uart Port (Cn3)

    RS-422 Pin Name Signal Type Signal Level RS422_RX+ RS422_RX- Note: COM RS-232/422/485 mode can be set by APP settings. Default is RS-232. 2.4.3 External 3.3V I2C/USB2.0/3.3V UART Port (CN3) Pin Name Signal Type Signal Level I2C4_SCL_3V3 +3.3V I2C4_SDA_3V3 +3.3V 5V_SYS HUB_USB2_P_C HUB_USB2_N_C UART5_TX_M1...

  • Page 29: Lan Port 1 (Cn5)

    2.4.4 RJ-45 LAN Port 1 (CN5) Pin Name Signal Type Signal Level LAN1_MDI0_P DIFF LAN1_MDI0_N DIFF LAN1_MDI1_P DIFF LAN1_MDI1_N DIFF LAN1_MDI2_P DIFF LAN1_MDI2_N DIFF LAN1_MDI3_P DIFF LAN1_MDI3_N DIFF LED Color Link Speed Left Right Orange 10 Mbps Green 100 Mbps Yellow 1000 Mbps Chapter 2 –...

  • Page 30: Hdmi Connector (Cn6)

    2.4.5 HDMI Connector (CN6) Pin Name Signal Type Signal Level HDMI_TX2P_CONN DIFF HDMI_TX2N_CONN DIFF HDMI_TX1P_CONN DIFF HDMI_TX1N_CONN DIFF HDMI_TX0P_CONN DIFF HDMI_TX0N_CONN DIFF HDMI_TXCP_CONN DIFF HDMI_TXCN_CONN DIFF PORT_CEC N.C. HDMI_SCL HDMI_SDA VCC5V_HDMI PORT_HPD Chapter 2 – Hardware Information...

  • Page 31: Lvds Inverter/Backlight Connector (Cn7)

    2.4.6 LVDS Inverter/Backlight Connector (CN7) Pin Name Signal Type Signal Level DIS_PWR +5V /+12V(Default) BKLCTL +3.3V(Default)/+5V ENABLK +3.3V(Default)/+5V Note: DIS_PWR can be set to +12V or +5V by JP3. Note: BKLCTL can be set by JP2. Note: The driving current of DIS_PWR supports up to 2A. 2.4.7 LVDS LCD Connector (CN8) Pin Name...
  • Page 32 Pin Name Signal Type Signal Level LVDS_CLK0N_C DIFF LVDS_CLK0P_C DIFF VCC_LVDS +3.3V(Default) /+5V LVDS_D0N_C DIFF LVDS_D0P_C DIFF LVDS_D1N_C DIFF LVDS_D1P_C DIFF LVDS_D2N_C DIFF LVDS_D2P_C DIFF LVDS_D3N_C DIFF LVDS_D3P_C DIFF DDC_SDA +3.3V DDC_CLK +3.3V N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C.

  • Page 33: Mipi Lcd Connector (Cn9)

    2.4.8 MIPI LCD Connector (CN9) Pin Name Signal Type Signal Level TOUCH_2V8 +2.8V TOUCH_RST_R TOUCH_SCL TOUCH_SDA TOUCH_INT N.C. LED+ LED+ N.C. LED- LED- LED- N.C. N.C. Chapter 2 – Hardware Information...
  • Page 34 Pin Name Signal Type Signal Level MIPI_D3P DIFF MIPI_D3N DIFF MIPI_D2P DIFF MIPI_D2N DIFF MIPI_CLK0P DIFF MIPI_CLK0N DIFF MIPI_D1P DIFF MIPI_D1N DIFF MIPI_D0P DIFF MIPI_D0N DIFF LCD_RST_R LCD_1V8 +1.8V MIPI_3V3 +3.3V MIPI_3V3 +3.3V LCD_FMARK Note: The driving current of LED+ supports up to 0.45A. Chapter 2 –...

  • Page 35: Edp Lcd Connector (Cn10)

    2.4.9 eDP LCD Connector (CN10) Pin Name Signal Type Signal Level EDP_TX0N_R DIFF EDP_TX0P_R DIFF EDP_TX1N_R DIFF EDP_TX1P_R DIFF EDP_TX2N_R DIFF EDP_TX2P_R DIFF LCD_3V3 LCD_3V3 EDP_TX3N_R DIFF EDP_TX3P_R DIFF EDPAUXN_R DIFF EDPAUXP_R DIFF EDP_HPD Chapter 2 – Hardware Information...

  • Page 36: Audio Jack W/ Mic Function (Cn11)

    Pin Name Signal Type Signal Level ENABLK BKLCTL DIS_PWR +5V/+12V(Default) DIS_PWR +5V/+12V(Default) DIS_PWR +5V/+12V(Default) DIS_PWR +5V/+12V(Default) 2.4.10 Audio Jack w/ MIC Function (CN11) Pin Name Signal Type Signal Level HP_DET HP_J_R N.C. N.C. HP_MIC1N N.C. HP_J_L Chapter 2 – Hardware Information...

  • Page 37: Usb 3.2 Gen 1 Type-C Otg (Cn12)

    2.4.11 USB 3.2 Gen 1 Type-C OTG (CN12) Pin Name Signal Type Signal Level TYPEC0_TX1P_C DIFF TYPEC0_TX1N_C DIFF VBUS_TYPEC TYPEC_CC1 TYPEC0_DP_C DIFF TYPEC0_DM_C DIFF N.C. VBUS_TYPEC TYPEC0_RX2N_C DIFF TYPEC0_RX2P_C DIFF TYPEC0_TX2P_C DIFF TYPEC0_TX2N_C DIFF VBUS_TYPEC TYPEC_CC2 TYPEC0_DP_C DIFF TYPEC0_DM_C DIFF N.C.

  • Page 38: Usb 3.2 Gen 1/Usb 2.0 Port (Cn13)

    Pin Name Signal Type Signal Level TYPEC0_RX1N_C DIFF TYPEC0_RX1P_C DIFF Note: The driving current of VBUS_TYPEC supports up to 2A. 2.4.12 USB 3.2 Gen 1/USB 2.0 Port (CN13) Pin Name Signal Type Signal Level 5V_USB_C USB3_DM_C DIFF USB3_DP_C DIFF USB3_SSRXN_C DIFF USB3_SSRXP_C DIFF...

  • Page 39: Mini Pcie For Lte/Msata (Cn14)

    Pin Name Signal Type Signal Level USB2_P_C DIFF Note: The driving current of 5V_USB_C supports up to 2A. 2.4.13 Mini PCIe for LTE/mSATA (CN14) Pin Name Signal Type Signal Level WAKE_UP PCIE_3V3 +3.3V N.C. N.C. PCIE_1V5 +1.5V PCIE20_CLKREQn_M1 USIM_PWR Chapter 2 – Hardware Information...
  • Page 40 Pin Name Signal Type Signal Level USIM_DATA PCIE20_REFCLKN DIFF USIM_CLK PCIE20_REFCLKP DIFF USIM_RESET N.C. MODULE_WAKEUP N.C. PCIE_W_OFF PCIE_RST SATA2_RXP DIFF PCIE_3V3 +3.3V SATA2_RXN DIFF PCIE_1V5 +1.5V PCIE_SCL_3V3 SATA2_TXN DIFF PCIE_SDA_3V3 SATA2_TXP DIFF MINIPCIE_DN DIFF Chapter 2 – Hardware Information...
  • Page 41 Pin Name Signal Type Signal Level MINIPCIE_DP DIFF PCIE_3V3 +3.3V PCIE_3V3 +3.3V N.C. N.C. N.C. N.C. N.C. PCIE_1V5 +1.5V N.C. N.C. PCIE_3V3 +3.3V Chapter 2 – Hardware Information...

  • Page 42: Dc Power Jack (Optional) (Cn16)

    2.4.14 DC Power Jack (Optional) (CN16) Pin Name Signal Type Signal Level DCIN +12V N.C. 2.4.15 External +12V Power Input (CN17) Pin Name Signal Type Signal Level DCIN +12V Note: CN16 and CN17 cannot be used at the same time. Chapter 2 –...

  • Page 43: Rtc Battery (Cn19)

    2.4.16 RTC Battery (CN19) Pin Name Signal Type Signal Level VRTC_BAT +3.3V 2.4.17 Dual USB 2.0/LAN/3.3V I2C/CANBus Connector (CN20) Pin Name Signal Type Signal Level MAC1_RXD0 MAC1_RXD1 MAC1_RXD2 MAC1_RXD3 Chapter 2 – Hardware Information...
  • Page 44 Pin Name Signal Type Signal Level MAC1_RXDV MAC1_RXCLK MAC1_MDC MAC1_MDIO PHY1_TXD0 PHY1_TXD1 PHY1_TXD2 PHY1_TXD3 PHY1_TXEN PHY1_TXCLK MAC1_RSTn MAC1_INTn HUB_USB6_DP HUB_USB6_DN HUB_USB7_DP HUB_USB7_DN CAN1_STB_3V3 +3.3V CAN1_TX +3.3V CAN1_RX +3.3V N.C. N.C. N.C. N.C. N.C. Chapter 2 – Hardware Information...

  • Page 45: Nano Sim Card (Cn22)

    Pin Name Signal Type Signal Level N.C. I2C4_SDA_3V3 +3.3V I2C4_SCL_3V3 +3.3V I2C3_SDA_3V3 +3.3V I2C3_SCL_3V3 +3.3V N.C. DAU_3V3_EN +3.3V 2.4.18 Nano SIM Card (CN22) Pin Name Signal Type Signal Level USIM_CLK USIM_DATA USIM_RESET USIM_PWR N.C. Card Detect Note: CN22 must be used with the Nano SIM Card tray (P/N: P2M0410010) Chapter 2 –...

  • Page 46: External 5V/Rs232/3.3V/Debug Port (Cn23)

    2.4.19 External 5V/RS232/3.3V/Debug Port (CN23) Pin Name Signal Type Signal Level 3V3_SYS +3.3V UART2_TX_DBG UART2_RX_DBG RS232_TX_3 RS232_RX_3 5V_SYS 2.4.20 Power Button/Reset Button/Power LED (CN24) Pin Name Signal Type Signal Level Power Button Chapter 2 – Hardware Information...

  • Page 47: Dio/Buzzer/5V (Cn25)

    Pin Name Signal Type Signal Level Reset Button Power LED(+) +3.3V 2.4.21 DIO/Buzzer/5V (CN25) Pin Name Signal Type Signal Level 5V/0.5mA DIO_104 DIO_98 DIO_105 DIO_99 +5V(Default) +3.3V(Option) DIO_106 DIO_100 DIO_113 DIO_103 Buzzer(+) For 5V Buzzer Buzzer(-) Chapter 2 – Hardware Information...

  • Page 48: Appendix A - Mating Connectors

    Appendix A Appendix A - Mating Connectors...

  • Page 49: List Of Mating Connectors And Cables

    List of Mating Connectors and Cables Onboard Connector Label Function Vendor Model No CN1 MicroSD Card Socket TRONTEK KSIF09R11292 16549X0087 CN2 COM Port ASTRON DB6A-09-AMAN1T-R 1654400914 Integrated 3.3V PINREX 710-73-09TWEG 1655X00035 I2C/USB2.0/3.3V UART Port CN5 LAN Port 1 (RJ45) Connector SPEEDTECH RJJL4A-4WH1-FP0-0R 1652814205 CN6 HDMI Connector FOXCONN...
  • Page 50 Mating Connector Label Function Vendor Model No MicroSD Card Socket COM Port Integrated 3.3V I2C/USB2.0/3.3V UART Port JCTC 11002H00-9P LAN Port 1 (RJ45) Connector HDMI Connector LVDS Backlight Connector PHR-5 LVDS Connector DF13-30DS-1.25PITCH MIPI Connector CN10 eDP Connector I-PEX 20645-030T-01 CN11 Audio Jack w/ MIC function CN12...
  • Page 51 Label Available Cable Cable P/N Combo cable with USB and Dupont wire connector 170X000694 LVDS B/L Cable 170X000707 LVDS Cable 170X000707 CN10 CN11 CN12 CN13 CN14 CN16 CN17 Power Cable 170302015C CN19 RTC Cable with Battery 1750X00007 CN20 Daughter Board Cable 170X000541 CN22 Nano SIM Card Tray...
