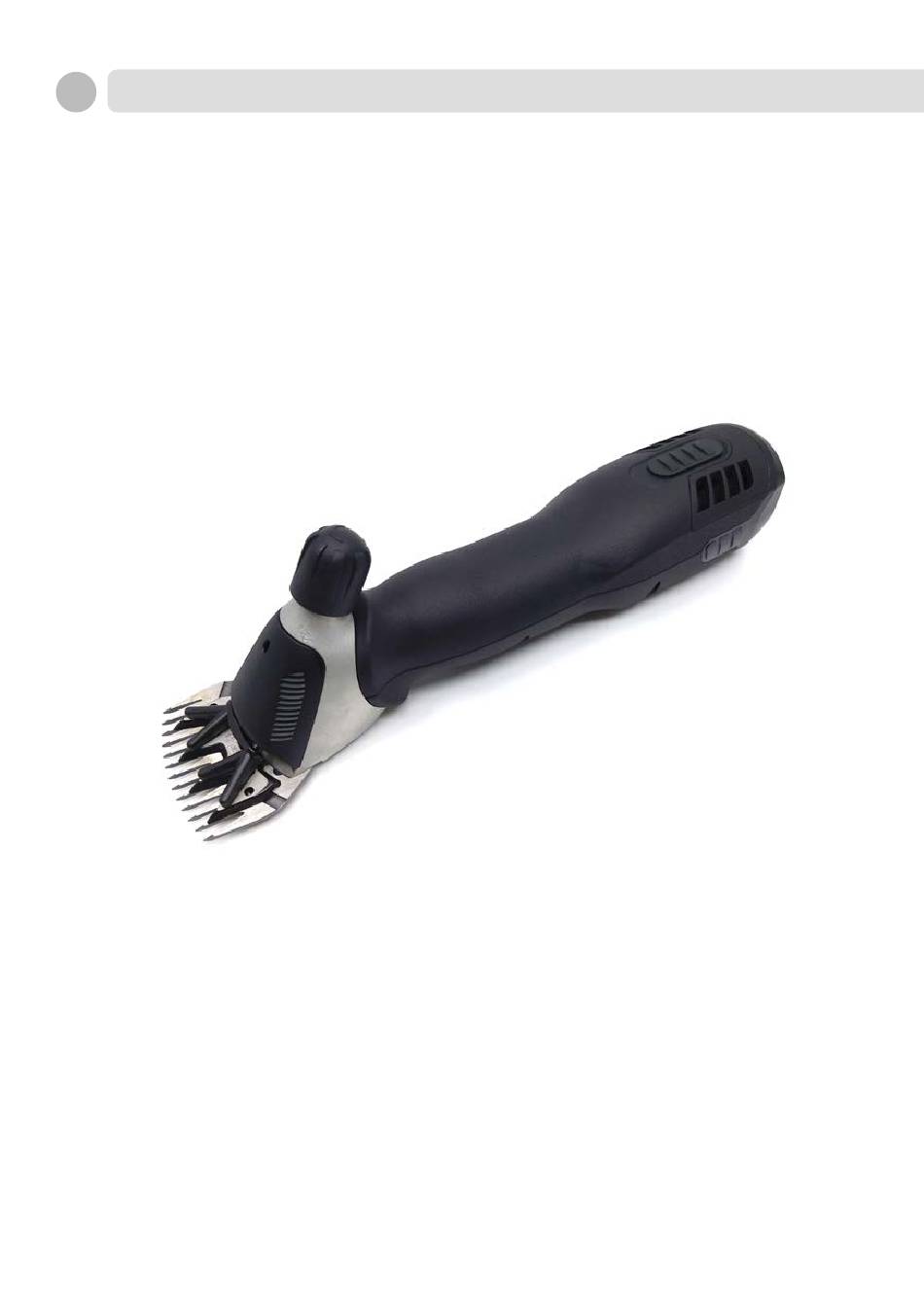

- Page 1 Sheep shearing machine Translation of the original instructions Version/Index: Xcell/A 11-24...
-
Page 2: Table Of Contents
Table of contents Safety ....................3 Personal ....................3 Symbols and warning notes ..............3 Stipulated usage ..................4 Personal Protective Equipment (PPE) ...........4 Power supply ..................5 Animals ....................6 Battery ....................6 Shearing blades..................7 Children ....................8 Generalities ................... 8 Guarantee conditions ................8 Customer service ...................8 Limitation of liability ................8 Technical data .................. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS NOTE! When using an electrical device, you must always observe basic precautionary measures as described below: Read all instructions before using the device. Safety Failure to observe the instructions and safety regulations mentioned in this manual can result in serious injury or damages to people, equipment and animals. -
Page 4: Stipulated Usage
Stipulated usage The device is designed and constructed exclusively for the intended use described here. The device is designed exclusively for shearing sheep, goats and llamas, alpacas and other camelidae. The device is intended for commercial use. The compliance of all indications in this manual is part of the intended use. Other uses are expressly prohibited. -
Page 5: Power Supply
Power supply DANGER! In order to reduce the risk of electric shock: Do not reach for an appliance that has fallen into water. Pull out the plug from the socket immediately. Do not use the device while bathing or showering. Do not place or store the device in such a way that it can fall or be pulled into a tub or sink. -
Page 6: Animals
Disconnect the mains plug of the charging station from the socket before plugging in or unplugging the device. WARNING! Keep the device dry. Animals The appliance is intended for trimming purposes only. WARNING! The noise of the shearing machine can trouble animals. A kick, an attack or the weight of the animal can cause serious injuries. -
Page 7: Shearing Blades
Only use the charging station supplied with the device to charge the battery. No shipping with the battery inserted Remove the battery from the machine before transporting it. Batteries may only be shipped with the prescribed labelling in accordance with national and international regulations. -
Page 8: Children
Children WARNING! Never let the equipment unsupervised und use it very carefully when children or persons who cannot judge the dangers are near- Children are not permitted to operate the equipment. Children must not be allowed to play with the device. KEEP THESE INSTRUCTIONS IN A SAFE PLACE! Generalities This manual facilitates a safe and efficient machine handling. -
Page 9: Technical Data
Technical data Shearing machine Handle Ø 54 mm Length 330 mm Weight with battery 1.4 kg Rotary speeds see specifications plate on the device Noise emission 66 dB(A) (EN 60335-2-8) Vibration a 13.28 m/s (EN 60335-2-8) Charger and power supply unit Voltage Max. current consumption see specifications plate on the device Frequency Assembly and function... -
Page 10: Transport, Packaging And Storage
Transport, packaging and storage Scope of delivery Shearing machine 1 pce Shearing blades 1 pair Special screwdriver 1 pce 1 bottle Special lubricating oil 1 pce Cleaning brush Case for transport and storage 1 pce 1 pce Instruction Manual 1 pce Charging station with plug Battery (equipment oriented) 1-2 pcs. -
Page 11: Charge Battery
Charge battery 6.2.1 Setting up the charging station 1. Place the charging station (3) on a firm, level, dry and clean surface. 2. Connect cable (1) to the charging station. 3. Insert the power plug of the cable (1) into the socket. The green continuous light of the left LED (2) indicates that the plug-in power supply unit is correctly connected to the socket and the charging station is receiving power. -
Page 12: Adjusting The Shearing Pressure
4. Insert the charged battery into the shearing machine until the battery lock (1) is engaged on both sides. Fig. 6 NOTE! Fast charging (CC charging) takes about 35 minutes for an empty battery. The battery is then approximately 2/3 charged and fully operational. With two batteries, continuous operation is possible. -
Page 13: Switching The Shearing Machine On And Off
NOTE! If the shearing pressure is too low, hair can gather between the shearing blades. This results in a poor shearing quality. In this case, clean the shearing blades with a brush. Switching the shearing machine on and off Turning on the shearing machine II I 0 Slide the on/off switch to position I or position II. - Page 14 7. Remove upper blade (2). 8. Place the new upper blade in the drive taper pins (3) of the pressure forks. Fig. 12 9. Apply a few drops of oil to the ground surfaces of the upper blade. Fig. 13 NOTE! When fitting the new or reground shearing blades, ensure that the blades are cor- rectly positioned in relation to each other.
-
Page 15: Lubrication
Lubrication To ensure a well-shorn animal and to increase the life of the shearing machine including the shearing head, it is necessary to apply a thin coat of oil between the upper blade and comb plate. All other moving parts of the shear- ing head must also be lubricated. -
Page 16: Troubleshooting
Clean air filter 1. Switch off the machine and remove the battery (1) from the shearing machine. 2. Remove the air filter (2) from the shearing machine. 3. Clean the air filter (2) with a dry brush. Ensure that no foreign objects get into the shearing machine during cleaning. 4. Insert the air filter back into the shearing machine. 5. If you want to continue shearing, push the battery into the shearing machine. Otherwise, store the shearing machine and battery separately in the case. - Page 17 Malfunction Cause Rectification Shearing pressure ad- Retainer missing Notify customer service justment knob loosens Threaded insert is loose. by itself Not enough pressure Retaining spring broken. Notify customer service can be applied to the Sliding sleeve is missing upper blade. Bolt bearing worn Swivel head worn Chicken feet worn...
-
Page 18: Spare Parts
Ball bearing 608-2Z Fan charging station Xcell Threaded insert Fan guard Circlip Screws Sliding sleeve Ferrite holder Housing shell top Heiniger Cable power supply complete Heiniger top housing shell Light guide Xcell Translation of the original instructions / Sheep shearing machine... -
Page 19: Disposal
Pos. Description Quan- Pos. Description Quan- tity tity Switch lever Xcell cable with EU plug Air filter Xcell with AU plug Switch latching with contact with GB plug Switch contact with US plug PCB switch machine Xcell with plug ARG with BR plug Disposal CAUTION! Environmental damages when disposing incorrectly! - Page 24 This instruction manual may not be duplicated or distributed, neither completely nor in extracts, or by electronic or mechanical means (including photocopying), transmitted or used for the purpose of competition without authorisation from Heiniger AG. Subject to change without notice.
