Summary of Contents for La Crosse Technology M71633

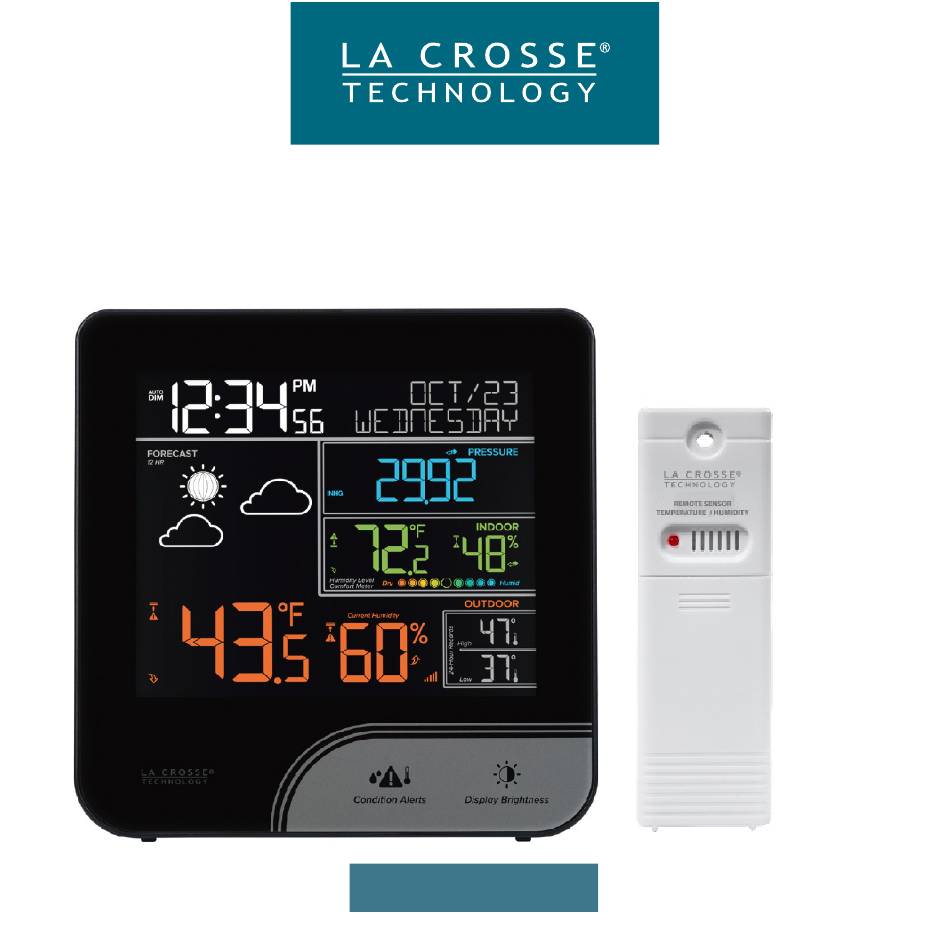

- Page 1 Wireless Color Weather Station SETUP GUIDE MODEL: M71633...
-
Page 2: Table Of Contents
Insert 2-AA batteries into your Outdoor Sensor. Plug the 5V Power Adapter into an outlet and then into the Power Jack at the bottom of the Weather Station. Weather Station M71633 Remove the Insulation Tab from the station’s battery compartment. Use the instructions on page to set your time, date, and other settings. -
Page 3: Settings Menu
Settings Menu Hold the button until the display changes to enter the Settings Menu. Press and release the buttons to adjust values. Press and release the button to confirm values and move to the next setting. Press and release the DECIMAL ON/OFF button at any time to save and exit. -
Page 4: Indoor Humidity
Temperature & Humidity Icons 1. INDOOR TEMPERATURE 2. INDOOR HUMIDITY 3. TEMP. ALERT ICONS Current Indoor Humidity. Current Indoor Temp. Shows an Alert is armed. 4. HUMIDITY ALERT ICONS 5. TEMP. TREND ARROW 6. HUMIDITY TREND ARROW Shows an Alert is armed. Shows Temperature Trend over Shows Humidity Trend over the the past three hours. -
Page 5: History Records
History Records From normal time display, press and release the TEMP. RECORDS button to toggle through outdoor/indoor temperature and humidity records with time and date stamps. Records Viewing Order • Outdoor High Temperature • Outdoor Low Temperature • Outdoor High Humidity •... -
Page 6: Customizable Alerts
Customizable Alerts Setting Custom Alerts Hold the CONDITION ALERTS button until the display changes to enter the Alert Settings Menu. Press and release the buttons to activate/deactivate and adjust alerts settings. Press CONDITION ALERTS to confirm your selection. Your programmed alerts are active when the and / icon appear on the LCD. -
Page 7: Adjustable Backlight
Humidity Comfort Meter < 19% RH Based on Indoor Humidity, the empty circle 20% to 25% RH will indicate your current indoor comfort 26% to 35% RH level. 36% to 45% RH 46% to 55% RH 56% to 65% RH 66% to 75% RH 76% to 85% RH >86% RH... -
Page 8: Forecast Icons
Forecast Icons • The forecast icons use the station’s internal barometer to predict conditions to come within the next 12 hours. • For the most accurate forecasts, allow 7-10 days for station calibration. • The Snow Icon will show when temperatures are below 32°F (0°C) and rain or storms are predicted. -
Page 9: Moon Phase
Moon Phase The moon phase is based on the Lunar New Moon Small Waxing Large Waxing First Quarter Small Waxing Large Waxing Crescent Crescent Gibbous Gibbous Calendar and the year, month, and date settings. Moon Phase will show from 7:00pm to 6:59am regardless of the forecast. -
Page 10: Extra Sensors
Extra Sensor Area This station can display data for an add-on Rain Gauge as well as up to 3 additional Temp and Humidity Sensors. These readings will all appear in the upper left section of the LCD in place of the pressure reading. -
Page 11: Specifications
Specifications Weather Station (M71633) Temperature Range: 32ºF to 122ºF (0ºC to 50ºC) Humidity Range: 10% - 99% RH Relative Pressure Range: 23.62 to 32.48 inHg (800 to 1100 hPa) Power Requirements: 5-volt power adapter (included) HX075-0500600-AU-01 (Required for operation) The plug on the power adapter is intended to serve as the disconnect device, the socket-outlet shall be installed near the equipment and shall be easily accessible. -
Page 12: Warnings
• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. •... -
Page 13: Stay In Touch
Pull back the metal pin and gently remove Follow La Crosse Technology on Youtube, the battery. Facebook, Instagram, and X (Twitter). Insert a fresh CR2032 battery with the side up and snap it into place. -
Page 14: Warranty & Patents
Warranty and Patents La Crosse Technology Ltd. provides a 1-year limited-time warranty on this product relating to manufacturing defects in materials & workmanship. Per the Song-Beverly Act, in the state of California, the warranty on this item becomes effective on the date of delivery.
