Tyco QRS-2 Quick Release

Important: Refer to technical data sheet TFP2300
for warnings pertaining to regulatory and health
information.
Scan the QR code or enter the URL in a web
browser to access the most up-to-date electronic
version of this document. Data rates may apply.
docs.jci.com.tycofire/tfp1121
NOTICE
The TYCO Model QRS-2 Quick Release Switch
- Electronic Accelerator for Prescient III Gas
Suppression Panel described herein must be installed
and maintained in compliance with this document, as
well as with the applicable standards of the NATIONAL
FIRE PROTECTION ASSOCIATION (NFPA), in
addition to the standards of any other authorities
having jurisdiction. Failure to do so may impair the
performance of this device.
The owner is responsible for maintaining their fire
protection system and devices in proper operating
condition. Contact the installing contractor or sprinkler
manufacturer with any questions.
General description
The TYCO Model QRS-2 Quick Release Switch – Electronic
Accelerator for Prescient III Gas Suppression Panel, herein
called the Model QRS-2 Electronic Accelerator, is a quick
opening device intended to reduce the operating time of a
dry pipe valve in a dry pipe system or an automatic control
valve (deluge valve) in a double interlock electric/electric
preaction system.
1467 Elmwood Avenue, Cranston, RI 02910 | Telephone +1-401-781-8220 www.johnsoncontrols.com
© 2024 Johnson Controls. All rights reserved. All specifications and other information shown were current as of
document revision and are subject to change without notice.
Model QRS-2 Quick Release
Switch – Electronic Accelerator
for Prescient III Gas Suppression Panel

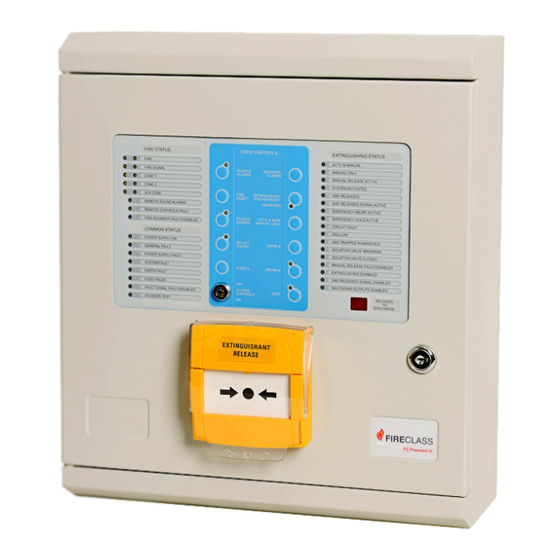

The Prescient III Gas Suppression Panel is a control panel
for gas suppression systems that is approved for the
European Market. The panel can be reconfigured for use
with water-based fire suppression systems.
The panel can be used with one Model QRS-2 Electronic
Accelerator for one system riser, using the dry pipe valve
model size range described in
Table 1: Compatible dry pipe valve
Description
TYCO Model DPV-1 Dry Pipe
Valve
Note: For more information about the valve, refer to
technical data sheet TFP1020.
The panel also can be used with one Model QRS-2
Electronic Accelerator for one system riser in a double
interlock electric/electric preaction system, using the
automatic control valve (deluge valve) model size range
described in
Table 2: Compatible automatic control valve
Description
TYCO Model DV-5A
Automatic Water Control
Valve with double interlock
electric/electric preaction
trim
Note: For more information about the valve, refer to
technical data sheet TFP1466.
Table 1.
Size range
2 ½ in. to 6 in. (DN65 to
DN150)
Table 2.
Size range
1 ½ in. to 8 in. (DN40 to
DN200)
TFP1121 JANUARY 2024
