The TYCO Model TOSY Outside Screw and Yoke
Valve Supervisory Switch described herein must
be installed and maintained in compliance with this
document, in addition to the standards of any other
authorities having jurisdiction. Failure to do so may
impair the performance of the related devices.
The owner is responsible for maintaining their fire
protection system and devices in proper operating
condition. Contact the installing contractor or product
manufacturer with any questions.
NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National
Fire Protection Association
Model TOSY Outside Screw and Yoke Valve
NOTICE
Supervisory Switch, APAC Only
General description

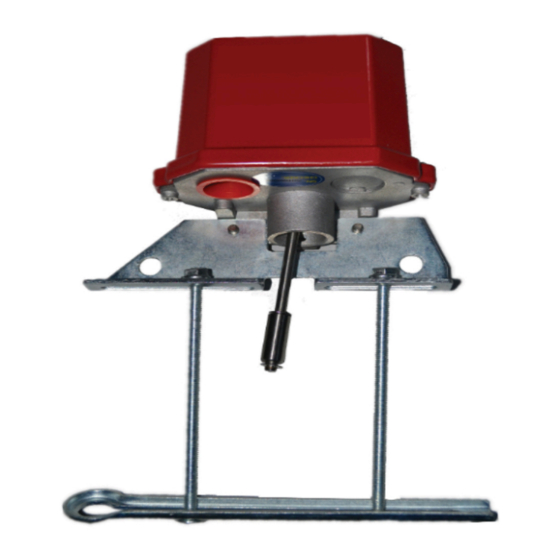

The TYCO Model TOSY Outside Screw and Yoke Valve
Supervisory Switch is designed to monitor the position of
an outside screw and yoke type gate valve, and indicate
when the valve is not in the open position.
The switch is weather proof and tamper resistant. The
cover incorporates tamper resistant screws that require
a special tamper resistant key for removal. One tamper
resistant key is supplied with each device.
The switch mounts to most TYCO outside screw and yoke
gate valves in a size range of 2 in. (50 mm) to 24 in. (600
mm).
Models
The switch models are based on the number of sets of
single-pole, double-throw (SPDT) contacts featured as
described in Table 1.
Table 1: Switch models
Model
TOSY-1
TOSY-2
TFP2113
MAY 2022
Description
1 set of SPDT contacts
2 sets of SPDT contacts
