Important: Refer to technical data sheet TFP2300
for warnings pertaining to regulatory and health
information.
Scan the QR code or enter the URL in a web
browser to access the most up-to-date electronic
version of this document. Data rates may apply.
docs.jci.com/tycofire/vane-type-waterflow-switch

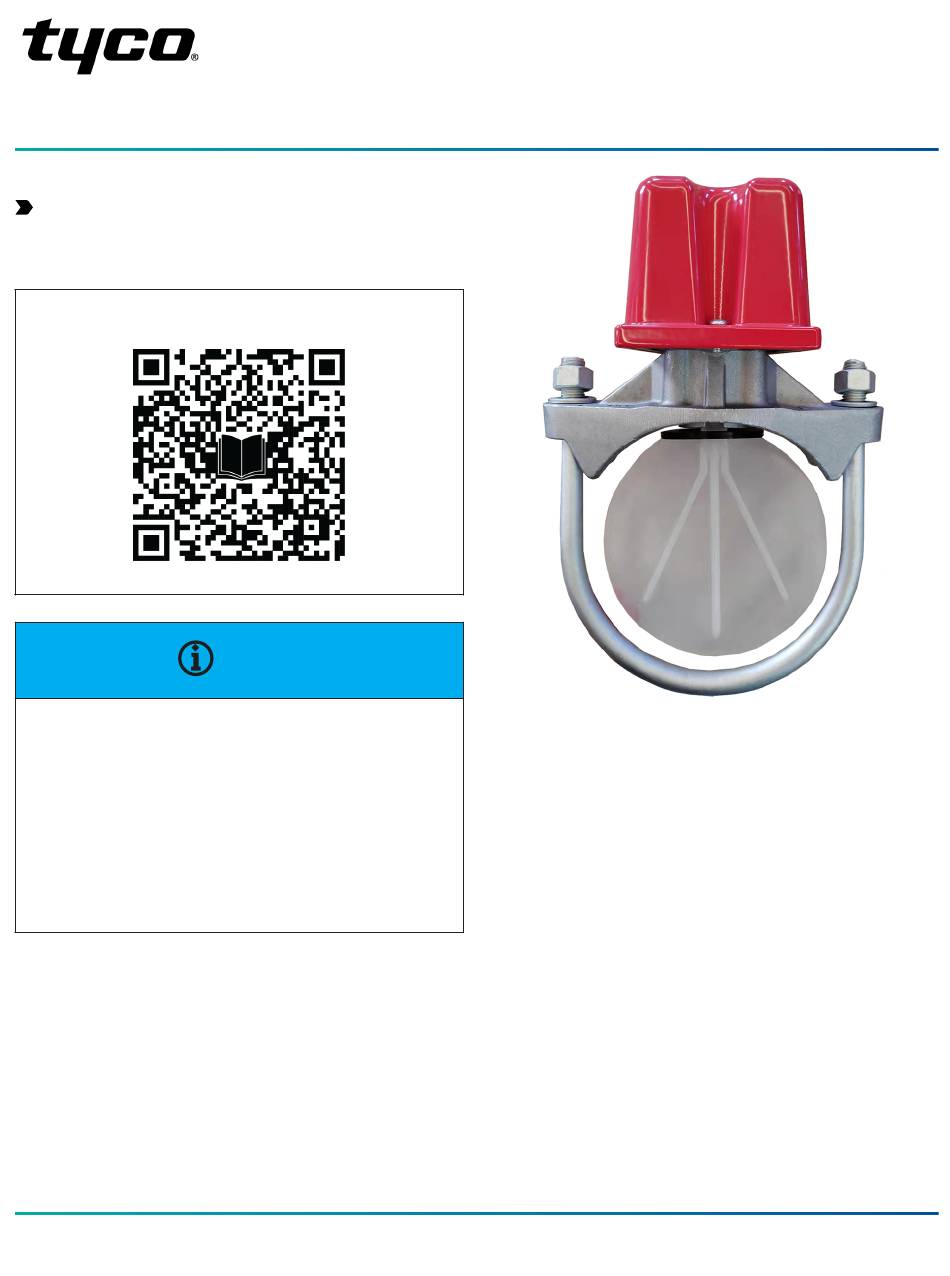

The TYCO Model TF Vane Type Waterflow Switch
described herein must be installed and maintained
in compliance with this document, in addition to the
standards of any other authorities having jurisdiction.
Failure to do so may impair the performance of the
related devices.
The owner is responsible for maintaining their fire
protection system and devices in proper operating
condition. Contact the installing contractor or product
manufacturer with any questions.
General description
The TYCO Model TF Vane Type Waterflow Switch is
designed to detect a waterflow condition in a wet sprinkler
system.
The switch assembly contains single-pole, double-throw
(SPDT) contacts, and an adjustable pneumatic vane. The
switch activates when a flow rate exceeding the flow
sensitivity of the switch occurs. The flow condition must
exist for a longer period than the retard delay setting of
the vane for the switch to operate.
NATIONAL FIRE PROTECTION ASSOCIATION and NFPA are registered trademarks of National
Fire Protection Association; TEFLON is a trademark of The Chemours Company FC, LLC
Model TF Vane Type Waterflow Switch
NOTICE
The switch assembly options include two arrangements:
• Saddle mount: See Figure .
• Thread mount: See Figure .
The standard saddle mount option is available in a 2 in.
to 10 in. size range. The thread (NPT) mount option is
available in a 1 in. to 2 in. size range.
The cover incorporates a tamper resistant screw that
requires a special tamper resistant key for removal. One
key is supplied with each device.
Models
For more information about the models, see Table 1 and
Table 2.
APAC Only
TFP2111
MAY 2022
Advertisement
Table of Contents
Related Manuals for Tyco TF020
Summary of Contents for Tyco TF020
- Page 1 For more information about the models, see Table 1 and General description Table 2. The TYCO Model TF Vane Type Waterflow Switch is designed to detect a waterflow condition in a wet sprinkler system. The switch assembly contains single-pole, double-throw (SPDT) contacts, and an adjustable pneumatic vane.
- Page 2 Assembly Figure 2: Thread mount waterflow switch components and dimensions Figure 1: Saddle mount waterflow switch components and dimensions Callout Description Cover Tamper resistant cover screw Conduit connection Wrench hex Thread connection, ¾ in. NPT Callout Description Vane Cover Tamper resistant cover screw Fitting Conduit connection The fitting is not included.
- Page 3 10.750 0.165 0.365 11.890 15.945 2.008 51.6-70.1 TF100 — (DN250) (273,0) (4,19) (9,27) (302) (405) +0.079 (70-95) Models TF020, TF025, TF030, TF040, TF050, TF060, TF080, and TF100 use Schedule 10/40 DIN/BS1387 pipe. Model TF Vane Type Waterflow Switch APAC Only...
- Page 4 (93,2) (110) (82) 2 x 2 x 1 3.67 4.33 2.44 TF020-T (DN50) (DN50 x DN50 x DN25) (93,2) (110) (62,5) Model suffixes: -T = These models do not feature an automatic retard to prevent false alarms. Each switch includes a set of four vanes to accommodate the range of fitting sizes.
- Page 5 Drain the system and drill a hole in the pipe according to the dimensions in Table 1. Use a hole The TYCO Model TF Vane Type Waterflow Switch must be saw in a slow speed drill to make the cut.
- Page 6 • The device should not be installed within 6 in. (15 cm) Note: If removing the detector, hold the vane of a fitting that changes the direction of the waterflow, and start to curl it. While curling the vane, or within 24 in. (60 cm) of a valve or drain. slowly pull it out of the pipe.
- Page 7 Care and maintenance entrance holes with the ground screw. The TYCO Model TF Vane Type Waterflow Switch must be Figure 7: Typical wiring connections maintained and serviced in accordance with this section, in addition to any specific requirements of the NFPA, and any impairment must be immediately corrected.
- Page 8 Nominal pipe size Part Model with applicable NFPA codes and standards and/or the in. (mm) number authority having jurisdiction (AHJ). A quarterly schedule is TF020 2 (DN50) 600020 recommended. TF025 2.5 (DN65) 600025 Inspect the switch for leaks monthly. If a leak is found...
