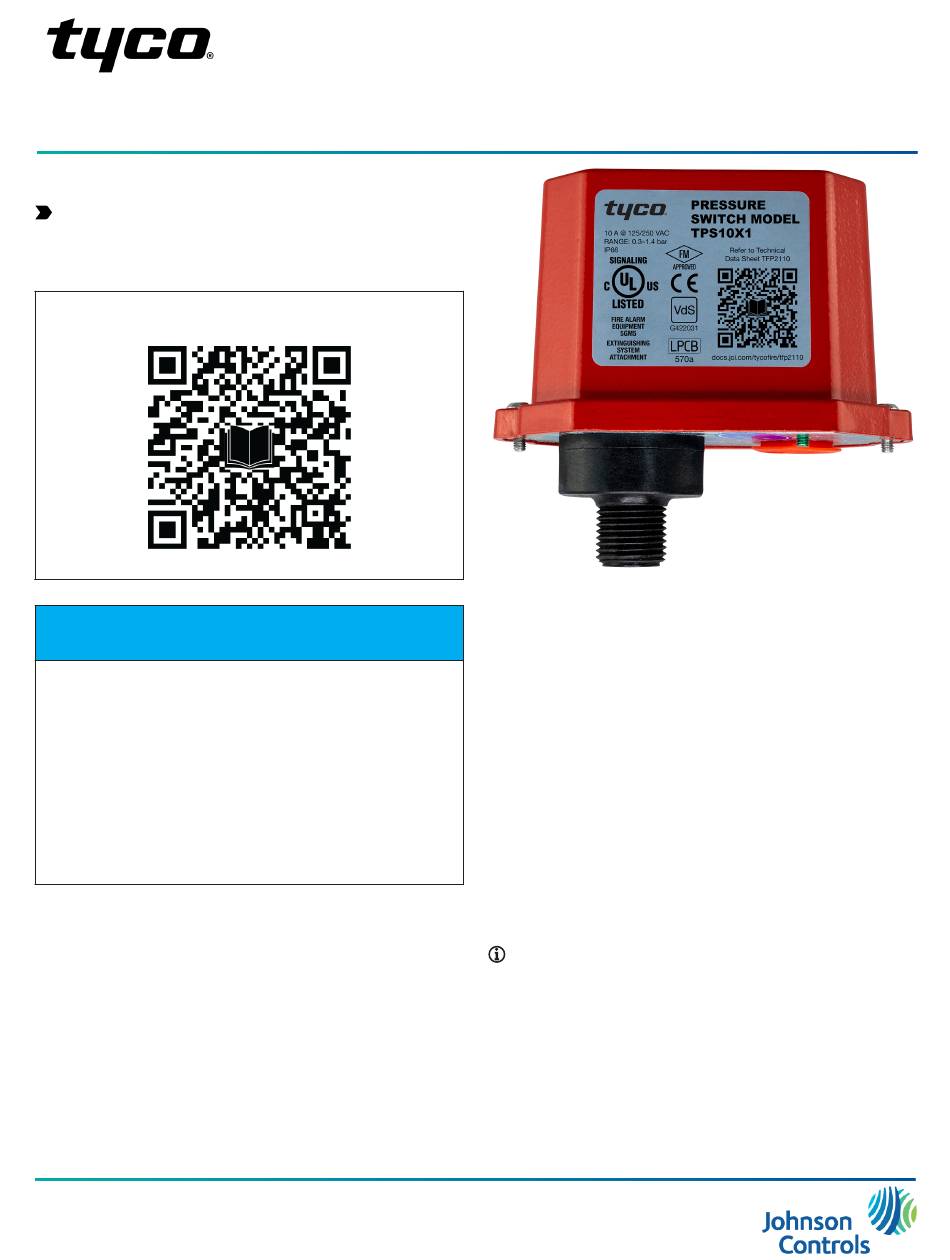

NOTICE
The TYCO Model TPS Waterflow Condition Pressure
Switch described herein must be installed and
maintained in compliance with this document, in
addition to the standards of any other authorities
having jurisdiction. Failure to do so may impair the
performance of the related devices.
The owner is responsible for maintaining their fire
protection system and devices in proper operating
condition. Contact the installing contractor or product
manufacturer with any questions.
1467 Elmwood Avenue, Cranston, RI 02910 | Telephone +1-401-781-8220 | www.johnsoncontrols.com
© 2024 Johnson Controls. All rights reserved. All specifications and other information shown were current as of
document revision and are subject to change without notice.
Model TPS Waterflow Condition
Pressure Switch, APAC and EMEA Only
General description

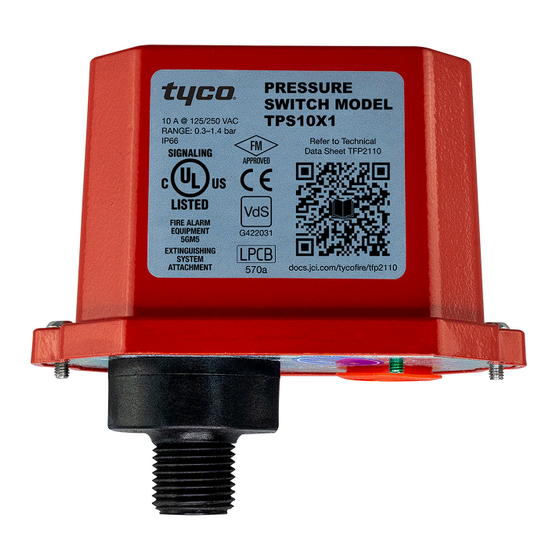

The TYCO Model TPS Waterflow Condition Pressure Switch
is a pressure actuated switch that detects a waterflow
condition in an automatic fire sprinkler system. These
systems including wet pipe systems with alarm check
valves, dry pipe, preaction and deluge valves. The switch
is adjustable across a pressure activation response range
of 4 psi (0,28 bar) to 20 psi (1,38 bar). Options are available
with one or two sets of single-pole, double-throw (SPDT)
contacts.
The switch cover incorporates a tamper resistant screw
that requires a special tamper resistant key for removal.
One key is supplied with each device.
Models
The switch is available in two model types:
• Standard: For non-hazardous locations.
• Explosion-proof: For hazardous locations.
Note:
There are two explosion-proof models: TPS10XEX and
TPS40XEX.
For specific information about the models, see
approvals information, see
TFP2110 JANUARY 2024
Table
Table 3.
2. For
