CRU Dataport Data Express DE110 Install Manual

Data Express DE110 SATA Install Guide
Removable SATA 1.5Gb/s Drive Enclosure
NOTE: For SATA 1.5Gb/s operation, a SATA controller and appropriate
SATA cable are required.
Compatible with PATA and SATA DE110 Carriers
Drive Carrier
JP1
Provides a signal to the Activity Indicator when connected via cable (provided)
to the SATA drive. Some SATA drives/host controllers provide support for the
Activity Indicator feature (refer to the SATA drive/host controller manufactur-
er's documentation for further information).
Serial ATA
Logo
Key Lock/Drive
Power Switch
"Universal" Receiving Frame Motherboard
Factory-Installed Jumper (ID0 & ID1)
Factory-installed jumper. Refer to Figures 2 & 4 for further information.
Remote Activity LED (RLED)
These pins provide a remote LED device activity indicator (Pin 13 = Cathode,
Pin 14 = Anode).
Factory Reserved Pins
These pins are reserved for factory use only - Do not install jumper under any
circumstances!
Activity Indicator
Pin 13 is used for host connection (cable not included) to the Activity Indica-
tor. Some SATA drives/host controllers provide support for the Activity
Indicator feature (refer to the SATA drive/host controller manufacturer's docu-
mentation for further information).
Installation
1. Carefully insert the drive into the carrier. Slide the drive towards the
Drive Carrier Board, so that the I/O connector on the drive mates with the
connector on the Drive Carrier Board. Turn the drive/carrier assembly over.
JP1
Red Cable
Black Cable
(connect to
drive activity on
drive)

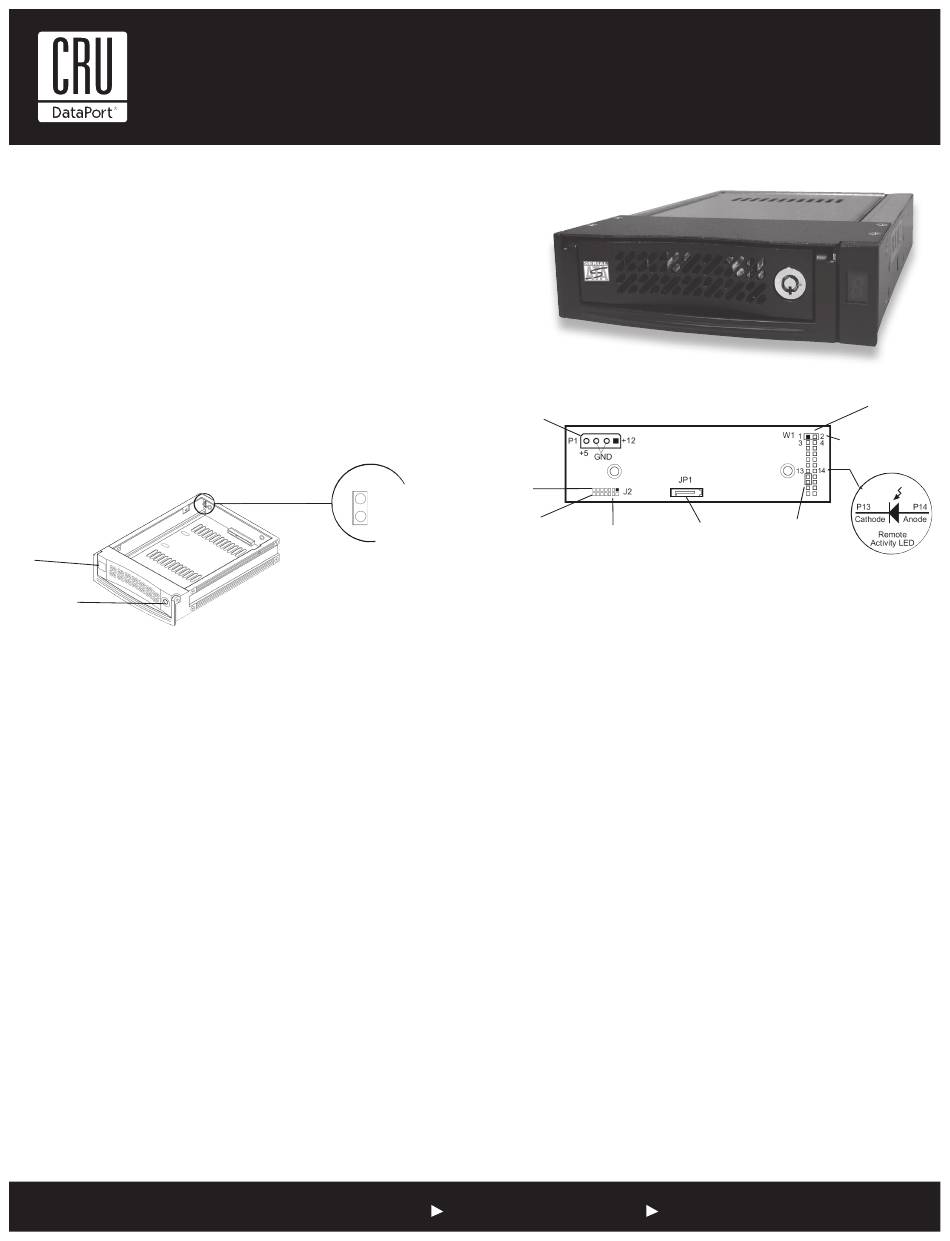

Figure 1: Drive Carrier
Rugged, Reliable, Mobile, Secure
DC Power
Connector (P1)
Activity
Indicator
(Pin 13)
Reserved
(Pin 14)
Factory Reserved Pins
(J2 - no jumper installed)
2. Fasten the drive into place with four (4) #6-32 Phillips Flat Hd. screws.
Some drives may require minor adjustment before securing into carrier with
screws. If drive supports the Activity Indicator feature, connect one end of
the Activity Indicator Cable (provided) to the drive and the other end to JP1
located on Drive Carrier Board (Figure 1).
NOTE: Some SATA drives/host controllers provide support for the
Activity Indicator feature (refer to the SATA drive/host controller
manufacturer's documentation for further information). There are two
ways to utilize the Activity Indicator:
a. Drive connection (cable included) to JP1 located on Drive Carrier
Board (Figure 1).
or
b. Host connection (cable not included) to J2 Pin 13 located on
Receiving Frame Motherboard (Figure 2).
3. Install the provided drive cover.
Spacer Plates (optional)
The SATA DE110 is designed to fit most computer systems with standard
5.25" peripheral slots. The installation of the spacer plates (provided) may or
may not be necessary.
NOTE: Depending on the computer system, spacer plates may be
positioned on the receiving frame to utilize either top or bottom row of
side-mounting holes.
1-800-260-9800
Option Pin
Connector (W1)
Factory
I/O Connector
Installed
(JP1)
Jumper
Figure 2: Receiving Frame
Motherboard (Rear View)
www.CRU-DataPort.com
TM
Factory Installed
Jumper
