Vanderbilt VR20M-MF Application Note

VR20M-MF/
VR50M-MF

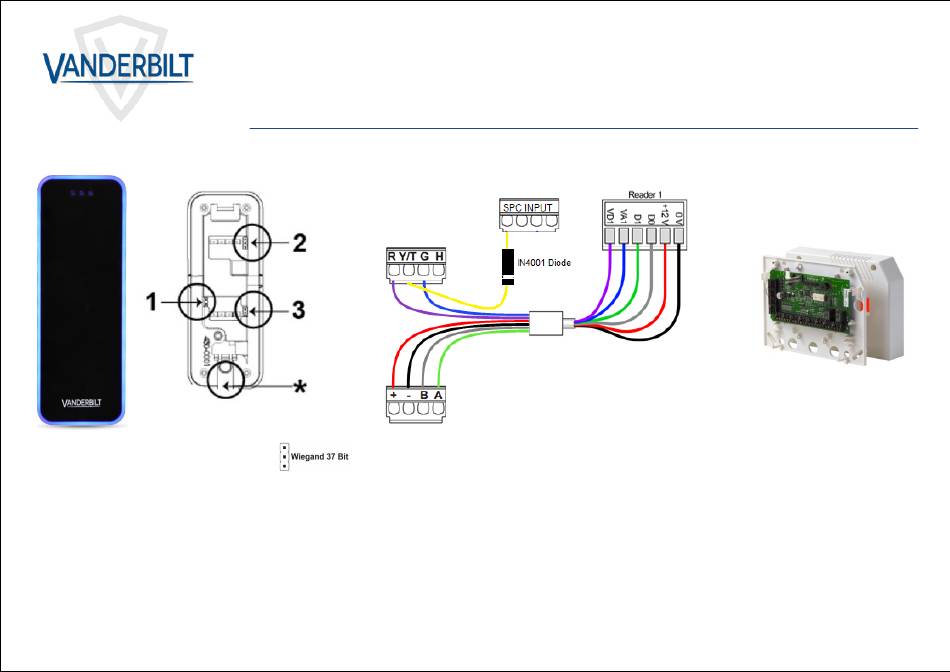

Configuration of VR20M-MF/VR50M-MF - Mifare:
-> 1 remove Jumper
-> 2 remove Jumper for Wiegand 37 bit
-> 3 remove Jumper (in Wiegand mode EOL is not fitted)
* This indicates the bottom of the reader
Please note!
- On page 14 and 15 from manual 0 and 12V are switched
- do not wire the horn output
- (optional) Y/T Terminal is for Tamper, use therefore a zone input and configure it for 1K
EOL and define the input as a tamper zone type.
Use a IN4001 diode in series with the input, with the anode pointing towards the SPC input.
VR20M-MF/VR50M-MF - Mifare connected to SPCA210.100 via
Wiegand 37 bit
SPC
Application note
TCC-2020-049_VR20-VR50-to-SPCA210.100-via-Wiegand-37bit_334_02_EN
Configuration in SPC via web browser:
→ Configuration
→ Doors
→ Location – click on Door controller
→ Select reader profile by affected reader
interface –> „AR618X"
→ Configuration
→System
→ System options
→ Door
→ Card Formats – Edit -> check all card formats
SPCA210.100
