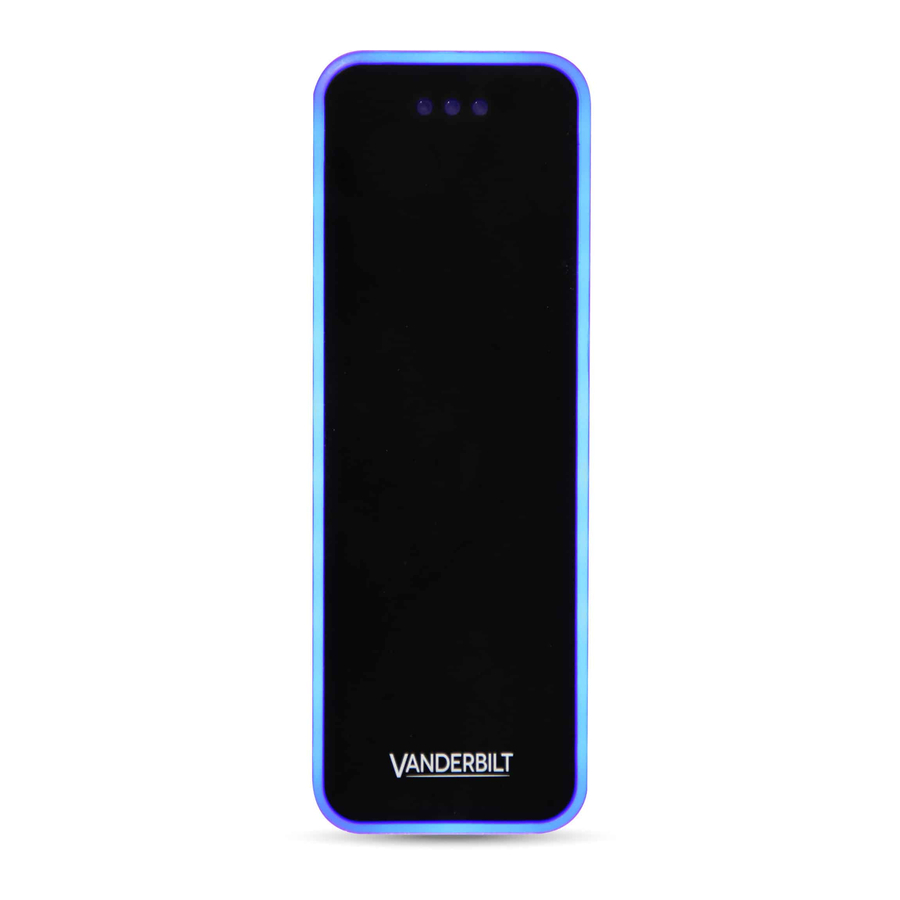

Vanderbilt VR20M-MF User Manual

Mullion reader
Hide thumbs Also See for VR20M-MF:
Table of Contents

Advertisement

Quick Links

Mullion Reader
User Manual
Document ID: A-100410
Edition date: 21.06.2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VR20M-MF and is the answer not in the manual?

Questions and answers

Related Manuals for Vanderbilt VR20M-MF

Summary of Contents for Vanderbilt VR20M-MF

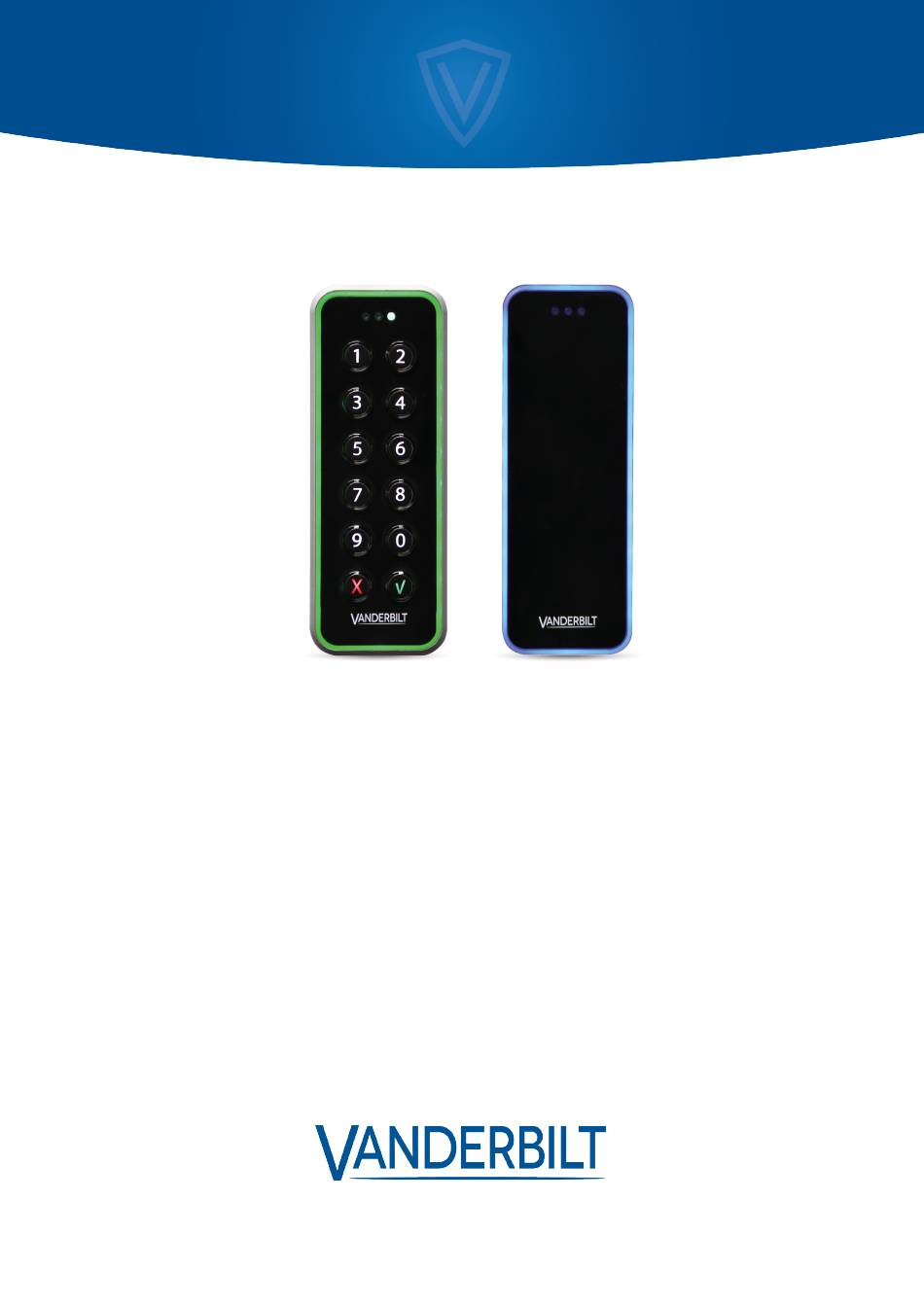

  • Page 1 Mullion Reader User Manual Document ID: A-100410 Edition date: 21.06.2018...
  • Page 2 Data and design subject to change without notice. / Supply subject to availability. © 2018 Copyright by Vanderbilt We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights and undertakes not to publish the document nor the subject thereof in full or in part, nor to make them available to any third party without our prior express written authorization, nor to use it for any purpose other than for which it was delivered to him.

  • Page 3: Table Of Contents

    Table of Contents 1 Introduction 2 Technical data 3 Safety regulations 3.1 Standards and guidelines 4 Reader components and package contents 4.1 Reader components 4.2 Package contents 5 Mounting and connecting 5.1 Mounting a reader 5.2 Mounting a reader with cables fed from the side 5.3 Connecting the cables 5.3.1 Setting the jumpers 5.3.2 Connecting the reader in OSDP mode...

  • Page 4: Introduction

    The readers can be cleaned with most kinds of domestic detergents. All readers have a multicolour light frame. The VR50M-MF has a keypad for pin code. A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 5: Technical Data

    2 Technical data VR20M-MF Mifare card reader VR50M-MF Mifare card reader standard standard with keypad Protocol OSDP or Wiegand OSDP or Wiegand Interface to controller RS485 or Wiegand RS485 or Wiegand Operating voltage 8.5 – 30.0 VDC 8.5 – 30.0 VDC...
  • Page 6 Mullion Reader – User Manual Technical data Cable length guide OSDP Max. 8 readers Max. 1 km Belden cable Wiegand Max. 4 readers Max. 30m copper cable (0.5 mm) A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 7: Safety Regulations

    Use only spare parts and accessories that have been approved by the manufacturer. 3.1 Standards and guidelines European directives Vanderbilt hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC on Electromagnetic Compatibility (EMC).

  • Page 8: Reader Components And Package Contents

    The following diagrams identify the reader components and the contents that come packaged with the reader. 4.1 Reader components Location where cables can come Front through the back Hook Tamper base Base Screw for tamper protection Gasket Mounting holes Upper and lower terminal block Knock outs x 2 locations A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 9: Package Contents

    Reader components and package contents 4.2 Package contents + - B A terminal block for OSDP and Wiegand (lower terminal block) R Y/T G H terminal block for Wiegand (upper terminal block) Mounting screws Cover screw Opening tool A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 10: Mounting And Connecting

    3. If tamper protection is required, fix the screw into the hole on the tamper base. Do not over tighten the screw as this can damage the tamper base. 4. Continue to follow the instructions detailed in Connecting the cables on page 13. A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 11: Mounting A Reader With Cables Fed From The Side

    4. Remove the corresponding knockout on the cover. 5. Attach the base to the wall with three screws: one in the middle at the top of the base and one in each of the corners at the bottom of the base. A-100410 © Vanderbilt 2018 21.06.2018...
  • Page 12 7. Feed the cables through the opening and reinsert the gasket. Proceed to the instructions for Connecting the cables on the next page. Vanderbilt recommends sealing the gap that the knock out creates with a sillicone sealant. Do this after you have closed the reader. Please note that a reader with a removed knock out is not IP 55.

  • Page 13: Connecting The Cables

    The diagrams below show how to position the jumpers to get the desired functions from the terminal blocks. Note that the EOL is ON for a sole reader or for the last reader on the RS485 bus. A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 14: Connecting The Reader In Osdp Mode

    3. Gently push the terminal block towards the base until it clicks. 4. Push the cables back. 5. On the reverse of the front plate there is an EOL jumper used for RS485 bus termination (see the A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 15: Connecting The Reader In Wiegand Mode

    Yellow input to the reader . The Tamper output/ Yellow input options are mutually exclusive. 3. Insert the ridge on the end of the upper or lower terminal block into the corresponding slot. A-100410 © Vanderbilt 2018 21.06.2018...
  • Page 16 5. Remove the EOL jumper (see number 3 in section 6.1 in Connecting the cables on page 13). The EOL jumper is used for RS485 bus termination. By default the reader has the termination ON. EOL is always off in Wiegand mode. A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 17: Closing The Reader

    2. Gently press in the bottom of the reader front until the snap lock confirms a secure attachment. 3. Screw the cover screw (see number 4 in Package contents on page 9) into the bottom of the reader. A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 18: Disassembling The Reader

    3. Use the opening tool to pull the reader outwards and upwards. 4. When the front of the reader is disconnected from the snap lock, lift the front and slide upwards to disengage from the hook at the top. A-100410 © Vanderbilt 2018 21.06.2018...
  • Page 19 Mullion Reader – User Manual Disassembling the reader To remove the terminal block: 1. Push down gently on the end of the terminal block marked with either +,-,B,A or R,Y/T,G,H. 2. Tilt the terminal block away from the base. A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 20: Default Settings

    Reception for card (time before the same card will be detected in the field Inactive again) Min background illumination Max background illumination Off-line indication Buzzer volume for key press Buzzer volume for card read System sound A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 21: 3Ct Tool

    For more information on 3CT please see the User manual for Configuration Card Creation Tool which is included when you purchase the 3CT tool. The readers use FreeRTOS. For further information, please visit www.freertos.org. A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 22: Setting Burst Mode Using The Keypad

    4. Hold down the ✓ key until you hear the affirmative beep. 5. To change back to 8 bit burst from 4 bit burst, follow the steps above pressing the key sequence 1818 instead of 1414. A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 23: Connecting The Card Reader To Sipass Integrated

    The connection between a card reader and a Reader Interface Module (RIM) is as follows: RIM (DRI/ERI) VRxx-MF 12 V ⃡ ⃡ Tx/+ ⃡ Rx/- ⃡ SiPass integrated can support both the VR and NGCR readers on the same OSDP bus. A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 24: Setting Osdp Address For The Card Reader

    5 is removed and a new card reader is installed, the new card reader gets address 5. 9.3 Connecting the card reader to SiPass integrated in Wiegand mode For more detail on connecting the card reader to SiPass integrated via Wiegand see section 5.3.3 in Connecting the cables on page 13 A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 25: Connecting The Card Reader To Act

    ACTpro 1520e can support both the VR and NGCR readers on the same OSDP bus. The connection between a card reader and an ACTpro 1520e is as follows: ACTpro 1520e VRxx-MF +12/24 V ⃡ OSDP/NET 0V ⃡ OSDP/NET A ⃡ OSDP/NET B ⃡ A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 26: Setting The Osdp Address For The Card Reader

    2 should be removed for OSDP operation. The serial number of the reader is used to identify and enrol a reader on the system . This can be found on a sticker on the reverse of the front cover of the reader (bordered in red in the image below). A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 27: Connecting The Card Reader To Act In Wiegand Mode

    Please note that if you are connecting an exit reader in Wiegand mode, you should wire the D0 from the reader to SENSE on the ACTpro 1520e (bordered in red on the image on the next page). A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 28: Connecting The Card Reader To Spc

    11 Connecting the card reader to SPC The SPC connection to a Mullion reader is via Wiegand. For more detail on connecting via Wiegand see section 5.3.3 in Connecting the cables on page 13 A-100410 © Vanderbilt 2018 21.06.2018...

  • Page 29: Disposal

    It is a precondition for reuse and recycling of used electrical and electronic equipment. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service, or the shop where you purchased the product. A-100410 © Vanderbilt 2018 21.06.2018...
  • Page 30 © Vanderbilt 2018 Data and design subject to change without notice. Supply subject to availability. Document ID: A-100410 Edition date: 21.06.2018 Issued by Vanderbilt International Ltd. Clonshaugh Business and Technology Park vanderbiltindustries.com Clonshaugh, Dublin D17 KV 84, Ireland @VanderbiltInd Vanderbilt Industries...

This manual is also suitable for:

Vr50m-mf
