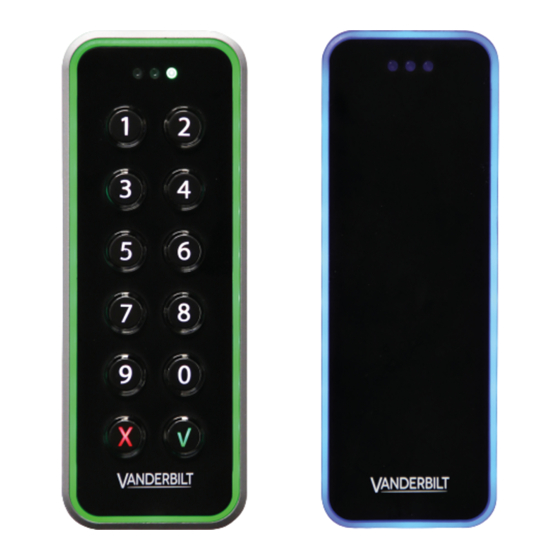

Vanderbilt VR50M-MF Installation Manual
Hide thumbs Also See for VR50M-MF:
Table of Contents

Advertisement

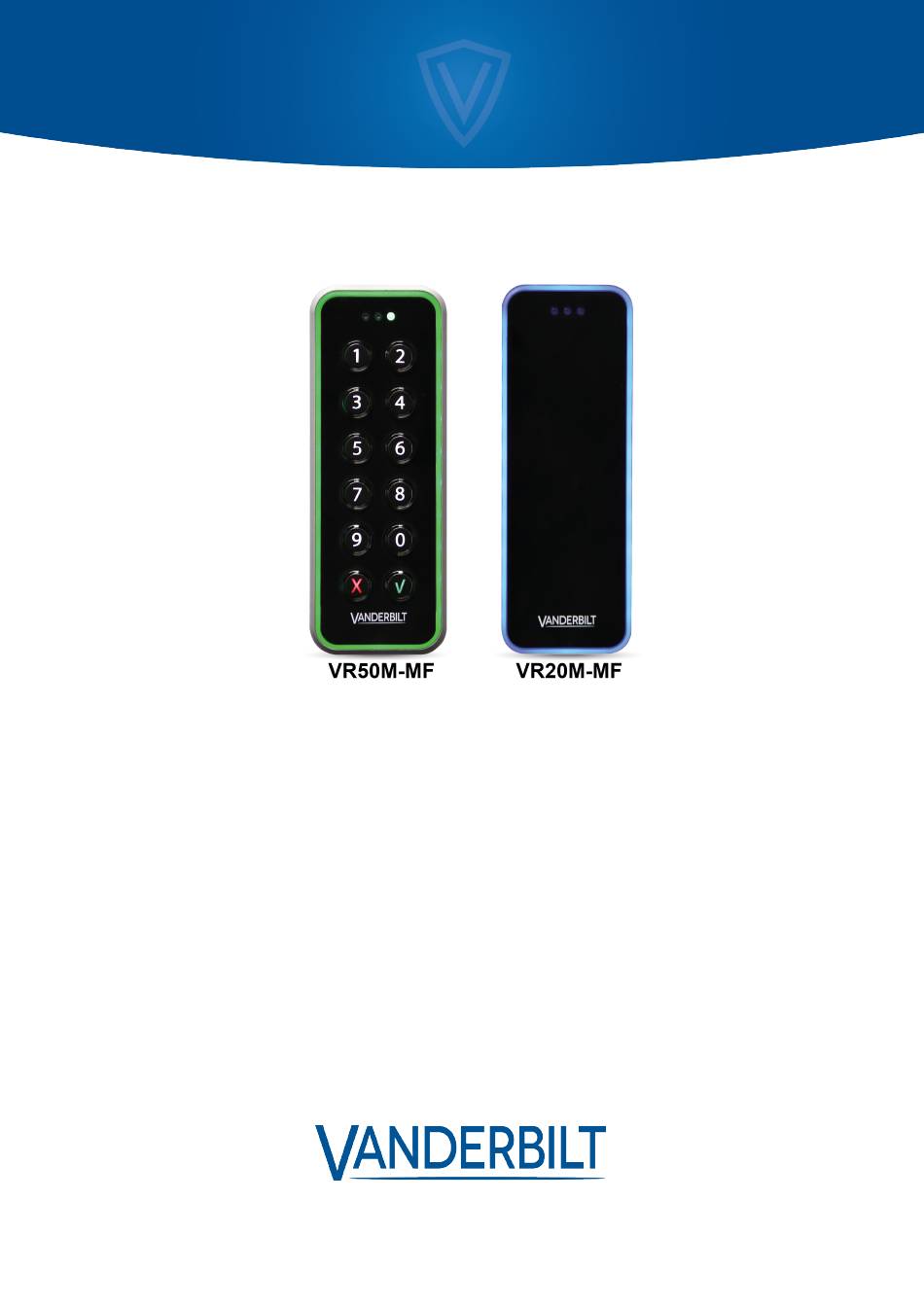

Mullion Reader VR20 VR50
Installation Manual
Document ID: A-100410-d
Edition date: 12.02.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VR50M-MF and is the answer not in the manual?

Questions and answers

Summary of Contents for Vanderbilt VR50M-MF

  • Page 1 Mullion Reader VR20 VR50 Installation Manual Document ID: A-100410-d Edition date: 12.02.2021...
  • Page 2 MIFARE DESFire are registered trademarks of NXP B.V. and are used under license. Hereby, Vanderbilt International (IRL) Ltd declares that this equipment type is in compliance with the following EU Directives for CE marking: • Directive 2014/30/EU (Electromagnetic Compatibility Directive) •...
  • Page 3: Table Of Contents

    Table of Contents 1 Introduction 2 Technical data 2 Compliance 2.1 IEC/EN60839-11 compliance 2.2 UL compliance 2.3 FCC statement 3 Safety regulations 4 Reader components and package contents 4.1 Reader components 4.2 Reader Components 5 Mounting and connecting 5.1 Mounting a reader 5.2 Mounting a reader indoors (IP54) 5.3 Mounting a reader outdoors (IP55) 5.4 Mounting a reader outdoors (IP66)
  • Page 4 9.1 Connecting the reader to SiPass integrated in OSDP mode 9.2 Setting OSDP address for the reader 9.3 Connecting the reader to SiPass integrated in Wiegand mode 10 Connecting VR20/VR50 readers to ACT 10.1 Connecting a single reader to ACT in OSDP mode 10.2 Connecting multiple readers to ACT in OSDP mode 10.3 Setting the jumpers for OSDP mode 10.3.1 Setting the OSDP address for the reader...
  • Page 5: Introduction

    The readers are made of hard wearing materials and will endure most weather conditions. The readers are easy to mount and can be mounted on a flat surface. The readers can be cleaned with most kinds of domestic detergents. All readers have a multicolour light frame. The VR50M-MF has a keypad for PIN code.
  • Page 6: Technical Data

    Surface mounted: 48 x 129 x 24 Weight 219g 225g Serviceable parts None None EN50131-3:2009, Grade 3, EN50131-3:2009, Grade 3, Class III Class III Standards SSF1014:5, Grade 3, Class III SSF1014:5, Grade 3, Class III A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 7 Mullion Reader VR20 VR50 – Installation Manual Technical data Cable length guide Mode Max. Cable Length Cable Screened twisted pair (For OSDP 1 km. example; Belden 9501) Screened multicore (For Wiegand example; Belden 9538) A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 8: Compliance

    (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the User`s authority to operate the equipment. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 9: Safety Regulations

    Please consider any additional country-specific, local laws, safety standards, or regulations concerning installation, operation, and disposal of the product. Liability claim Do not make any changes or modifications to the device. Use only spare parts and accessories that have been approved by the manufacturer. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 10: Reader Components And Package Contents

    4.1 Reader components Front Tamper base Knockouts x 2 Screw for tamper protection Base Mounting holes Hook Upper and lower terminal block locations Location where cables can come through the back 4.2 Reader Components Package contents A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 11 A B - +terminal block for OSDP and Wiegand (lower terminal block) R Y/T G H terminal block for Wiegand (upper terminal block) Mounting/Tamper screws Cover screw Opening tool IP 55 Foam backing for outdoor installation IP 66 Gasket for outdoor installation A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 12: Mounting And Connecting

    The reader is automatically tamper protected when removing the front of the reader from the reader base with the help of the opening tool. The wall removal tamper is an additional protection against physical attacks. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 13: Mounting A Reader Outdoors (Ip55)

    The reader is automatically tamper protected when removing the front of the reader from the reader base with the help of the opening tool. The wall removal tamper is an additional protection against physical attacks. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 14: Mounting A Reader Outdoors (Ip66)

    5.5 Mounting a reader with cables fed from the side Warning Mounting the unit with the cable led in from either side through knockout gaps does not comply with the folowing standards: UL 294, IP55, IP66 A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 15 1. Remove the gasket from the base. 2. Identify which of the knockouts the cables should be fed through. 3. Use a pliers to pull the knockout away from the base. 4. Remove the corresponding knockout on the cover. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 16 7. Feed the cables through the opening and reinsert the gasket. Follow the instructions for Connecting the cables on the next page. Vanderbilt recommend sealing the gap that the knockout creates with a silicon sealant. Do this after you have closed the reader.
  • Page 17: Connecting The Cables

    Use the terminal blocks marked AB-+ and RY/TGH (see item 1, item 2 in Reader Components on page 10) and a twisted screened multicore cable (4 pairs + screen) such as Belden 9538 to connect the reader in A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 18 The buzzer is activated by setting the horn input low. The buzzer is deactivated by setting the horn input high. 3. Insert the ridge on the end of the upper or lower terminal block into the corresponding slot. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 19 EOL. By default the reader has EOL ON. EOL is always off in Wiegand mode. Please note that you must set the Jumpers to configure your application. For more information on setting the Jumpers in Wiegand mode see Setting the Jumpers for Wiegand on page 21. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 20: Setting The Jumpers

    The diagrams below show how to position the Jumpers to get the desired functions from the terminal blocks. Note that the EOL is ON for a sole reader or for the last reader on the RS485 bus. Jumper 1 A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 21: Setting The Jumpers For Wiegand

    For more information, please refer to: Reverse mode Wiegand on page 23. If the existing installation uses 26 Bit Wiegand, you must follow the additional procedure to program the reader to transmit in Reverse Mode 26 Bit Wiegand. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 22 The diagrams below show how to position the Jumpers to get the desired functions from the terminal blocks. Note that in Wiegand mode EOL is not fitted. Wiegand can be set at 32 bit, 37 bit, or 56 bit. Jumper 1 Jumper 1 is OFF to select Wiegand. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 23: Reverse Mode Wiegand

    Reverse Mode 26 Bit Wiegand. For more information, see Programming a Reverse mode transmission reader for 26 Bit Wiegand on the facing page. Only one of the two modes may be configured at a time. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 24: Programming A Reader For Reverse Mode Transmission

    5.12 Programming a Reverse mode transmission reader for 26 Bit Wiegand The reader may programmed into 26 Bit Wiegand mode as follows; 1. Connect Red input to the Tamper 2. Put J2 in the lower position. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 25: Re-Programming A Reverse Mode Transmission Reader Away From 26 Bit Wiegand

    Standard Wiegand transmission mode Wiegand bit mode dependent on Jumper 2 ACT MIFARE card printed number on card DESfire UID. 5.13.1 37 Bit Wiegand. 37 Bit Wiegand operation is compatible with ACT MIFARE / DESfire readers. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 26: Closing The Reader

    If you are using the IP66 gasket, hold the tab at the bottom of the IP66 gasket clear of the reader while closing. After closing the reader, press the tab up into the correct sealed position. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 27: Disassembling The Reader

    1. Remove the cover screw. 2. Insert the opening tool in the slot between the base and the front and push gently upwards. 3. Use the opening tool to pull the reader outwards and upwards. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 28: To Remove The Terminal Block

    4. When the front of the reader is disconnected from the snap lock, lift the front and slide upwards to disengage from the hook at the top. 7.2 To remove the terminal block: 1. Push the terminal block gently away from the cable entry hole. 2. Tilt the terminal block away from the base. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 29: Default Settings

    Wiegand options to be used for the card readers. For further information, please contact Vanderbilt International Ltd.. The 3CT tool configures the format in which user cards are interpreted by the card reader. The 3CT tool supports configuration of the following options: Tamper Output / Yellow Input and Heart beat Mode.
  • Page 30: Setting Burst Mode Using The Keypad

    3. Hold down the ✓ key until you hear the two-tone affirmative beep. 4. To change back to 4 bit burst from 8 bit burst, follow the steps above pressing the key sequence1414 instead of 1818. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 31: Connecting The Reader To Sipass Integrated

    9.1 Connecting the reader to SiPass integrated in OSDP mode SiPass integrated RIM (DRI/ERI) Power and A, B (OSDP) Reader 1 (VR50M-MF Mullion reader with keypad) Reader 2 (VR20M-MF Mullion reader) Reader 3 (VR40S-MF MIFARE Reader with keypad and display)
  • Page 32: Connecting The Reader To Sipass Integrated In Wiegand Mode

    5 is removed and a new reader is installed, the new reader gets address 5. 9.3 Connecting the reader to SiPass integrated in Wiegand mode For more detail on connecting the reader to SiPass integrated via Wiegand see Connecting the reader in Wiegand mode on page 17. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 33: Connecting Vr20/Vr50 Readers To Act

    Set the End Of Line (EOL) jumper on the ACT pro controller as shown. Wire the connections between a VR series reader and an ACTpro 1520 controller as follows: VRxx-MF - AB-+ Terminal ACTpro 1520 block +12/24 V 0V/GND A (OSDP/NET block) B (OSDP/NET block) A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 34: Connecting Multiple Readers To Act In Osdp Mode

    Set the End Of Line (EOL) jumper on the ACT pro controller as shown. Wire the connections between the VR series readers and an ACTpro 1520 controller as follows: VRxx-MF - AB-+ Terminal ACTpro 1520 block +12/24 V 0V/GND A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 35: Setting The Jumpers For Osdp Mode

    In the OSDP reader section of the ACTPro Software use the auto-discovery function to find the readers. During installation: Record the 7 digit serial number. Record the door name. Record if a reader is an entry or exit reader. A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 36: Connecting An Entry Reader To Act In Wiegand Mode

    For more information on how to correctly locate and fit the terminal blocks, see Connecting the cables on page 17. Cable length guide Mode Max. Cable length Cable Screened twisted pair (For OSDP 1 km. example; Belden 9501) A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 37: Connecting An Entry And An Exit Reader To Act In Wiegand Mode

    R Y/T G H Terminal block ACTpro-15xx GREEN Connect Exit reader to ACTpro-15xx controller Wire the connections between an Exit reader and an ACTpro-15xx controller as follows: AB-+ Terminal block ACTpro 1520 SENSE CLOCK/D1 0V/GND +12/24 V A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 38: Set The Jumpers For Wiegand Mode

    Jumper 1 OFF Jumper 2 ON top 2 links (32-bit) Jumper 2 ON top 2 links (32-bit) Jumper 3 OFF Jumper 3 OFF Cable length guide Mode Max. Cable length Cable Screened multicore (For Wiegand 30m. example; Belden 9538) A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 39: Connecting The Vr Series Reader To Spc

    SPCA210 door controller SE1190 OSDP interface DP51 Reader jumper settings Jumper 1 ON Jumper 2 OFF Jumper 3 ON Cable length guide Mode Max. Cable Length Cable OSDP 500m. Screened twisted pair (For example; Belden 9501) A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 40: Connecting A Reader To An Spca210 In Wiegand Mode

    SPCA210 door controller AB-+ Terminal block Reader 1 block +12V SPCA210 door controller R Y/T G H Terminal block Reader 1 block Reader jumper settings Jumper 1 OFF Jumper 2 ON top 2 links Jumper 3 OFF A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 41: Connect 2 Readers In Wiegand Mode To An Spca210 Door Controller

    You can connect 2 VR series reader in Wiegand mode directly to an SPCA210 door controller. Reader 1 wiring SPCA210 door controller AB-+ Terminal block Reader 1 block +12V SPCA210 door controller R Y/T G H Terminal block Reader 1 block A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 42 Reader 1 and Reader 2 jumper settings Jumper 1 OFF Jumper 2 ON top 2 links Jumper 3 OFF Cable length guide Mode Max. Cable length Cable Screened multicore (For Wiegand 30m. example; Belden 9538) A-100410-d © Vanderbilt 2021 12.02.2021...
  • Page 43 © Vanderbilt 2021 Data and design subject to change without notice. Supply subject to availability. Document ID: A-100410-d Edition date: 12.02.2021 Issued by Vanderbilt International Ltd. Clonshaugh Business and Technology Park vanderbiltindustries.com Clonshaugh, Dublin D17 KV 84, Ireland @VanderbiltInd Vanderbilt Industries...
