Installation, Operating Instructions & Quick Guide
INSTALLATION NOTES
• Always remember to factory default the controller before you start programming.
• Always remember to place the supplied Varistor across the terminals of the door strike
coil to protect the relay contacts.
• Never use the onboard relay to switch AC mains voltage.
An external relay isolated electrically from the ACT5 should be used for this purpose.
• Don't forget to change the programming code to something known only to yourself.
IMPORTANT
As with any access control system, always ensure that there is an alternate means of escape
in the event of the unit failing to operate due to power loss or in the event of fire.

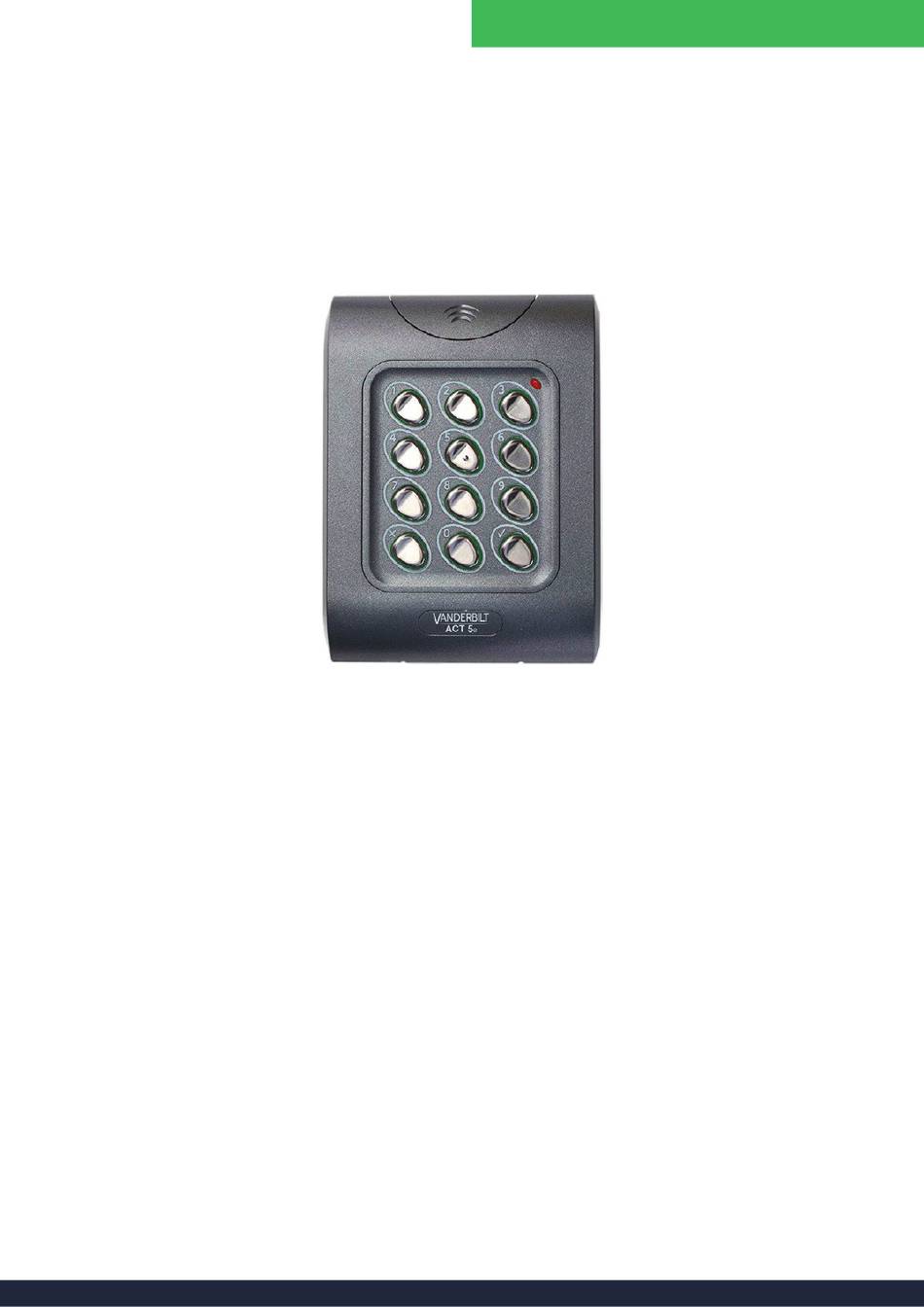

ACT 5 DIGITAL KEYPAD
ACCESS CONTROL
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vanderbilt ACT 5
Summary of Contents for Vanderbilt ACT 5
- Page 1 ACCESS CONTROL ACT 5 DIGITAL KEYPAD Installation, Operating Instructions & Quick Guide INSTALLATION NOTES • Always remember to factory default the controller before you start programming. • Always remember to place the supplied Varistor across the terminals of the door strike coil to protect the relay contacts.
- Page 2 ACCESS CONTROL ACT5 Digital Keypad Programming To enter programming mode: Press the X button followed by the engineering code (initially all 9999) The LED will flash Amber while in programming mode . If X is pressed at any time or no key is pressed within 30 seconds, programming mode is exited. Changing Codes (from programming mode): Enter 0 (Change codes)
- Page 3 ACCESS CONTROL 30 Second Programming Guide (for typical system) 1. Enter Programming Mode. Press X button followed by the programming code (9999). The LED will flash Amber. 2. Change User 1 code. Press 0, then 1 followed by the new user 1 code (four digits). 3.
