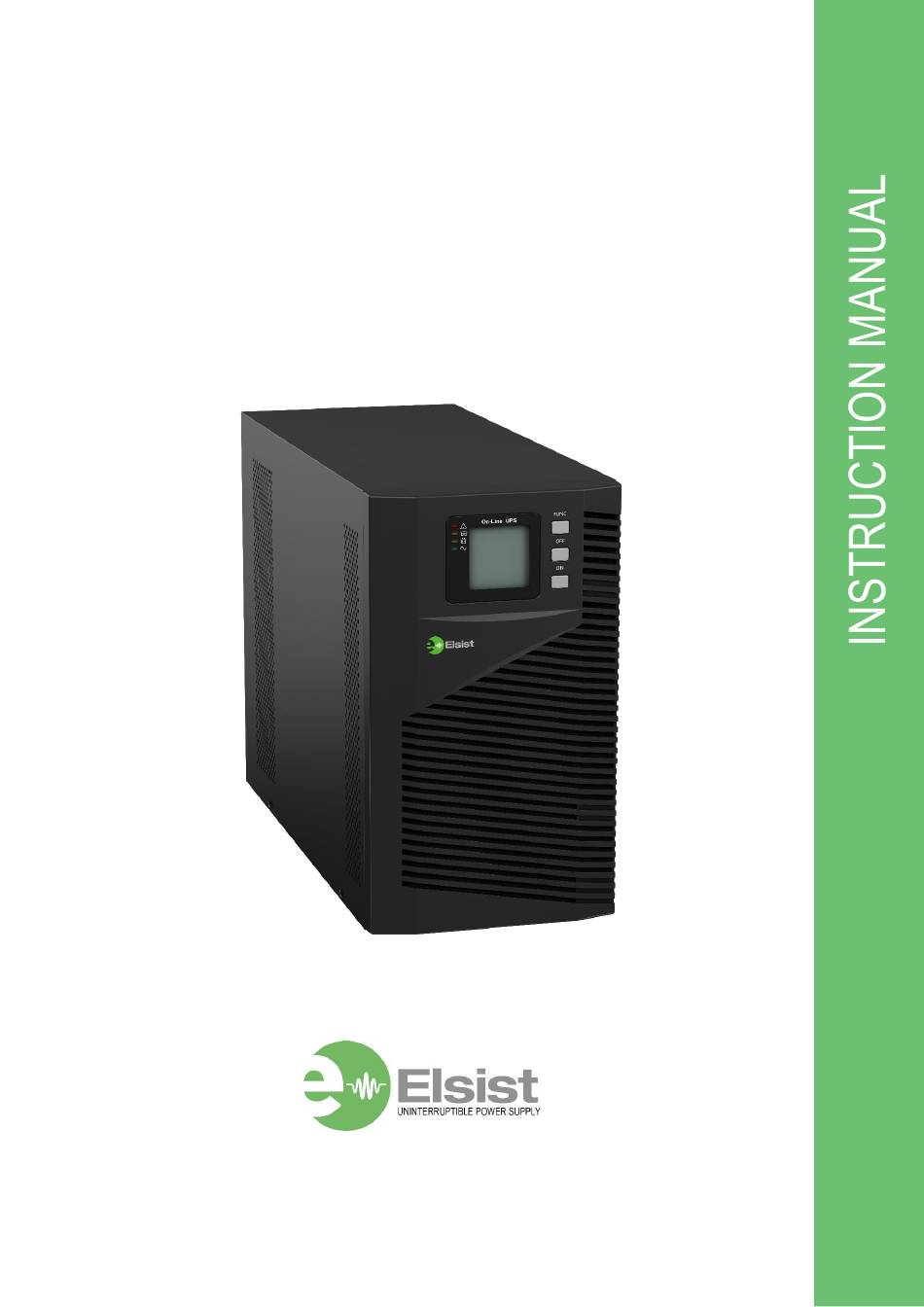

- Page 1 MISSION 1000 MISSION 2000 MISSION 3000...
-
Page 2: Table Of Contents
MISSION 1K●2K●3K SINGLE PHASE Table of Contents Important Safety Warning ........................3 Transportation ..........................3 Preparation ............................ 3 Installation ............................. 3 Operation ............................4 Maintenance, service and faults ....................4 Symbols used in this guide ...................... 4 Installation and setup ..........................5 Unpack checking ......................... -
Page 3: Important Safety Warning
MISSION 1K●2K●3K SINGLE PHASE 1. Important Safety Warning Important safety instructions – Save these instructions Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully There exists dangerous voltage and high temperature inside the UPS. -
Page 4: Operation
MISSION 1K●2K●3K SINGLE PHASE 1-4 Operation ⚫ Do not disconnect the mains cable on the UPS system or the building wiring outlet (shockproof socket outlet) during operations since this would cancel the protective earthing of the UPS system and of all connected loads. ⚫... -
Page 5: Installation And Setup
UPS if any damage found. Please contact the dealer right away. ⚫ Check the accessories according to the packing list and contact the dealer in case of missing parts. 2-2 Real panel view MISSION 1000 MISSION 2000-3000 1) Input socket 2) Net sourge protection... -
Page 6: Lcd Control Panel
MISSION 1K●2K●3K SINGLE PHASE 2-3 LCD control panel LCD control panel introduction （1）LED（from top to bottom: “alarm”, “bypass”, “battery”, “inverter”） （2）LCD display（3）Select button & enter to next item（4）OFF button（5）ON button 2-4 Setup the UPS Step 1: UPS input connection Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords. -
Page 7: Operations
MISSION 1K●2K●3K SINGLE PHASE NOTE: USB port and RS-232 port can’t work at the same time. Step 4: Turn on the UPS Press the ON button on the front panel for two seconds to power on the UPS. Note: The battery charges fully during the first five hours of normal operation. Do not expect full battery run capability during this initial charge period. -
Page 8: Lcd Display
MISSION 1K●2K●3K SINGLE PHASE in UPS setting mode. ➢ Switch LCD message: Press this button to change the LCD message for input voltage, input frequency, battery voltage, output voltage and output frequency etc. ➢ Mute the alarm: When the UPS is on battery mode, FUNC/Mute press and hold this button for at least 2 seconds to disable or enable the alarm system. - Page 9 MISSION 1K●2K●3K SINGLE PHASE Output voltage Load Temperature (EnvironmentTemperatu Firmware Version & UPS model.
-
Page 10: Ups Setting
MISSION 1K●2K●3K SINGLE PHASE CODE (Operational status and mode) Alarm Code(Warming Message) All alarm codes are present when abnormal behavior(s) occur(s) 3-3 UPS setting The setting fuction is controled by 3 buttons (Func,Off/up ▲, On/down▼): Func +Off/up ▲---goes into the setting page, Func --- value adjustment; Off ▲ & On ▼---for choosing different pages. - Page 11 MISSION 1K●2K●3K SINGLE PHASE Item Settings Content display Mode setting Press FUNC button to change the setting (NOR or ECO or CF). Press OFF button ▲ to select the previous setting. Press ON button ▼ to select the next setting. Output voltage setting Press FUNC button to change the setting ( 208，220, 230, 240).
- Page 12 MISSION 1K●2K●3K SINGLE PHASE EOD voltage setting Press FUNC button to change the setting (160/167/175/180.) Default setting： 175(1.75V /cell) Press OFF button ▲ to select the previous setting. Press ON button ▼ to select the next setting Bypass voltage upper limit setting Press FUNC button to change the setting (The bypass voltage upper...
-
Page 13: Operating Mode Description
MISSION 1K●2K●3K SINGLE PHASE BYPASS enable/disable setting Press FUNC button to change the setting (ON or OFF). Press OFF button ▲ to select the previous setting. Press ON button ▼ to select the next setting. Generator mode setting Press FUNC button to change the setting (on or off) The factory default is: OFF, need to be manually set after the generator... -
Page 14: Operational Status And Mode(S)
MISSION 1K●2K●3K SINGLE PHASE 3-5 Operational Status and Mode(s) item Content Displayed Standby Mode No Output Bypass Mode Utility Mode Battery Mode Battery Self-diagnostics Inverter is starting up ECO Mode EPO Mode Maintenance Bypass Mode Fault Mode Mode Generator 3-6 Alarm or Fault reference code Event log UPS Alarm Warning Buzzer... -
Page 15: Troubleshooting
MISSION 1K●2K●3K SINGLE PHASE No battery Once per second Battery LED blinking Battery under voltage Once per second Battery LED blinking Battery low pre-warning Once per second Battery LED blinking Over load time out Once per 2 seconds Fault LED blinking DC component over limit. -
Page 16: Storage And Maintenance
MISSION 1K●2K●3K SINGLE PHASE shut down Check output wiring and if Alarm code is shown as “29” and automatically because short connected devices are in FAULT led light. circuit occurs on the UPS short circuit status. output. Alarm code is shown as “9” and Contact your dealer. -
Page 17: Options
MISSION 1K●2K●3K SINGLE PHASE 6. Options SNMP card: internal SNMP (Options) ◆Loosen the 2 torquescrews (on each side of thecard). ◆Carefully insert the SNMP card and lock the screws The slot called SNMP supports the MEGAtec protocol.We advise that Net AgentII-3 port is also a tool to remotely monitorand manage any UPS system NetAgentII-3Ports supports the Modem Dial-in(PPP) function to enable the remote control via the internet when the network is unavailable. - Page 18 MISSION 1K●2K●3K SINGLE PHASE Pins definition of connecting terminal on the board Relaycard electrical parameter Type (Max Switched Voltage) AC:120V AC:120V DC:5~12V DC:24V Relaycardcontact (Max Switched Current) AC:1A AC:1A DC:1A DC:1A...
- Page 19 MISSION 1K●2K●3K SINGLE PHASE Emergency Power-off (EPO) (Options) EPO is used to shut down the UPS from a distance. This feature can be used for shutting down the load and the UPS by thermal relay, for instance in the event of room overtemperature.
-
Page 20: Specification
MISSION 1K●2K●3K SINGLE PHASE 7.Specification MODEL MISSION1000 MISSION2000 MISSION3000 Phase Single phase with ground Capacity (VA/Watts) 1000VA / 900W 2000VA / 1800W 3000VA / 2700W INPUT Nominal voltage 208/220/230/240VAC 176Vac±5% @100%-50% load; Low line 110Vac±5% @50%-0% load; transfer 186Vac±5% @100%-50% load; Low line Operating 120Vac±5% @50%-0% load;;... - Page 21 MISSION 1K●2K●3K SINGLE PHASE SYSTEM FEATURES 105%~125%: UPS transfer to bypass after 1minute when the utility is normal Line 125%~130%: UPS transfer to bypass after 30 seconds when the utility is normal Mode >130%: UPS transfer to bypass immediately when the utility is normal Overload 105%~125%: UPS after 1minute shut down;...
- Page 22 ELSIST reserves the right (in its sole discretion) to replace the components of defective products or low cost products with assembled parts or new or refurbished products.
- Page 24 Naicon srl Via il Caravaggio, 25 Trecella I 20060 Pozzuolo Martesana - Milano (Italy) Tel. +39 02 95.003.1 Fax +39 02 95.003.313 www.naicon.com e-mail: naicon@naicon.com...
