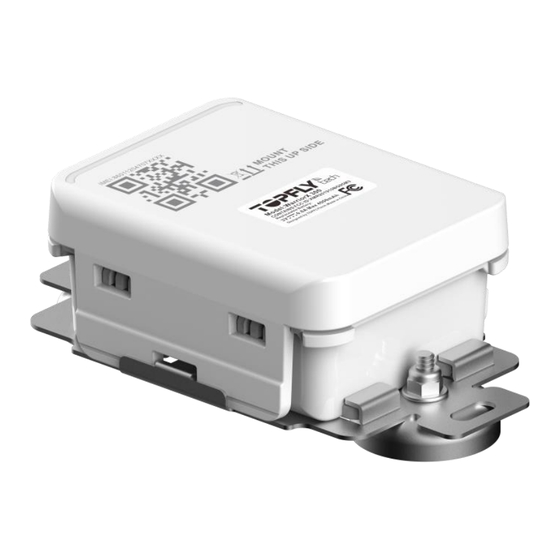

TOPFLYtech WarriorX100 Asset GPS Tracker

User Manual

20240124

Table of Contents

Need help?

Do you have a question about the WarriorX100 and is the answer not in the manual?

Questions and answers

Summary of Contents for TopflyTech WarriorX100

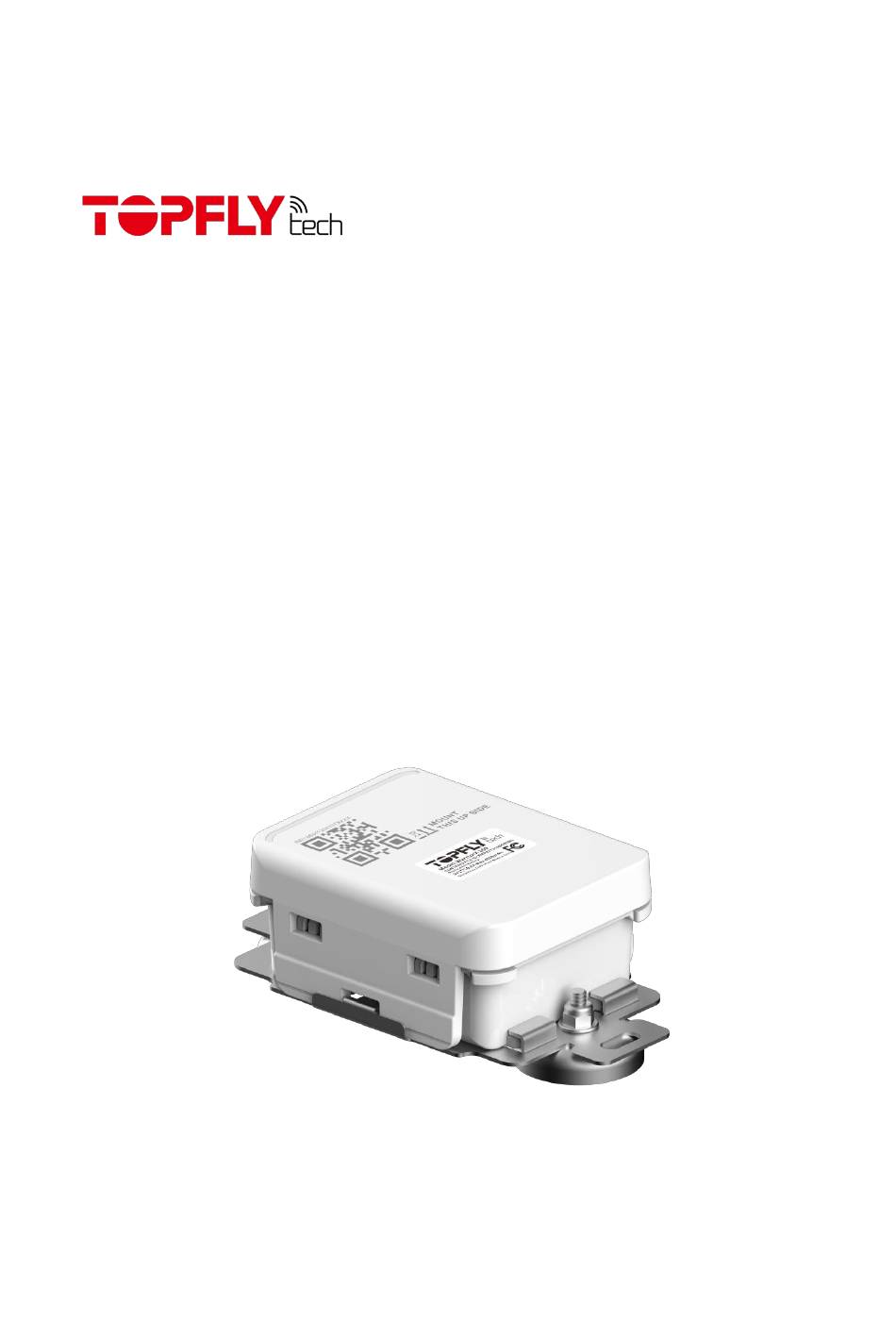

Page 1 TOPFLYtech WarriorX100 Asset GPS Tracker User Manual 20240124...
Page 2: Table Of Contents
SING THE CONFIGURATION TOOL ? ..............................20 ORGOTTEN PASSWORD SENDING COMMANDS VIA NETWORK (TCP/UDP/MQTT/DMS) ............20 DEVICE INSTALLATION ..........................20 SIMPLE TROUBLESHOOTING ........................21 WARRANTY AND STOCKING ........................23 FCC WARNING ..............................23 Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 3: Document Purpose
Document Purpose The purpose of this user manual is to provide information about the TOPFLYtech WarriorX100 asset tracking device. It covers the main features of the device and instructions for its use. TOPFLYtech may make changes to the specifications and features of this manual without prior notice.
Page 4: Acronyms And Abbreviations
• Dispose of used batteries in accordance with environmental regulations. • For configuration, use quality, certified cables. TOPFLYtech accepts no liability for damage or loss resulting from the use of unsuitable cables. • Caution! Do not incorrectly connect the wires marked red (positive power supply) and black (negative/chassis) to the wrong poles of the battery.
Page 5 SW - Single-Wire or Software or Switch TCP - Transmission Control Protocol UDP - User Datagram Protocol UMTS - Universal Mobile Telecommunications System USB - Universal Serial Bus VCOM - Virtual communication port Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 6: Reference Material
IP67-rated enclosure has made it a popular choice in a variety of sectors, including commercial transportation, heavy machinery management, logistics, shipping and more. This compact battery powered tracker, the WarriorX100, can report its position every 30 minutes (configurable), or every time it detects motion with its built-in vibration sensor. Its long life non-rechargeable battery can last for a long time is field replaceable.
Page 7: Fota (Firmware Over The Air) Notification
FOTA (firmware over the air) Notification TOPFLYtech is dedicated to ensuring that its clients enjoy the most seamless and user- friendly experience with its products and services. To achieve this, we have introduced automatic firmware updates for all our devices. This feature is designed to keep your devices up to date by automatically installing the latest firmware versions.
Page 8: Product Specifications
160g (5.65oz) Non-rechargeable 3.0V 4000mAh Battery (8000mAh battery optional) Standby Time 0.5 Year @ every 2h reporting (@ 25ºC environment 2 Years @ every 12h reporting temperature) 3 Years @ every 24h reporting Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 9: Product Overview
Scheduled Timing Report Report position and status at preset intervals Product overview Note: The indicator lights will go out automatically after the tracker is powered for 90 seconds, unless the USB cable is connected. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 10: Individual Device Id
Individual device ID Every WarriorX100 has a laser engraved table containing IMEI number both human readable and in a QR code format. Tracker operation Physical power on/off • Plug or unplug the battery connector to turn the device on or off.
Page 11: Sim Card
SIM Card The WarriorX100 is compatible with SIM cards in the Nano format. To ensure proper operation, make sure that the SIM card's data plan is enabled, that no PIN code is set and that there is sufficient balance. If you plan to use SMS commands to setup the device, make sure the SIM card plan has SMS enabled.
Page 12 If the device is in a software-controlled power-off state (the device has been powered off using the "GUANJI" command), with the SIM card already inserted and the battery connected, you can power on the device by moving the Hall switch to the 'Right' hole. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 13: Configuring The Device
Drivers can be downloaded from our FTP server. Contact TFT Support if you cannot find them. 1. On the configuration tool, click on "New Config file" 2. Select your model (in this case, WarriorX100) 3. Click "Confirm” 4. Click "Change connect port"...
Page 17 11. Click on "yes" 12. Close the configuration tool when the upload is complete. The device will reboot and will have the correct configuration installed. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 18: Using Commands
3. Heading: tracker reports when the vehicle turns every C degrees (range is 0~180, 0 means disable) 4. Distance: tracker reports when the vehicle runs every D meters (range is 0~65535, 0 means disable) Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 19: Using Commands
Changing the default password There are 2 ways to change the device’s default password. Using commands Send the following command via serial console or SMS: PASSWORD,<0000>,<new_password># The new password can have up to 10 alphanumeric characters. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 20: Using The Configuration Tool
• You can tilt the device by up to 45 degrees on any axis, but the top must remain facing upwards. • Avoid installing it near metal surfaces, moving parts or heat sources. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 21: Simple Troubleshooting
Check that the top side (with the TOP SIDE logo) is facing upwards without being covered by metal objects during installation. o Has the vehicle entered an area without satellite coverage? • Location deviation Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 22 Check the format of the command. Make sure it is correct. o The vehicle may be in a network shadow area. o Make sure the device is online or wait for it to become online. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 23: Warranty And Stocking
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT NOTICE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
Page 24 Le présent appareil est conforme Après examen de ce matériel aux conformité ou aux limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux radiofréquences et la conformité and compliance d’acquérir les informations correspondantes. La distance minimale du corps à utiliser le dispositif est de 20cm. Shenzhen TOPFLYTECH Co., Limited. All Rights Reserved...
