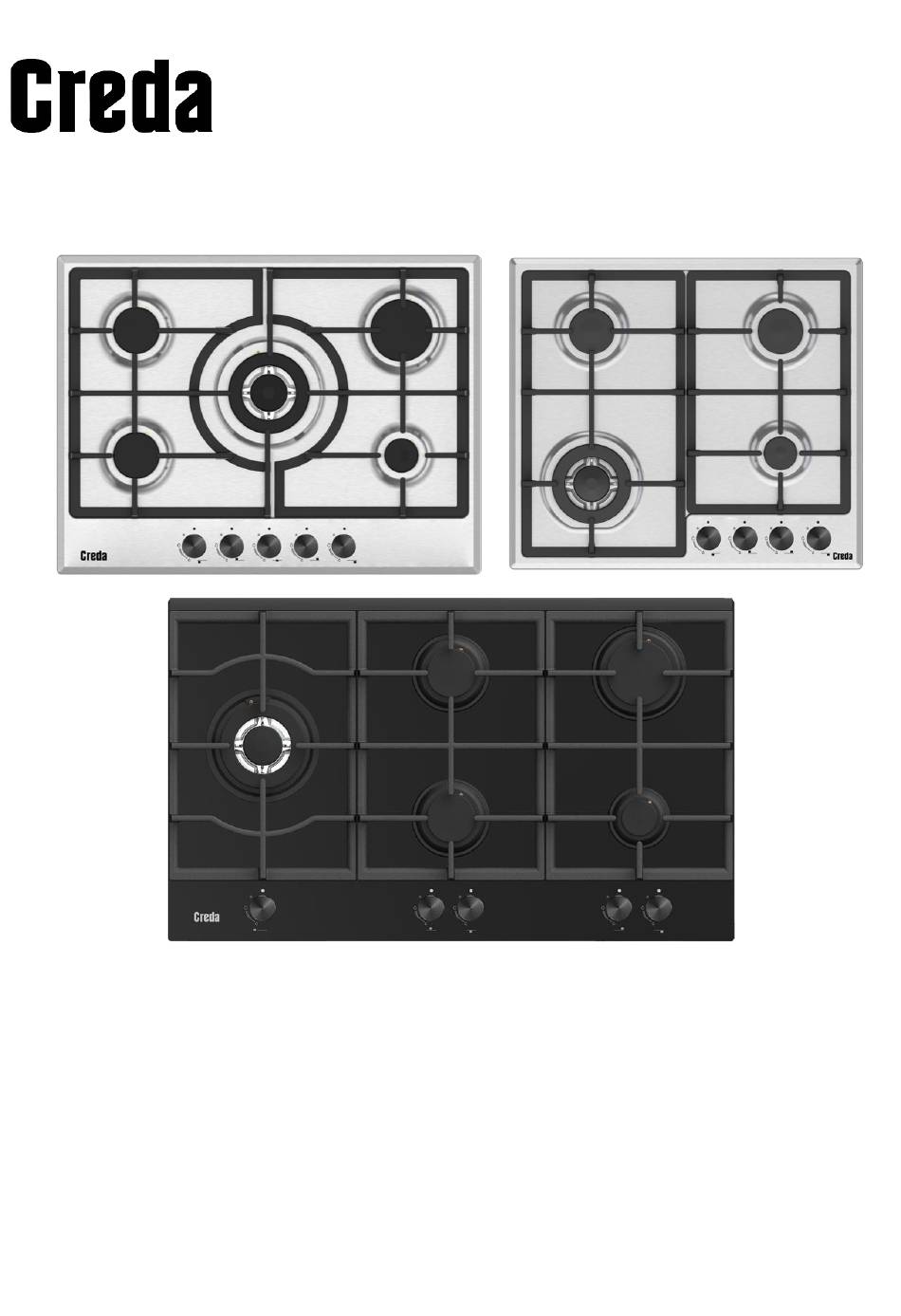

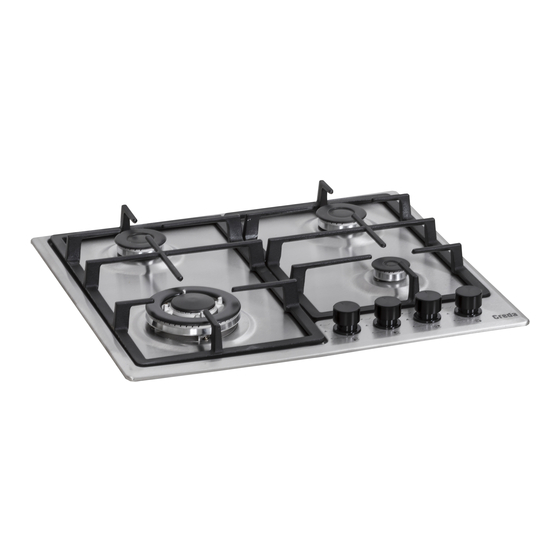

- Page 1 GAS HOBS USER MANUAL MODEL/S C60GFCWX C70GFCWX C60GFCWBL C60GFCWG C70GFCWG V 1.0 C90GFCWG V 1.0...
-
Page 2: Help And Guidance
USER MANUAL You’ll soon be enjoying your new Creda Gas Hob! It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started. -
Page 3: Table Of Contents
USER MANUAL Contents — PAGE Important warnings Electrical connection Gas connection Introduction of the appliance Technical features Installation of hob Counter cutting sizes Control panel Usage of your hob Maintenance and cleaning Troubleshooting Help and Assistance Package information... -
Page 4: Important Warnings
USER MANUAL IMPORTANT WARNINGS 1. Installation and repair should always be performed by “AUTHORIZED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorized persons. 2. Please read these operating instructions carefully. Only by this way you can use the appliance safely and in a correct manner. -
Page 5: Electrical Safety
USER MANUAL Electrical Safety 1. Plug the appliance in a grounded socket protected by a fuse conforming to the values specified in the technical specifications chart. 2. Have an authorized electrician set grounding equipment. Our company shall not be responsible for the damages that shall be incurred due to using the product without grounding according to local regulations. -
Page 6: Intended Use
USER MANUAL What To Do When Gas Odour Is Detected 1. Do not use naked flame, and do not smoke. 2. Do not operate any electrical switch. (For example: lamp switch or doorbell) 3. Do not use telephone or mobile phone. 4. -
Page 7: Electrical Connection
USER MANUAL Electrical Connection 1. Setting conditions of this appliance is indicated in tag or data plate. 2. Your appliance should be plugged in a fuse appropriate for electric power. If necessary, it is recommended that installation is done by authorized service. 3. -
Page 8: Gas Connection
USER MANUAL Gas Connection IMPORTANT: All gas installations must be carried out by a suitably qualified technician. For information on choosing a gas safe installer, contact the Gas Safe Register. www.gassaferegister.co.uk WARNING: Before starting any work related with gas installation, turn off gas supply. Risk of explosion. -
Page 9: Ventilation Of Room
USER MANUAL Transformation from natural gas to LPG and from LPG to natural gas 1. Turn off gas and electricity of the hob. If your hob is hot, wait for cooling down. 2. For injector change, use a screwdriver whose edge is as the figure 1. 3. -
Page 10: Introduction Of The Appliance
USER MANUAL INTRODUCTION OF THE APPLIANCE 1. Burner positions 7. Wok burner * 2. Glass or metal surface 8. Hotplate * 3. Control buttons 9. Coffee adaptor * 4. Small burner 10. Wok burner adaptor * 5. Medium burner 11. Cast grill 6. -
Page 11: Technical Features
USER MANUAL Technical Features Injector, gas flow and power table G20,20 mbar G20,25 mbar G20,13 mbar Burner G25,25 mbar Specifications Gas natural Gas natural Gas natural Injector 1,40 1,28 1,60 Gas flow 0,333 m³/h 0,333 m³/h 0,333 m³/h burner (3,5) Power 3,50 3,50... -
Page 12: Installation Of Hob
USER MANUAL INSTALLATION OF HOB Check if the electrical installation is proper to bring the appliance in operating condition. If electricity installation is not suitable, call an electrician and plumber to arrange the utilities as necessary. Manufacturer shall not be held responsible for damages caused by operations performed by unauthorized persons. -
Page 13: Installation Diagram
USER MANUAL Installation Diagram 6. When product is mounted on a drawer, if it is possible to touch lower side of product, this section should be separated with a wooden shelf. 7. While mounting hob on a closet, as shown in the figure above, in order to separate between closet and hob, a shelf should be mounted. - Page 14 USER MANUAL Counter Cut-out Dimensions Pay attention to the drawings and dimensions given below while making hob installation and adjusting counter cutting sizes.
-
Page 15: Control Panel
USER MANUAL CONTROL PANEL Hob Panel Visual Of 70-90 cm & 100 cm 1. Front left burner 2. Rear left burner 3. Wok burner 4. Rear right burner 5. Front right burner Hob Panel Visual Of 60 cm 1. Front left burner 2. -
Page 16: Usage Of Your Hob
USER MANUAL USAGE OF YOUR HOB 1. Before starting to use your hob, be sure burner hoods are at correct position. Correct placement of burner hoods are shown in the following figure. 2. Gas cocks have a special locking mechanism. Therefore, to operate hob zone, press button by pushing ahead and while opening or closing the cock, hold down the button. -
Page 17: Wok Burner
USER MANUAL spillage of materials placed on it. 10. Place the pots and pans so that their handles are not placed above the hobs to prevent heating of the handles. 11. Place suitable amount of food to the pots and pans. Thus, you may prevent overflowing of meals and avoid unnecessary cleaning. -
Page 18: Maintenance And Cleaning
USER MANUAL MAINTENANCE AND CLEANING Before starting to maintenance or cleaning, firstly unplug the plug supplying electricity to hob and turn down gas valve. If hob is hot, wait for cooling down. 1. For the purpose that your hob has long and economic life, regular cleaning and maintenance should be performed on your hob. -
Page 19: Help And Assistance
Local call rates apply* Lines open 9am-5:30pm Monday to Friday *Calls to Creda enquiry lines may attract a charge and set up fee from residential lines depending on your call plan/tariff. Mobile and other providers costs may vary, see www.bt.com/pricing for details. - Page 20 • Specifications are subject to change without notice. • Creda disclaim any liability for loss or damage arising from the breakdown of the product. • This guarantee is in addition to and does not diminish your statutory or legal rights.
- Page 21 USER MANUAL Declaration of conformance to product standards This appliance conforms to all relevant standards applicable to domestic appliances sold in the UK. Disposal This appliance/fitting is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
- Page 22 USER MANUAL This page is intentionally blank...
- Page 23 USER MANUAL This page is intentionally blank...
- Page 24 USER MANUAL...
