USER MANUAL

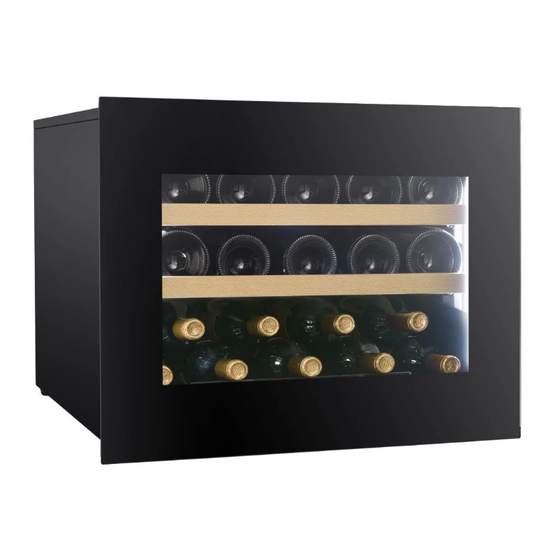

Dunavox Noble & Prime range
Noble models:
DVN-19.50B.TO;
DVN-25.65DB.TO;
DVN-44.120DB.TO;
DVN-70.185DB.TO;
Prime models:
DVP-19.50B;
DVP-25.65DB;
DVP-44.120DB;
DVP-70.185DB;
Dear customer,
Thank you for buying this appliance and putting your trust in Dunavox. We have
designed this product with the greatest care and hope it will be proud and long-term
addition to your house. If you have any questions about your appliance, please let us
know; we are happy to help you!
1
Advertisement
Table of Contents
Related Manuals for Dunavox Noble DVN-19.50B.TO
Summary of Contents for Dunavox Noble DVN-19.50B.TO
- Page 1 DVP-70.185DB; Dear customer, Thank you for buying this appliance and putting your trust in Dunavox. We have designed this product with the greatest care and hope it will be proud and long-term addition to your house. If you have any questions about your appliance, please let us...
-
Page 2: About This Document
1. ABOUT THIS DOCUMENT This manual is applicable to all Horizon and Spirit models from Dunavox. Read and understand this manual before using the product. Carefully store this manual for future reference. We reserve the right to change the parameters without prior notice. -
Page 3: Disposal Of Old Appliances
DISPOSAL OF OLD APPLIANCES Before disposing of an old appliance remove any plugs and power leads to ensure that the appliance is inoperative. Remove the door but leave the shelves in place to prevent children climbing inside. This symbol on the product indicates that it must not be discarded as general household waste. - Page 4 • All electrical repairs must be carried out by a qualified service engineer. Inadequate repairs may result in a major source of danger for the user and invalidate any warranty. • Never store anything dangerous inside the appliance, such as combustibles, explosives, strong acid or alkali etc.
- Page 5 • The Wine Cabinet should be positioned where the ambient temperature is between 10°C and 30°C. If the ambient temperature is above or below this range, the performance of the unit may be affected. Placing the appliance in extreme cold or hot conditions may cause the interior temperatures to fluctuate.
-
Page 6: Operating Your Wine Cooler
OPERATING YOUR WINE COOLER ➢ The controls of your wine Cooler FOR DVN-19.50; DVP-19.50 Power ON/OFF button The system default power ON after plug in. Long press this button 3 seconds, will have a beeping sound,the product power OFF. Slightly press this button, will have a beeping sound,the product power ON. 1.Language selection menu First power up, the screen displays the language selection menu (English, Spanish,Italian,French,German,Dutch,Hungarian,Polish,Slovenian.Selected language will be... - Page 7 3.Temperature setting page(Slide the screen to the left side once to enter this page) Tough the button to decrease the temperature by one (1) degree increments.Tough the button to increase the temperature by one (1) degree increments. Temperature control range :5-18℃. Factory default setting temperature: 12℃...
- Page 8 button to select the light color.( In the ECO mode, the light color can not be changed). 7.Restore the factory default settings(Slide the screen to the left side five times to enter this page) Touch “NO”, all the settings unchanged. Touch “YES”, restore the factory default settings,the interface will switch to the language selection menu 8.Time setting page(Slide the screen to the left side six times to enter this page)
- Page 9 3.After connecting the power, enter the home page and touch the WIFI button to enter the wireless network connection page, touch“Connect ” and the system will enter into the network matching status. 4.Click "+" on the APP page to "Add Device". The APP will automatically searching the devices and attempts to connecting.
- Page 10 ①Lock button: In normal mode(non-fault),the system default unlock after power on product. Touch the button on the upper left of the screen for 3 seconds, will have a beeping sound, the system enter lock mode to lock control panel and the lock button switch to , the system will have no action when touch the screen under lock mode .Touch the button for 3 seconds, will have a beeping...
- Page 11 Touch the “On” button, the light will constant bright; touch the “Off” button, the light will on when the door is opened and will off when the door is closed. In the ECO mode, the light will not on when touch the “On”button. 6.Light color setting page(Slide the screen to the left side four times to enter this page) There are 3 light color can select, “White”...
- Page 12 9.Choice between °C/F on display(Slide the screen to the left side seven times to enter this page) Celsius and Fahrenheit switch: Touch “℃” or “℉”, the corresponding symbol will bright, temperature display will switch between ℃ and ℉. WIFI usage Steps ：...
- Page 13 ➢ Storage diagram According to the actual configuration of your product, please check the relative Storage diagram. FOR DVN-19.50;DVP-19.50 FOR DVN-25.65; DVP-25.65 FOR DVN-44.120;DVP-44.120...
- Page 14 FOR DVN-70.185;DVP-70.185 ➢ Shelves According to the actual configuration of your product, please check the relative Remove ⚫ or Replace Racks. To prevent damaging the door gasket, make sure to have the door all the way opened ⚫ when pulling shelves out of the rail compartment. Fully extend the shelf you wish to remove (Fig.
-
Page 15: Installation Dimensions
➢ INSTALLATION DIMENSIONS DVN-19.50 DVP-19.50... - Page 16 DVH-25.65 DVP-25.65...
- Page 17 DVN-44.120...
- Page 18 DVP-44.120...
- Page 19 DVN-70.185...
- Page 20 DVP-70.185...
- Page 21 ➢ How to change the door opening Angle The Hettich hinge for DVH-25.65; DVH-44.120; DVH-70.185 1. door 2. decorative plate 3.screw 4. decorative nail 5/6.door hinge 7.door lamp press 8. M5 hand screw 1. Open the door and remove the decorative piece (2) on the upper left side and the decorative nail (4) on the lower left side.
- Page 22 lower right corner of the box (Fig.C). Note: Two people are required to replace the door. The Hettich hinge for DVN-19.50 1.Door 2.decorative nails 3.screws 4/5.door hinge 6.M5 hand screw 7.lower door lamp tablet 8.door lamp tablet 1. Open the door and remove the decorative nail (2) on the left side (Fig.A) 2.
- Page 23 (7) and install it in group A, rotate the M5 hand screw to the left, remove and install it in the upper door frame, Then rotate the door 180 degrees (Fig.D, E), 4. Fix the screws in the upper left corner and lower left corner of the box, and be careful not to tighten them (Fig.B).
- Page 24 ➢ Automatic door opening function After the door is closed, press 2-3 seconds on the upper left of the door or lower left of the door(for DVN-19.50), after which the push rod starts and sticks out, and the door opens automatically, and then the push rod automatically retracts.
-
Page 25: Care And Maintenance
CARE & MAINTENANCE ➢ Clean your Wine Cooler/Beverage Cooler Turn off the power, unplug the appliance, and remove all items including shelves and rack. ⚫ Wash the inside surfaces with a warm water and mild solution. ⚫ Wash the shelves with a mild detergent solution. ⚫... -
Page 26: Troubleshooting Guide
PROBLEMS WITH YOUR WINE COOLER/BEVERAGE COOLER You can solve many common Wine Cooler/Beverage Cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you solve the problem before calling the service. Troubleshooting Guide Problem Possible Cause... -
Page 27: Warranty
This product comes with a warranty period of 3 years. You can extend the warranty of your compressor up to 5 years if you register your appliance via the following link: dunavox.com/product-registration The warranty does not cover: • Damage in transit or when moving the appliance.
