ACVATIX™
Wireless Radiator Actuator Thread
SSA911.02TH
A6V13245129_en--_b
24-09-27

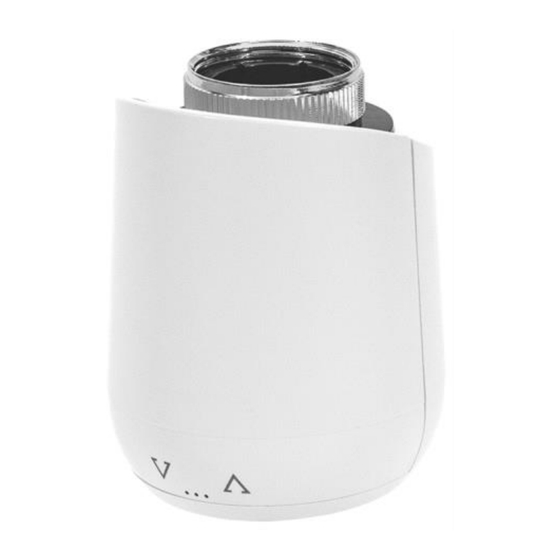

Wireless radiator valve actuator Thread
●
RF-controlled actuator communication based on the KNX IoT over Thread protocol
(2.4 GHz, bidirectional)
●
Connects and operates with KNX IoT BACnet IP Gateway and Plug and Play Au-
tomation
●
Battery-operated with 2 x 1.5 V AA batteries
●
Valve thread connection M30x1.5 mm
●
Nominal stroke 5 mm
●
Valve positioning force 90 N
●
Adapts automatically to valve
●
Integrated temperature sensor and PI controller
●
Integrated temperature setting on the wireless radiator valve actuator or over the
network.
●
Touch element operation
Smart Infrastructure
Advertisement
Table of Contents
Related Manuals for Siemens ACVATIX SSA911.02TH
Summary of Contents for Siemens ACVATIX SSA911.02TH
- Page 1 ACVATIX™ Wireless Radiator Actuator Thread SSA911.02TH Wireless radiator valve actuator Thread ● RF-controlled actuator communication based on the KNX IoT over Thread protocol (2.4 GHz, bidirectional) ● Connects and operates with KNX IoT BACnet IP Gateway and Plug and Play Au- tomation ●...
- Page 2 Wireless radiator valve ac- SSA911.02TH S55181-A102 Plug and Play Automation tuator Thread KNX IoT to BACnet Gate- Wireless room sensor QAA2890/WI S55720-S550 Plug and Play Automation QFA2890/WI S55720-S551 KNX IoT to BACnet Gate- QPA2892/WI S55720-S552 Siemens A6V13245129_en--_b Smart Infrastructure 24-09-27...
-
Page 3: Basic Functions
2 AA AA alkaline batteries (LR6) (included) ● Quick guide (A5W00347900A) Device combinations The SSA911.02TH can operate third-party radiator valves without an adapter, provided they have a M30x1.5 mm connecting thread and meet the following requirements: Siemens A6V13245129_en--_b Smart Infrastructure 24-09-27... - Page 4 Data sheet: Product description A6V13245129 SSA911.02TH Quick guide for installing the A6V14002827 SSA911.02TH Readme OSS A6V15031225 Edge Controller CXE200 Data sheet: Product description A6V13951362 Product and service data sheet A6V14216768 (PSDS) Installation quick guide A6V13947204 Siemens A6V13245129_en--_b Smart Infrastructure 24-09-27...
- Page 5 KNX IoT and Thread system limits System description A6V14455022 Related documents such as the environmental declarations, declarations of conformity, etc., can be downloaded from the following Internet address: www.siemens.com/bt/download Notes Safety WARNING Risk of burns from hot surface The screw nut that fastens the actuator to the radiator valve can become hot. Risk of burns from touching the screw nut.
- Page 6 ✓ The actuator stem on the wireless radiator valve actuator SSA911.02TH is fully retracted 1. Install the wireless radiator valve actuator on the radiator. 2. Prepare control as per product product documentation. 3. Scan the DataMatrix code on the wireless radiator valve. The system assigns the actuator. Siemens A6V13245129_en--_b Smart Infrastructure 24-09-27...
-
Page 7: Operation
Reset the wireless radiator valve actuator if pairing fails several times. Reset the wireless radiator valve ac- tuator to factory settings and attempt to restart pairing as per the documenta- tion. Siemens A6V13245129_en--_b Smart Infrastructure 24-09-27... - Page 8 Animation: On if battery capacity drops below 20%. Wink function (to identify wireless radiator valve actuators) Rotate display by 180° Display actuator information (AI: actuator information) from the wireless radiator valve actuator (battery, connection, FW version) Battery status Connection quality Firmware version Siemens A6V13245129_en--_b Smart Infrastructure 24-09-27...
- Page 9 The display turns off and the valve stem goes to the mounting position. Turn the screw nut counterclockwise and remove the device from the radiator valve actu- ator. The SSA911.02TH is removed. Siemens A6V13245129_en--_b Smart Infrastructure 24-09-27...
- Page 10 Dispose of empty batteries at designated collection points. Warranty service The application-specific technical data is guaranteed only in combination with the Siemens products listed in the 'Device combinations' section. If third-party products are used, any guarantee provided by Siemens will be invalidated.
-
Page 11: Technical Design
IEC 60529 Degree of pollution Class 2 per IEC 60730 Environmental conditions Operation Temperature 0...55 °C Humidity < 95 % Transportation Temperature -45...70 °C Humidity < 95 % Storage Temperature -25...55 °C Humidity < 95 % Siemens A6V13245129_en--_b Smart Infrastructure 24-09-27... - Page 12 (RoHS compliance, materials composition, packaging, environmental benefit, disposal). Material and dimensions Housing Material Plastic, light ASA+PC Color White NCS S 052-G Thread M30x1.5 W x H x D See Dimensions [▶ Weight Fully mounted Documents available at http://www.siemens.com/bt/download Siemens A6V13245129_en--_b Smart Infrastructure 24-09-27...
-
Page 13: Revision Numbers
Dimensions Weight with batteries 0.16 Revision numbers Type Valid from rev. no. SSA911.02TH ..01 S55181-A102 Siemens A6V13245129_en--_b Smart Infrastructure 24-09-27... - Page 14 Issued by © Siemens 2024 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies Document ID A6V13245129_en--_b Edition 24-09-27...
