Advanced Energy Impac 6-TVD Series Quick Start Manual

Pyrometers

Hide thumbs Also See for Impac 6-TVD Series:

Download this manual

Impac

Quick Start Guide

Important Safety Information

To ensure safe installation and operation of the Advanced Energy Series 6-TVD unit, refer to the full

Safety and Product Compliance Guidelines in the user manual for the Series 6-TVD unit.

Getting Started

The following instructions are intended for experienced operators or responsible parties with basic

knowledge of the components listed here. Plug and play operation of the Series 6-TVD pyrometers

begins here.

This document and the information contained herein are the proprietary property of Advanced

Series 6-TVD Pyrometers

1. Connect all hardware components. Using the video and connections cables, connect the

pyrometer and video processing box into an RS-485 interface (PC).

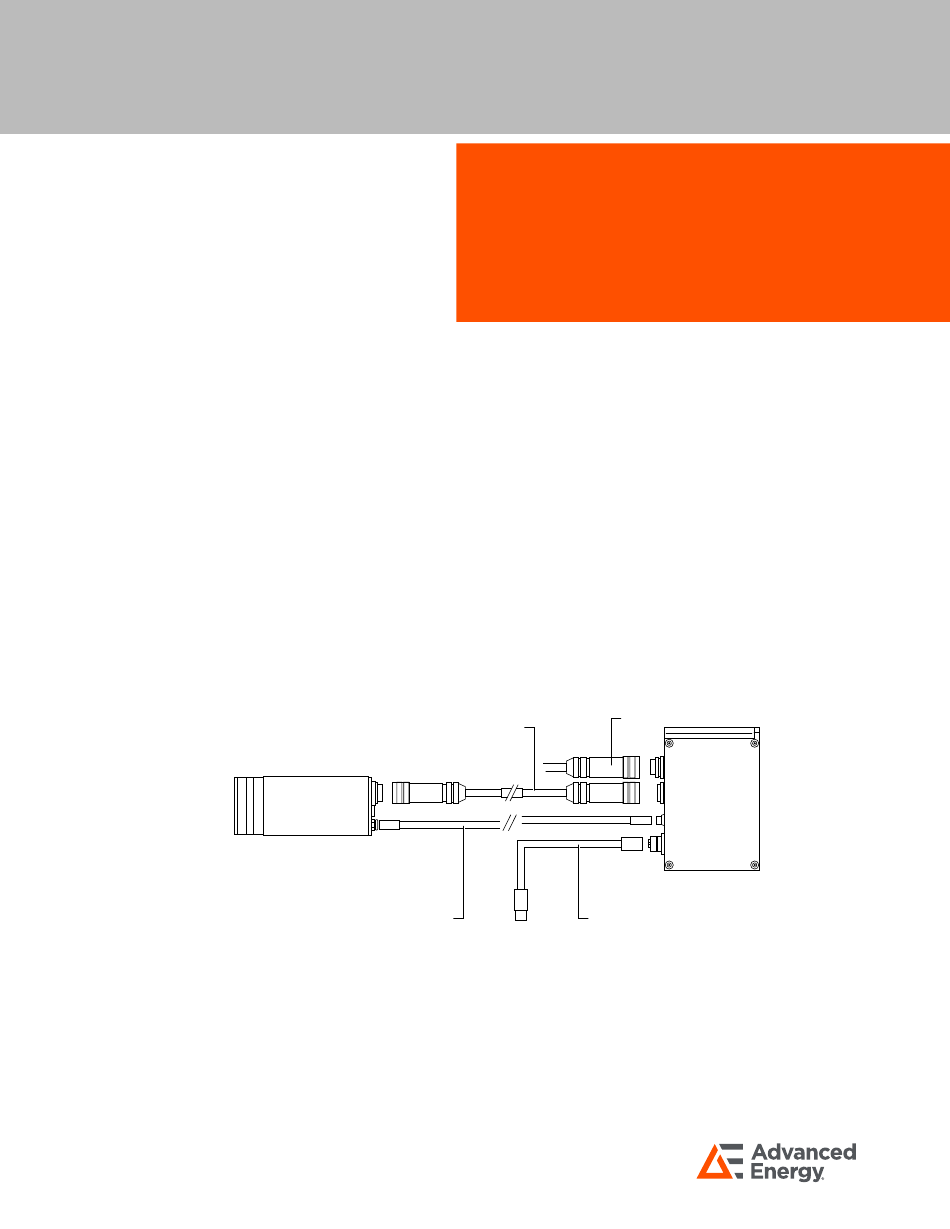

Hardware setup

Connection cable between pyrometer and box

Series 6-TVD Pyrometer

Series 6-TVD video cable

2. Connect and install the USB converter to the PC. When installed, the waiting time in the device

manager should be set to 1 ms. If needed, install the USB manager to receive the core drivers

and get the status of the installed USBs.

3. Go to http://www.advancedenergy.com, select Design Resources→ Software, in the Keyword

search bar type InfraWin, scroll down to find the USB manager and click the link.

4. Install both the USB manager and InfraWin5 software on the PC.

970-213990-0000AB November 2024

Need help?

Do you have a question about the Impac 6-TVD Series and is the answer not in the manual?

Page 1 Important Safety Information To ensure safe installation and operation of the Advanced Energy Series 6-TVD unit, refer to the full Safety and Product Compliance Guidelines in the user manual for the Series 6-TVD unit. Getting Started The following instructions are intended for experienced operators or responsible parties with basic knowledge of the components listed here.
Page 2 ® ® Advanced Energy Impac Series 6-TVD Pyrometers 5. Using the InfraWin software, select Devices/Parameters→ TV; set the video processing box (VPB) static IP address to 192.168.1.10 and the subnet mask to 255.255.255.0. After following these steps, InfraWin5.exe (measurement, parametrization, live image, and other features) and InfraTV.exe (only live image) are available.
