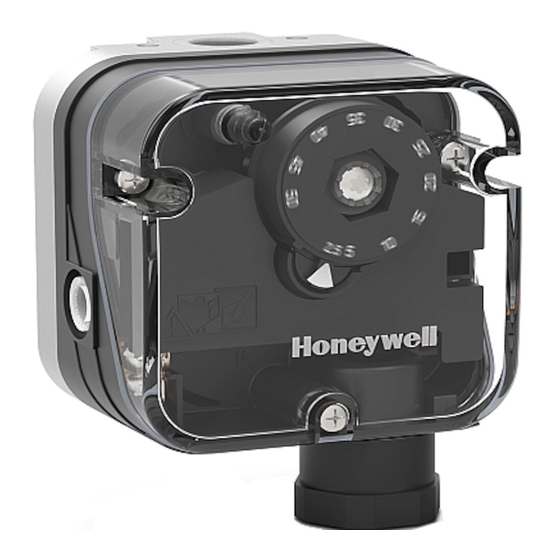

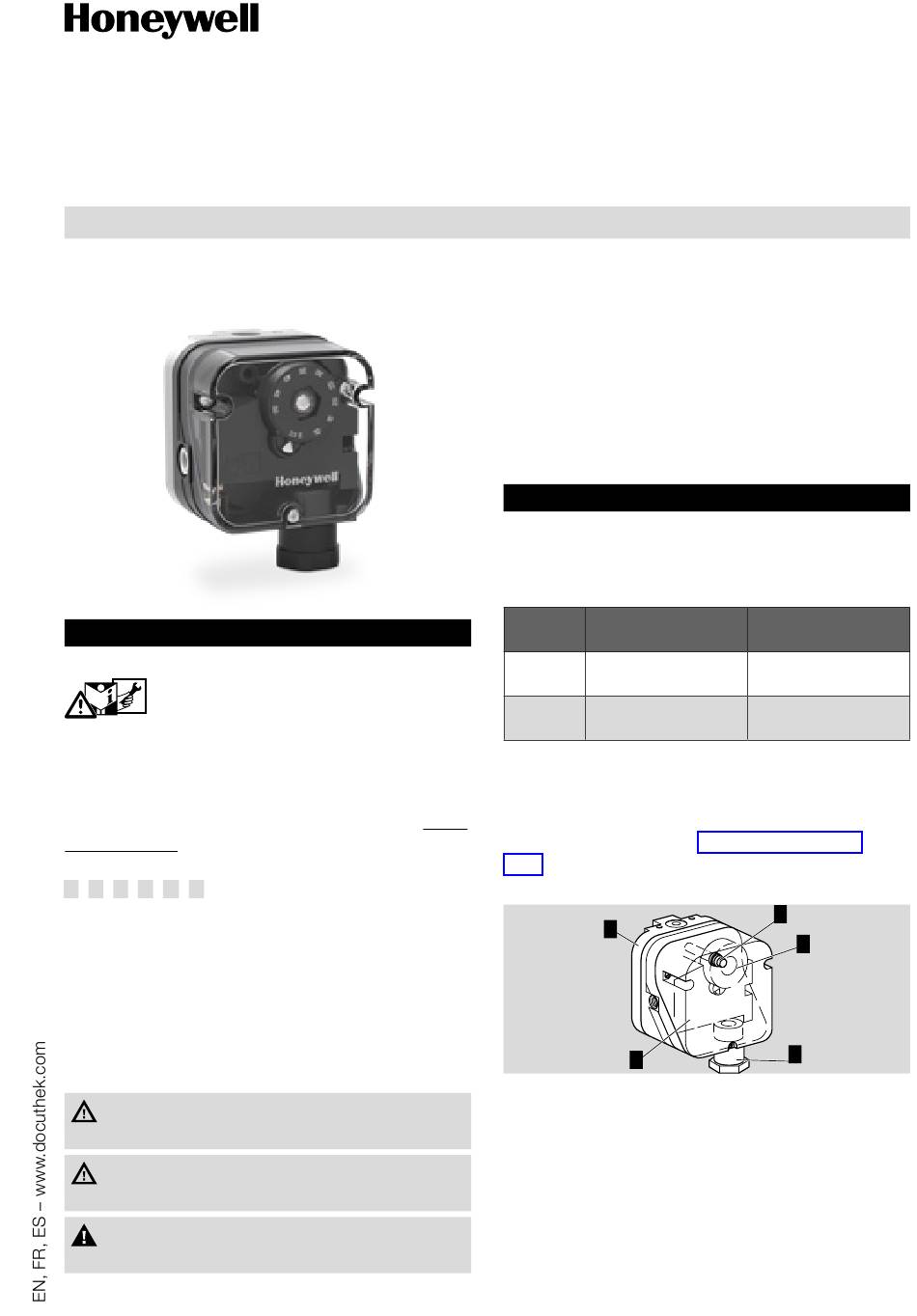

Gas pressure switches C6097A, C6097B
1 SAFETY
1.1 Please read and keep in a safe place
Please read through these instructions
carefully before installing or operating. Following the
installation, pass the instructions on to the operator.
This unit must be installed and commissioned in
accordance with the regulations and standards in
force. These instructions can also be found at www.
docuthek.com.
1.2 Explanation of symbols
1 , 2 , 3 , a , b , c = Action
➔ = Instruction
1.3 Liability
We will not be held liable for damage resulting from
non-observance of the instructions and non-com-
pliant use.
1.4 Safety instructions
Information that is relevant for safety is indicated in
the instructions as follows:
DANGER
Indicates potentially fatal situations.
WARNING
Indicates possible danger to life and limb.
CAUTION
Indicates possible material damage.
OPERATING INSTRUCTIONS
Cert. Version 08.19 · Edition 01.24 · EN · 03251547
All interventions may only be carried out by qualified
gas technicians. Electrical interventions may only be
carried out by qualified electricians.
1.5 Conversion, spare parts
All technical changes are prohibited. Only use OEM
spare parts.
2 CHECKING THE USAGE
Gas pressure switches C6097 for monitoring in-
creasing and decreasing gas or air pressure.
C6097A: switches with falling pressure,
C6097B: switches with rising pressure.
Positive pressure
Gas, air, flue gas,
C6097A
biogas
Gas, air, flue gas,
C6097B
biogas
Pressure switches with manual reset lock off after
switching. They can be unlocked using the manual
reset.
This function is only guaranteed when used within
the specified limits – see page 4 (10 Technical
data). Any other use is considered as non-compliant.
2.1 Part designations
2
1
1
Upper housing section with cover
2
Lower housing section
3
Hand wheel
4
1/2" conduit coupling
5
Manual reset
(only on C6097A3012, C6097A3038,
C6097A3095, C6097A3111, C6097B3002,
C6097B3028, C6097B3051 and some custom-
er-specific variants)
Negative
pressure
Air, flue gas
Air, flue gas
5
3
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Honeywell C6097A3012
Summary of Contents for Honeywell C6097A3012
- Page 1 Lower housing section DANGER Hand wheel Indicates potentially fatal situations. 1/2" conduit coupling WARNING Manual reset (only on C6097A3012, C6097A3038, Indicates possible danger to life and limb. C6097A3095, C6097A3111, C6097B3002, CAUTION C6097B3028, C6097B3051 and some custom- Indicates possible material damage. er-specific variants)
-
Page 2: Installation
2.2 Type label CAUTION If port 4 is at the top, IP 65 will not be satisfied. IP 65 ➔ The C6097 must not be in contact with masonry. Approval and type: see type label. Minimum clearance 1" (25 mm). For detailed information on the adjusting range, ➔... -
Page 3: Tightness Test
6 PRESSURE SWITCHES WITH MANUAL RESET ➔ C6097A3012, C6097A3038, C6097A3095, C6097A3111 lock off if the pressure drops to the set value. ➔ C6097B3002, C6097B3028, C6097B3051 lock off if the pressure rises to the set value. Reset the pressure switch using the manual reset. -
Page 4: 10 Technical Data
10 TECHNICAL DATA Gas type: natural gas, town gas, LPG (gaseous), flue gas, biogas (max. 0.1 %-by-vol. H S) and air. Maximum medium and ambient temperatures: -40 to +140°F (-40 to +60°C). Long-term use in the upper ambient temperature range accelerates the ageing of the elastomer ma- terials and reduces the service life (please contact manufacturer). - Page 5 (mbar) (mbar) 0.4–4 0.1–0,16 Air/ C6097A3004 8.5 (600) 7 (480) – 1/4" (1–10 ) (0.25–0.4) 1–20 0.4–0.8 Air/ C6097A3012 – 8.5 (600) 7 (480) 1/4" (2.5–50) (1–2) 12–60 0.8 – 4.8 (2 Air/ C6097A3038 – 8.5 (600) 7 (480) 1/4"...
- Page 6 FOR MORE INFORMATION The Honeywell Thermal Solutions family of products includes Honeywell Combustion Safety, Eclipse, Exothermics, Hauck, Kromschröder and Maxon. To learn more about our products, visit ThermalSolutions.honeywell.com or contact your Honeywell Sales...
