GENERAL DESCRIPTION
The TW-CP-RB-01 / TW-CPW-RB-01 call point permits the manual activation of a fire alarm.
The TW-CP-RB-01 / TW-CPW-RB-01 is battery powered and doesn't need any system cabling installation.

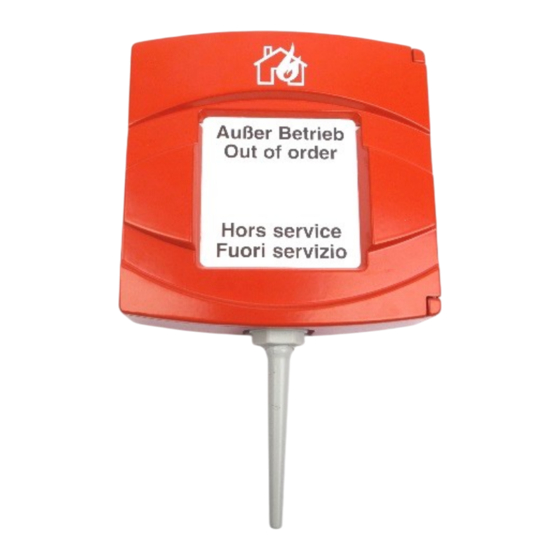

Product view
Picture 1
DEPLOYMENT PROCEDURE
1) Select a location for the call point. See LOCATION SELECTION.
2) Unbox the call point from its packaging.
3) Power up the call point. See POWERING UP - FIRST TIME USE / POWERING UP - RECOVERY.
4) Link the call point to the system. See LINKING - WAKE-UP / LINKING - ONE-BY-ONE.
5) Install the device. See DEVICE INSTALLATION.
6) Test the call point. See TESTING.
7) Remove the " Out of order" label when the call point is in operation.
LOCATION SELECTION
Select a location for the call point that conforms to your local applicable safety standards and that is in a good position for sending / receiving
wireless signals to / from the TW-MTI-01, TW-MEC-01 or TW-ME-01 network device.
Mount the call point as far as possible from metal objects, metal doors, metal window openings, etc. as well as cable conductors, cables
(especially from computers), otherwise the operating distance may greatly drop.
The TW-CP-RB-01 / TW-CPW-RB-01 must NOT be installed near electronic devices and computer equipment that can interfere with its
wireless communication quality.
ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy
TW-CP-RB-01
TW-CPW-RB-01
Taurus Wireless Resettable Call Point
Taurus Wireless Waterproof Resettable Call Point
LED indicator
Activation button
Operable front
Window - "Out of
Order" label
removed
Fixing holes
Back box
It is advisable to use the TW-SK-01 survey kit to
locate a good wireless installation location.
Battery B
housing
Locking
lever
Tamper
switch
Opening key
Link program
switch
Battery A
housing
Always remove the "Out of Order" label
when the call point comes in operation.
www.argussecurity.it
1
Advertisement
Related Manuals for Argus Security TAURUS TW-CP-RB-01
Summary of Contents for Argus Security TAURUS TW-CP-RB-01
- Page 1 (especially from computers), otherwise the operating distance may greatly drop. The TW-CP-RB-01 / TW-CPW-RB-01 must NOT be installed near electronic devices and computer equipment that can interfere with its wireless communication quality. ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
- Page 2 LED INDICATOR STATUS MESSAGES Please mind that LED signalling burns out battery power, therefore reducing batteries The LED indicator communicates to the final user the status of the TW-CP-RB-01 / lifespan. TW-CPW-RB-01 Device status LEDs indication Power up (DIP on “ON”) Blinks red 4 times Power up (DIP opposite “ON”) Blinks green 4 times...
- Page 3 2) Remove and replace the pane of glass Screws to be used to remove the pane of glass and the “Out of order” label Pane of glass Picture 3 ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
- Page 4 Refer to and follow national codes of practice and other internationally ARGUS SECURITY S.R.L. recognized fire engineering standards. Appropriate risk assessment should be carried out initially to Via del Canneto, 14 determine correct design criteria and updated periodically.
