Argus Security SGCP100-IS Quick Start Manual

SGCP100-IS
INTRINSICALLY SAFE WIRELESS
INTRODUCTION TO THE INTRINSICALLY SAFE FIRE DETECTION DEVICE
This wireless manual call point has been certified by Baseefa and has been awarded the ATEX Classification
T5 Ga –10˚C ≤ Ta ≤ +55˚C making it suitable for Category 1, 2 or 3 hazardous atmospheres with a maximum ambient temperature
up to 55˚C.
The product has been assessed and certified for ATEX & IECEx requirements for hazardous applications according to the followi ng
standards:
IEC 60079-0:2011 / EN 60079-0:2012+A11:2013
IEC 60079-11:2011 / EN 60079-11:2012
IEC 60079-28:2015 / EN 60079-28:2015
It is recommended that installation only be carried out by qualified personnel according to hazardous area safe working practice and
in conformity to the terms of the product certification. Note that the Translator Interface to which this device will be linked does not
form part of the ATEX/IECEx certified system and must be sited in the safe area which is not subject to hazardous conditions.

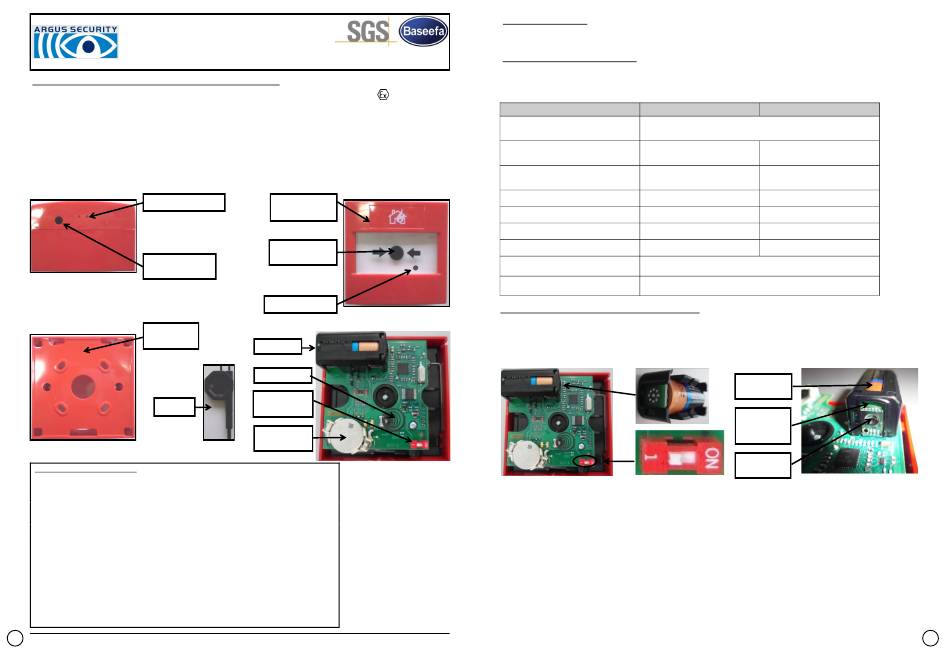

Device's removal holes
Insertion hole for
the reset key
Picture 1
Wall mounting
back box
Reset key
Picture 3
TECHNICAL SPECIFICATIONS ***
Communication range with the wire to wireless translator or
wireless expander
Operating frequency
Modulation type
Operating frequency channels
Radiated power
Main battery type
Secondary battery type
Approved battery voltage range
Main battery lifespan
Secondary battery lifespan
Dimensions
Weight
Operating temperature range
1
ARGUS SECURITY S.R.L., Via del Canneto, 14 - 34015 - Muggia (TS) - Italy
Baseefa16ATEX0111X
CALL POINT
IECEx BAS 16.0050X
Front operating
element
Manual activation
point
Visual LED indicator
Main battery
Tamper spring
Link - program
switch
Secondary
battery
Picture 5
200 m (in open space) *
* Ideal operating range: may vary
according
868 MHz
conditions.
FSK
** When a low battery condition is
7
indicated,
secondary
5 dBm (3 mW)
changed together.
CR123A (3V & 1.2 Ah) - Duracell Ultra
** If it is assumed that the device is
set with a message transmission
CR2032А (3V & 250 mAh) - Maxell
period of 60 seconds.
2.75V - 3.20V
*** Check
3 years **
document
further data, obtainable from your
2 months **
supplier.
86 mm x 86 mm x 59 mm
186 grams (without batteries)
from –10 °C to +55 °C
Table 1
GENERAL DESCRIPTION
The intrinsically safe wireless call point is a wall mounted device that, when activated, initiates an alarm on the fire security system.
Its construction makes it suitable for installation in hazardous environment according to ATEX DIRECTIVE 2014/34/EU.
CALL POINT'S VISUAL LED INDICATOR
The wireless call point is equipped with a bi-colour LED (red / green) that provides visual indication for functional conditions and
battery levels as indicated in table 2. The indicator is positioned near the lower right corner of the device's operating element (see
picture 2).
II 1 G ; Ex ia IIC
Call point status
Power up
Device not linked
Link - program switch on "ON"
Programming and linking to the system
Power up
Device linked
Link - program switch on "1"
Normal condition
Alarm activation
Main battery fault
Secondary battery fault
Both batteries fault
Not communicating with the translator or
the expander
DEVICE'S POWER SUPPLY, PROGRAMMING AND LINKING
Picture 2
The linking operation will configure the call point onto the wireless system controlled by a Translator interface.
The linking method described below does not change and applies for operation with either the wire to wireless translator interface or
the Wirelex computer configuration program.
1) Move the link-program switch to position ON (picture 6).
Picture 4
Picture 6 - primary battery, secondary battery, primary battery
housing and link - program switch
to environmental
2) Insert the secondary battery into its housing (picture 6).
both main and
3) Insert the primary battery into its housing then into the device terminals of the PCB making sure that these remain on the outer
batteries must be
part of the intrinsically safe battery contact as indicated in picture 7; the visual LED indicator will switch on accordingly (see "Power
up" in table 2 and picture 7).
Ensure that the polarity is correct for both batteries!!!
4) When the wire to wireless translator (locally or remotely via Wirelex) is searching for a new device to link to, move the link-program
latest version of
TDS-SCP1IS-0002 for switch to position 1 in order to initiate communication with the translator or the expander module; the visual LED indicator will switch
on accordingly (see "Programming and linking to the system" in table 2).
If the linking and programming operation fails, check if mistakes were made with the wire to wireless translator or the Wirelex link
process, remove the batteries, change over repeatedly the ON / 1 switch a few times in order to discharge the internal capacitor and
then start again from point 1 re-performing the linking procedure.
www.argussecurity.it info@argussecurity.it
Green LED Red LED
0.5 second green, then blinking red until power up is completed
Blinking until linking and program-
-
ming is completed
Blinking until power up is complet-
-
ed
- -
- 1 second on and 1 second off
0.5 second on and
-
10 seconds off
0.5 second on and
-
10 seconds off
0.5 second green, 5 seconds off, 0.5 second red
0.1 second green and red (amber) and
1 second off
Battery positive
terminal
Intrinsically
Safe battery
contact PCB
PCB battery
contact
Table 2
Picture 7 - correct
battery insertion
2
L20-SGCP1IS-0001 (vA.4)
