TW-MEC-01

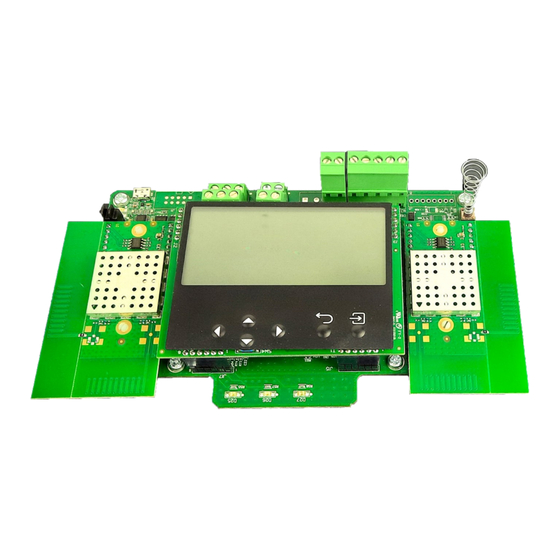

GUIDE TO THE KEYBOARD - DISPLAY INTERFACE SYSTEM
TAURUS SERIES

Advertisement

loading
Need help?

Need help?

Do you have a question about the TAURUS TW-MEC-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Argus Security TAURUS TW-MEC-01

Summary of Contents for Argus Security TAURUS TW-MEC-01

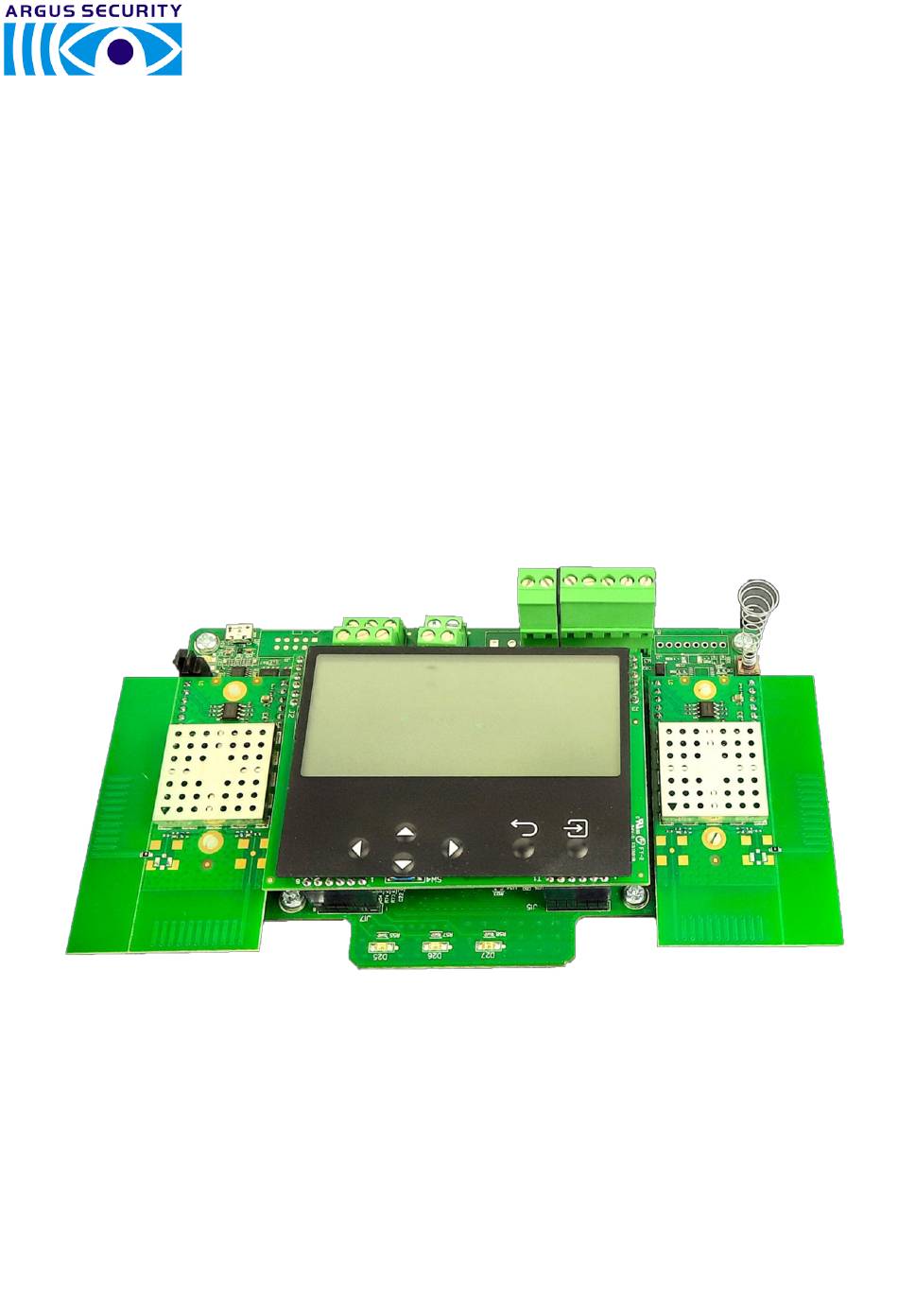

  • Page 1 TW-MEC-01 GUIDE TO THE KEYBOARD - DISPLAY INTERFACE SYSTEM TAURUS SERIES...

  • Page 2: System Compatibility

    The reason for this channel’s pairing system policy stems from the necessity to grant wireless connection security by having a “spare channel” in case the other one fails. ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 3 Field channel pair 2 / 38 Device TW-ME-01 # 4 Device In this example channel pair 2 / 38 is Device used only by TW-ME-01 # 4 and its Device child devices Picture 1 Network channel pair 9 / 45 TW-MEC-01 TW-ME-01 TW-ME-01 In this example channel pair 9 / 45 is...
  • Page 4 "Discovery mode". Taurus system (TW-MTI-01, TW-MEC-01). ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 5 THE USER’S KEYPAD Left Right Exit Enter Down Picture 4 Keypad buttons are: Pulls up the display’s menu selection. If applied to a value, the selected digit is increased. Down Pushes down the display’s menu selection. If applied to a value, the selected digit is decreased. Left Returns to the previous menu.
  • Page 6 [Edit system settings] Save Update completed Press back to exit Saving setting’s changes may require some further programming or linking actions, as requested by the device. ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 7 SETTING THE EXPANDER PARAMETERS - CENTRAL AND EXPANSION NODES Setting the expander parameters permits you to specifically characterize the network device (TW-MTI-01, TW-MEC-01, TW-ME-01) you are installing or maintaining. Central nodes (TW-MTI-01, TW-MEC-01) ARE indicated as expanders. The term expander is NOT limited to TW-ME-01s. In Taurus wireless systems, central node’s sequential number is always 1.
  • Page 8 Saving setting’s changes may require Remote expander programming is explained in some further programming or linking this manual. actions, as requested by the device. ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 9 FURTHER ACTIONS MAY BE REQUIRED AFTER CHANGING CERTAIN SETTINGS Modifications on system and expanders settings may imply that you will have to take further programming or re-linking actions. These actions will be notified to you from the onboard interface, nevertheless some words will be spent here: - if you change certain system settings, all expanders need a programming action to be performed on each of them.
  • Page 10 MGGG0001 Children: 0 MGGG0001 Children: 0 PROGRAM REQUIRED PROGRAM REQUIRED [View/Edit Expander] Please enter password Program Expander 0002 ..Writing config.. Program success press back button ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 11 ADDING AND LINKING DEVICES In order to add one or more devices to the Taurus system, perform the following steps in sequence: 1) Add one or more virtual devices to the system. 2) Link the real device or devices to the system. ADDING A VIRTUAL DEVICE To add a device: Please enter password...
  • Page 12 It is possible for you to modify or delete the recorded devices; these operations are described in this manual. ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 13 LINKING A REAL DEVICE - LINK BY SWITCH A child device is made part of the Taurus system only through the linking operation. After a virtual child device has been added, perform the following procedure: Please enter password [Main Menu] Sys: 037 0001 System Config...
  • Page 14 After having selected the virtual child device (or one of the virtual child devices) of which you want to link its real counterpart (Enter key): [Link device] Link by switch Wakeup link Select the Wakeup link option. ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 15 LINKING A REAL DEVICE - WAKEUP LINK (CONTINUED) Linking for the selected device starts: Linking: 01 : 01 Linking: 01 : 01 Linking: 01 : 01 Looking for device.. Link success Press back to abort Press back to abort Press back to exit The child device is now part of the system.
  • Page 16 Delete device 01 : 01 of expander 1 ? Completed! Yes no Press back to exit Always remove the batteries of deleted child devices! ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 17 REPLACING A DEVICE - THROUGH LINK BY SWITCH When you need to replace a device: Please enter password [Main Menu] Sys: 037 0001 System Config N: 09/45 TM-ConvExp F: 55/25 [System Config] Please enter password [Device Settings] Device Settings Replace Device 0002 [Replace Device] Select Exp.
  • Page 18 This window requires you to insert the unique identification (UUID) of the NEW device (use the [Wakeup link] Up, Down, Left and Right keys). N0GG0001 Enter key when done. Insert new UUID ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 19 REPLACING A DEVICE - THROUGH WAKEUP LINK (CONTINUED) Device replacement continues automatically: Linking: 01 : 01 Linking: 01 : 01 Linking: 01 : 01 Looking for device.. Link success Press back to abort Press back to abort Press back to exit The child device has been replaced.
  • Page 20 If the virtual expander is successfully added, the following acknowledgment window appears: [Add Expander] Expander added ! Press button to exit Repeat this procedure for every TW-ME-01 you need to add to your system. ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 21 LINKING A REAL EXPANDER - AUTOLEARN / DISCOVERY Second and last step for adding a TW-ME-01 is the “Autolearn / discovery” operation. The real device (or devices) will be effectively linked to the system: Please enter password [Main Menu] Sys: 037 System Config 0001 N: 09/45...
  • Page 22 LINKING A REAL EXPANDER - AUTOLEARN / DISCOVERY (CONTINUED) Autolearn / discovery starts: Sys: 037 ..Starting.. N: 09/45 TM-ConvExp F: 55/25 The involved TW-ME-01 devices are now integrated in the Taurus system. ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
  • Page 23 DELETING AN EXPANDER FROM THE SYSTEM If you want to delete an expander, whether linked or not linked, follow this procedure: Please enter password [Main Menu] Sys: 037 0001 System Config N: 09/45 TM-ConvExp F: 55/25 [System Config] [Expander Settings] [View/Edit Expander] Expander Settings View/Edit Expander...
  • Page 24 Low battery fault. Communicating with computer. Generic fault event detected. Shown especially when interacting with the Includes power supply faults. TauREX software. Picture 5 ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...

  • Page 25: Appendix A - Standard Channel Pairs

    APPENDIX A - STANDARD CHANNEL PAIRS In this appendix section you can find the lists of the standard channel pairs used by the Taurus system. Field channel pairs Network channel pairs Table 2 Table 3 Not used channels Table 4 info@argussecurity.it L20-MECKD-0001 (P.2)

  • Page 26: Appendix B - Child Device's Types And Subtypes

    Wall SND VAD TW-MWSO-01 + CWS100-AV Sounder Base SND TW-BS-01 Sounder BS red VAD TW-BSB-23R-01 Sounder BS white VAD TW-BSB-23W-01 Output module Supervised TW-MO-SB-01 Table 5 ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...

  • Page 27: Appendix C - "Tone Period [S]" Option Setting

    APPENDIX C - “TONE PERIOD [S]” OPTION SETTING The following table is valid for the TW-BS-01, TW-BSB-23R-01 and TW-BSB-23W-01: Tone period [s] Tone Tone designation Tone pattern description switch setting Silent No sound 11111 Warble Tone 800Hz for 500ms, then 1000Hz for 500ms 11101 Continuous tone 970Hz continuous tone...
  • Page 28 Table 7 (*) The devices, playing this tone, cannot be acoustically synchronized. On the contrary, the visual signals can be synchronized, always (TW-MWSO-01 + CWS100-AV). ARGUS SECURITY S.R.L. - Via del Canneto, 14 - 34015 - Muggia (TS) - Italy www.argussecurity.it...
