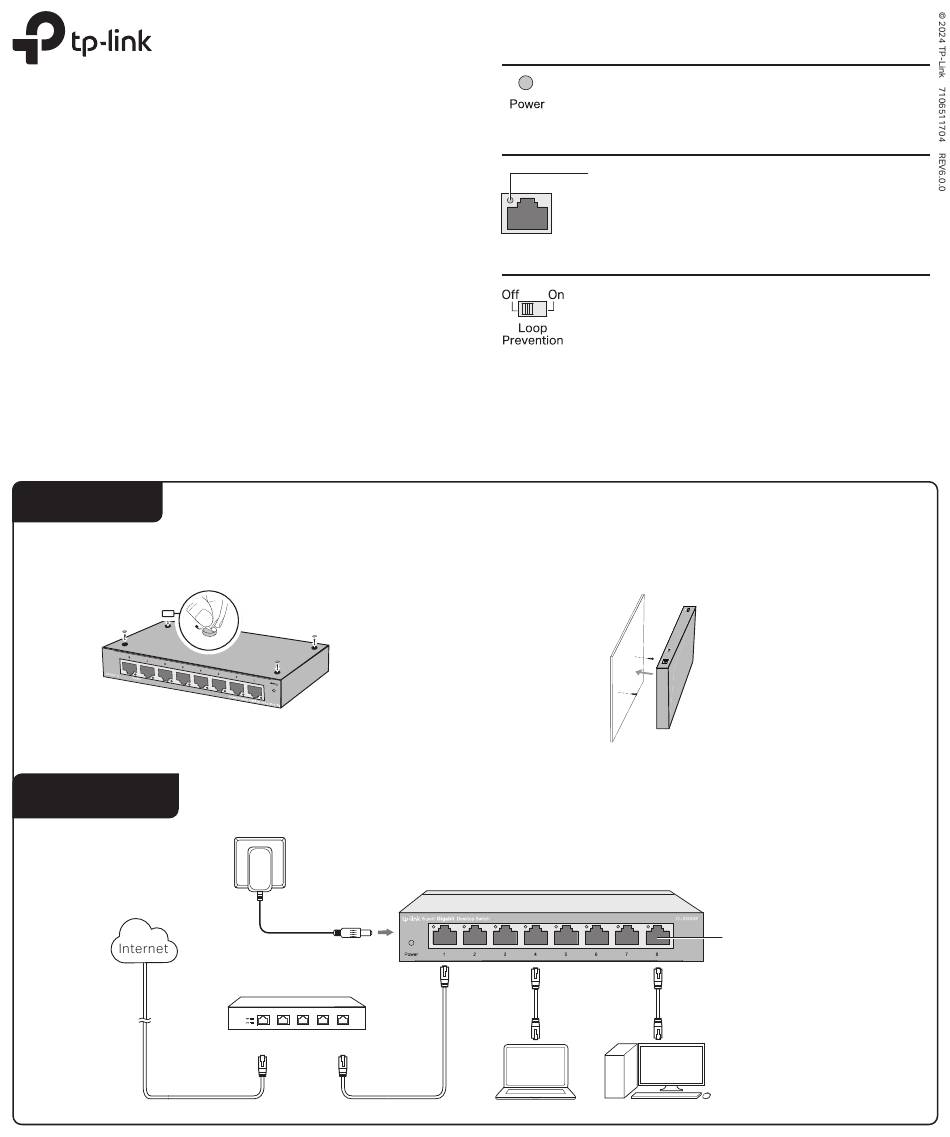

TP-Link TL-SG608 Installation Manual

Installation Guide
5/8-Port Gigabit Desktop Switch
Note:
For simplicity, we will take TL-SG608 for example throughout this Guide.
Installation
Desktop:
Attach the supplied feet to the bottom of the switch to prevent it from slipping
when placed on a desktop.
Connection
Power Adapter
Router
WAN Port LAN Port
Panel Explanation
Power LED
On: Power on
Off: Power off
Flashing: Loop occurs in the network topology
Link/Act LED
On: Running at 10/100/1000 Mbps
Off: No device is linked to the corresponding port
Quick flashing: Transmitting/receiving data
Slow flashing: Loop is detected on the corresponding port
Switch
On: The switch will monitor and address loop-related
issues within the network structure to prevent disruptions
caused by redundant pathing
Off: (default) The switch will not try to monitor or address
loop-related issues
Wall-mounting:
Drill two holes on the wall according to the mounting holes on the bottom of
the switch, then secure the switch to the wall with two suitable screws (not
provided).
TL-SG608
Link/Act
PC PC
Note: For detailed information, please refer
to the Wall Mounting Guide on the device's
support page.
Ethernet Ports (1-8)
