SERVICE MANUAL
PD-H300

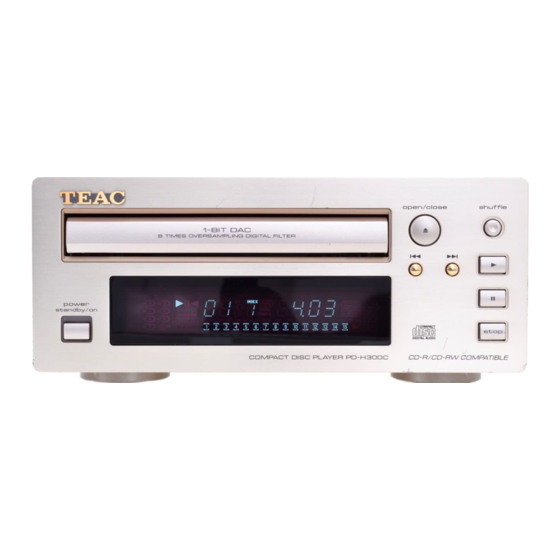

Compact Disc Player
NOTES
PC boards shown are viewed from parts side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the cir-
cuit diagrams contained in this manual.
A\ Parts marked with this sign are safety critical compo-
nents.
They must be replaced with identical components- refer
to the appropriate parts list and ensure exact replace-
ment.
Parts of [ ] mark can be used only with the version desig-
nated.
