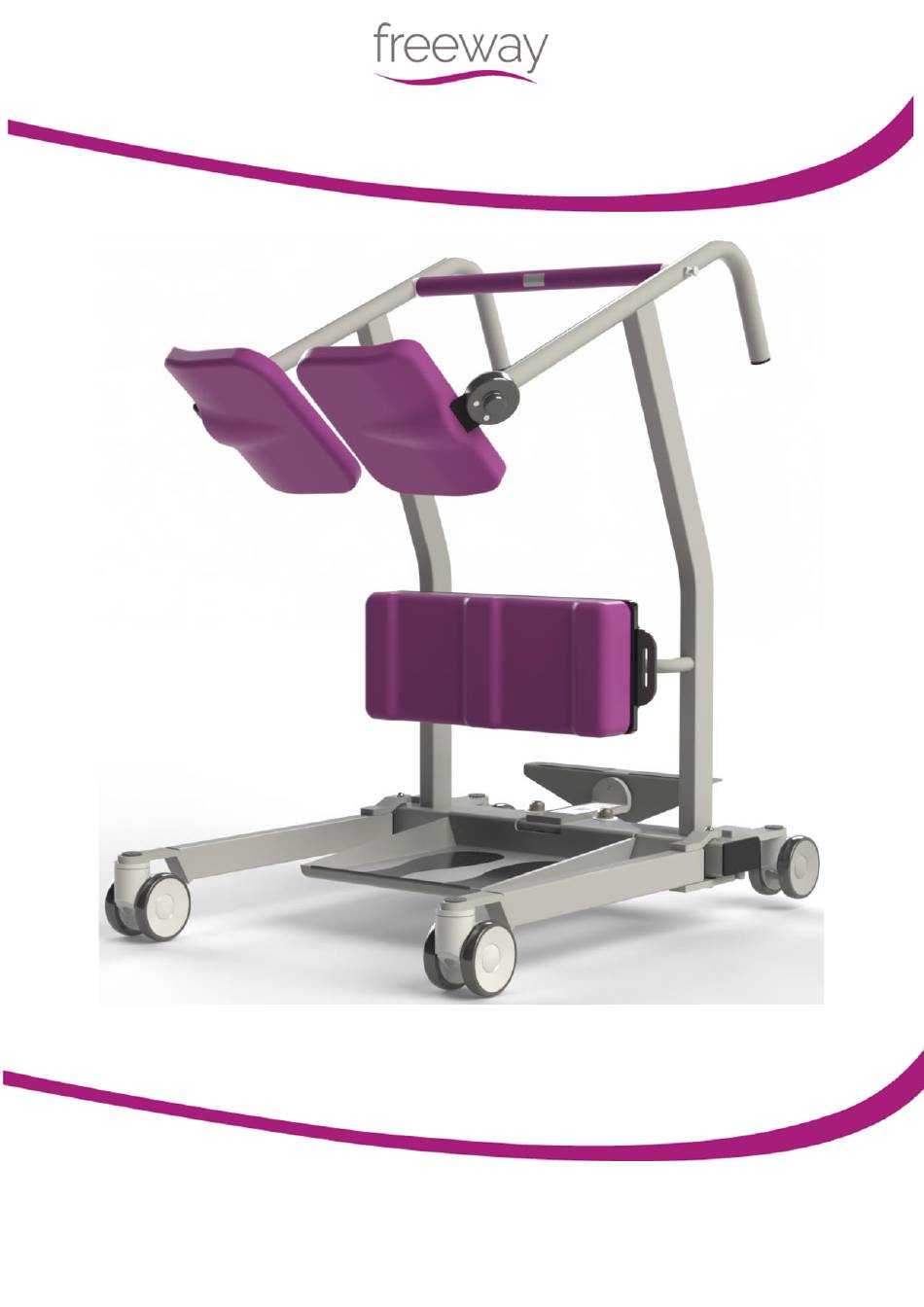

- Page 1 TA180 Transfer Aid User Manual Doc Ref: 999062- en-gb Rev D 29/07/24...
-
Page 2: Table Of Contents
Slings ............................................. 11 4 . 4 . 1 Compatiable Belt Types ......................................11 Technical Specification ................................. 12 5 . 1 TA180 Dimensions ......................................12 5 . 2 Specifications ........................................13 5 . 3 Standards Applied ......................................13 Environmental Conditions ..............................13 6 . -
Page 3: Introduction
Intended Use The Freeway TA180 is a sit to stand platform, designed to facilitate active, safe, and comfortable transfers for user. It is ideal for short-distance transfers, such as from bed to chair or from a chair to the bathroom. -
Page 4: Symbols Used
1 . 4 Symbols Used The table below includes all symbols from BS EN ISO 15223-1:2021 that can be found in this manual and on the product and what they represent. Refer to this table when you are unsure of what a symbol represents. Catalogue Number Place of Manufacture Serial number... -
Page 5: Contraindications / Limitations
The TA180 is intended to be used on a flat and levelled surface during use. • The TA180 is less stable on a sloping surface, never exceed a sloping surface of 5°, and always take great care during use on a sloping surface. - Page 6 There is a risk of explosion if the transfer aid is used in the presence of flammable anaesthetics. • Your TA180 is for human transfer. Do not use it, or allow it to be used, for any other purpose. •...
-
Page 7: Configurations And Key Components
2 . 2 Key Components Please see below to familiarise yourself with the components of the TA180 transfer aid. The images below show the contents of theTa180. If you have not received all the components contact your local dealer immediately –... -
Page 8: Assembly Instructions
Assembly Instructions The sections below will give detailed instructions on how to assemble and commission the TA180. These instructions must be adhered to for a successful and safe assembly. If you are unsure of any processes, always seek advice. 3 . 1... -
Page 9: Operating Instructions
Operating Instructions Appropriate training in lifting and handling procedures should be undergone by any person operating a TA180 transfer aid, for their own and the client’s safety and comfort 4 . 1 Alter the Lege Width The legs on the base unit of the transfer aid are operated by adjusting the leg lever plate, as shown in the photo below. -
Page 10: Operating Seat Pads
4 . 3 Applying the Brakes Operate the TA180 transfer aid brakes, in the following way to activate and deactivate the brakes: To activate the rear castor brakes, take your foot and push down vertically on the brake lever. (Shown in Figure 13). -
Page 11: Slings
BS EN ISO 10535 before its use. The belts with a safe working load of 185 kg that can be used with the Freeway TA180 are shown below in Table 3, complete with product codes. For all components, the lowest maximum safe working load must always be adhered to. -
Page 12: Technical Specification
Technical Specification 5 . 1 TA180 Dimensions TA180 Dimensions - Millimetres Dimensions (Ref to drawing) Transfer Aid A – Overall Height 1021 B – Overall Length C – Overall External Width Legs Closed D – Internal Width Legs Closed E – Maximum Internal Width Legs Open F –... -
Page 13: Specifications
5 . 2 Specifications TA180 Specifications Safe Working Loads Freeway TA 180 – Standard Foot Tray 185kg Freeway TA 180 – Wide Foot Tray 185kg Component Weights Product weight 40kg Package weight 42kg Standard Foot Tray 5.5kg Wide Foot Tray 7.1kg... -
Page 14: Shipping And Storage Conditions
6 . 2 . 1 Shipping and Storage Conditions -25°C to +5°C (-13ºF to 41ºF) with any humidity level. +5°C to +35°C (41°F to 95°F) at a relative humidity up to 90%. +35°C to 70°C non-condensing at a water vapour pressure up to 50hPa. 12 Hours are required for the transfer aid to cool from the maximum storage temperature until ready for its intended use when the ambient temperature is 20°C (68°F). -
Page 15: Cleaning
Cleaning To reduce the risk of cross-contamination it is recommended to clean the transfer aid and accessories before use by a different person. Please follow the recommended cleaning guidelines below on cleaning and disinfecting the transfer aid. 8 . 1 General Cleaning For cleaning, the frame can be cleaned using a damp cloth, soap/water, and antibacterial spray. -
Page 16: Servicing
Table 8-3-1 • Dilution is made with water. DO NOT dilute within any other medium. • When diluted in water, one tablet gives 1000ppm of available chlorine. • The concentration of the solution depends upon whether the object being cleaned is noticeably dirty (indicated in the table by “Product condition”. -
Page 17: Troubleshooting
Troubleshooting Should a problem arise with the use of the transfer aid, review the table below. Find the fault and complete the recommended solution. If the fault is not listed below or the solution does not correct the problem, contact your local authorised dealer immediately –... -
Page 18: Warranty
Warranty It is impossible for all the risks to be eliminated from use of this product, but to reduce risk and improve safe and proper use, the user should always read and understand the user manual before use. Product failure may occur due to lack of maintenance and care, misuse, unauthorised and improper servicing or alterations, improper storage, and environmental use, or through normal use wear and tear. -
Page 19: Service Record History
Service Record History Complete this section after each service, repair inspection and/or maintenance. Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐... - Page 20 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
- Page 21 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
- Page 22 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
- Page 23 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
- Page 24 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
- Page 25 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
- Page 26 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
- Page 27 Date: Time: Service Inspection ☐ Repair ☐ Other ☐ Service Type: Completed By: …………………………………………………. (Printed name) ……………………………………………………………… (Signature) Company: ……………………………………………………………………………………………………………………………………………………………………………... Remarks & Actions Taken: Product Left in A Safe & Usable Condition: Yes ☐ No ☐ (if no explain in actions above) Date: Time: Service Inspection ☐...
- Page 28 Dealer/service contact details: Contact details: Prism Medical UK Unit 1, Tir Llwyd Industrial Estate St Asaph Avenue, Kinmel Bay, Conwy LL18 5JZ 01924 840 100 www.prismmedical.co.uk Disclaimer While every effort has been made to ensure the accuracy of information contained in this manual, no liability can be accepted by Prism Medical UK for any errors or omissions.
