Summary of Contents for FREEWAY SA180C

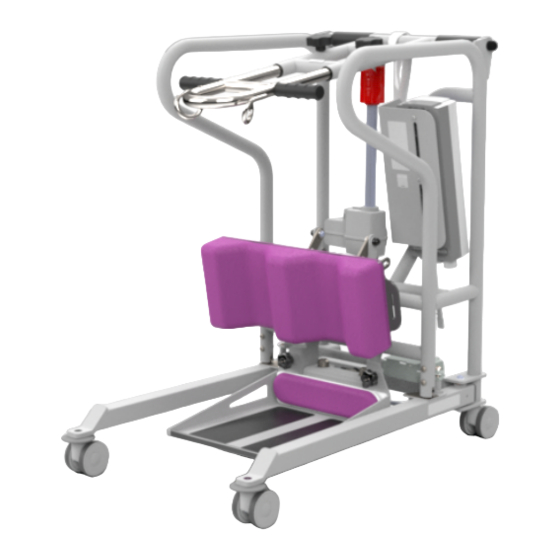

- Page 1 SA180C Stand Aid User Manual Doc No. 999066 Revision of document: A Revision Date: 19.04.21...
-
Page 2: Table Of Contents
Removing battery pack: ..........................16 Knee pad adjustment ............................... 16 5.10 Removing the footplate ............................16 5.11 Slings ................................... 17 Technical Specification ..............................18 SA180C Dimensions ..............................18 Specifications ................................19 | 2 of 32 999066 – Revision A P a g e... - Page 3 Electrical specifications ............................. 19 Standards Applied ..............................19 Environmental - Storage and Operating Conditions ...................... 20 Normal operating conditions ............................ 20 Shipping and storage conditions ..........................20 Disposal..................................20 Fault Finding ................................. 21 GENERAL INSPECTION, MAINTANENCE AND CLEANING .................... 22 10.1 Service .................................
-
Page 4: Safety Instructions And Warnings
Please read and understand this manual in its entirety before using your Freeway SA180C Stand Aid. The information in this manual is important for the safety of anyone near the Freeway SA180C Stand Aid and must be read and understood to help prevent injuries. It is also crucial to the proper operation and maintenance of the Stand Aid. -
Page 5: Symbols Used
1.2 Symbols Used The Table below includes all Symbols from BS EN ISO 15223-1:2016 that can be found in this Manual and on the Product and what they represent. Refer back to this Table when you are unsure of what a symbol represents. Consult instructions before use Caution –... -
Page 6: Contraindications / Limitations
Carrying out each transfer correctly for minimal strain or risk to the caregiver, while providing complete safety, dignity and comfort to the client. The Freeway SA180C is suitable for patients in the sitting position only, who have a degree of weight- bearing ability but require assistance to stand. -
Page 7: Warning Notes
2. ALL Stand Aids are dangerous to the person being transferred when used recklessly or pushed at speed. 1.6 Operating Environment The Freeway SA180C is suitable for use within the professional health care facility environment as well as the home health care environment. The Stand Aid is not suitable for any special environments. -
Page 8: Components / Key Parts
COMPONENTS / KEY PARTS Please see below to familiarise yourself with the components of the Freeway SA180C Stand Aid. The images below show the contents of the Stand Aid. If you have not received all the components, contact your Prism Medical UK dealer immediately –... -
Page 9: Assembly Instructions
Using a knife to open the box around the perimeter, the box should open, remove the internal packaging to access the product. It will include all the following components. It is recommended that the components are removed in the numerical order below. 1. Full Assembly of the Freeway SA180C Stand Aid 2. Handset 3. -
Page 10: Electrical Connections
3.3 Electrical connections Connect all the cables to the control box as shown in the pictures opposite. A. Connect the lift actuator cable connector to the second port (marked No. 1) from the left side of the control box (as shown in Fig. 2). Figure 2 B. -
Page 11: Operating Instructions
Figure 6 5.2 Raising and Lowering The up and down movement of the lifting arm on the Freeway SA180C Stand Aid is achieved by an electric actuator which is controlled by hand control. The hand control has two buttons with directional arrows up and down. -
Page 12: Emergency Stop Button
5.4 Emergency stop button The Freeway SA180C Stand Aid is fitted with an Emergency Stop button. Push the Emergency Stop button (as shown in Fig. 10) to cut all power on the Stand Aid. Figure 10 To resume power, release the emergency stop button by turning in a clockwise direction (indicated by arrows on the Emergency Stop button) as shown in Fig. -
Page 13: Battery Status
5.6.1 Battery Status - Handset Battery State Indication Comment The battery is OK - no need for charging (100-50%) the third LED is green The battery needs to be charged (50-25%) the second LED is yellow The battery needs to be charged (less than 25%) The buzzer sounds when a button is pressed The first LED is yellow The battery needs to be charged. -
Page 14: Charging The Battery Pack
5.7.1 Charging the battery pack The battery pack can be recharged via mains lead (terminated with a figure of eight plug) A. Fit the mains lead figure of eight plug into charger link cable (see Fig. 15). B. Plug the 3-pin mains plug into a suitable mains outlet and switch the mains supply on. -
Page 15: Battery Control Box Display
5.8 Battery Control Box Display The Table below provides information on all Symbols seen on the Control Box display and what they represent. Refer to this table when unsure of a Symbol displayed on the Control Box. Control box feature Symbol Comment When the mains cable is plugged in and a control button is activated... -
Page 16: Removing Battery Pack
5.8.2 Removing battery pack: The battery pack has an option to remove the battery pack for replacement or servicing requirements. A. Take your hand and grab onto the top of the battery by the use of its handle. Figure 17 B. -
Page 17: Slings
BS EN ISO 10535 before its use. The slings with a safe working load of 180kg that can be used with the Freeway SA180C stand aid are shown below in Table 3, complete with product codes. -
Page 18: Technical Specification
TECHNICAL SPECIFICATION 6.1 SA180C Dimensions All dimensions below are shown in millimetres. Figure 27 Figure 28 | 18 of 32 999066 – Revision A P a g e... -
Page 19: Specifications
6.2 Specifications Dimensions Turning Circle 915mm Overall Height 1430mm Overall Width 530mm Ground Clearance 50mm Front and Rear Castors Size 75mm Table 8 Weights: Safe Working Load (SWL) 180 kg Full Product 52kg Table 9 Operational Forces Moving Force (with 180 kg) 105 N Moving Force (with 0 kg) 20 N... -
Page 20: Environmental - Storage And Operating Conditions
ENVIRONMENTAL - STORAGE AND OPERATING CONDITIONS The SA180C is intended for internal use within normal environmental conditions. It is not intended to be used in environments where there are rapid changes in the environmental temperature and humidity during intended use. -
Page 21: Fault Finding
FAULT FINDING If a problem arises with the Stand Aid, the Table below will hopefully assists in determining the fault and what actions you can take. If the fault cannot be found or the fault is found and the action guide does not provide a fix (e.g. – a damaged wire would need replacement), contact your local Prism Medical UK authorized dealer immediately, a service engineer will be required to repair the Stand Aid. -
Page 22: General Inspection, Maintanence And Cleaning
10.1 Service No service is to be carried out on the Freeway SA180C while transferring a person to reduce the risk of injury. Service must be completed by a Prism Medical UK authorised Service Engineer. Do not attempt to service the product yourself, or warranty is void. -
Page 23: Cleaning
The exterior of the Freeway SA180C can be cleaned using a damp soapy cloth for general cleaning duties. Please ensure the cloth is damp and not wet. Ensure the exterior of the device is dry after cleaning. Dry using a clean dry cloth. - Page 24 Dilution chart Product used as Device condition Concentration Dilution qty* (l) Tablets per 1l Contact time (ppm) (0.26gal) (minutes) Bactericidal Clean 5 (1.32gal) Dirty 1000 1 (0.26gal) Yeasticidal Clean 5 (1.32gal) Dirty 1000 1 (0.26gal) Fungicidal Clean 2000 1 (0.26gal) Dirty 5000 1 (0.26gal)
-
Page 25: Warranty
This guarantee does not affect or in any way limit your Statutory Rights. 1. Prism Medical UK guarantees the Freeway SA180C, supplied as new, against failure within the period of 36 months from the date of purchase by virtue of defects in material or workmanship. (Excluding Batteries) 2. -
Page 26: Service Record History
SERVICE RECORD HISTORY Complete this section after each service, repair inspection and/or maintenance. | 26 of 32 999066 – Revision A P a g e... - Page 27 | 27 of 32 999066 – Revision A P a g e...
- Page 28 | 28 of 32 999066 – Revision A P a g e...
- Page 29 | 29 of 32 999066 – Revision A P a g e...
- Page 30 User notes: | 30 of 32 999066 – Revision A P a g e...
- Page 31 User notes: | 31 of 32 999066 – Revision A P a g e...
- Page 32 Dealer/service contact details: Manufacturer contact details: Prism Medical UK Address: Unit 1 • Tir Llwyd Industrial Estate • St Asaph Avenue • Kinmel Bay • Conwy • LL18 5JZ Telephone Number: 01924 840100 Disclaimer While every effort has been made to ensure the accuracy of information contained in this user manual, no liability can be accepted by Prism Medical UK for any errors or omissions.
