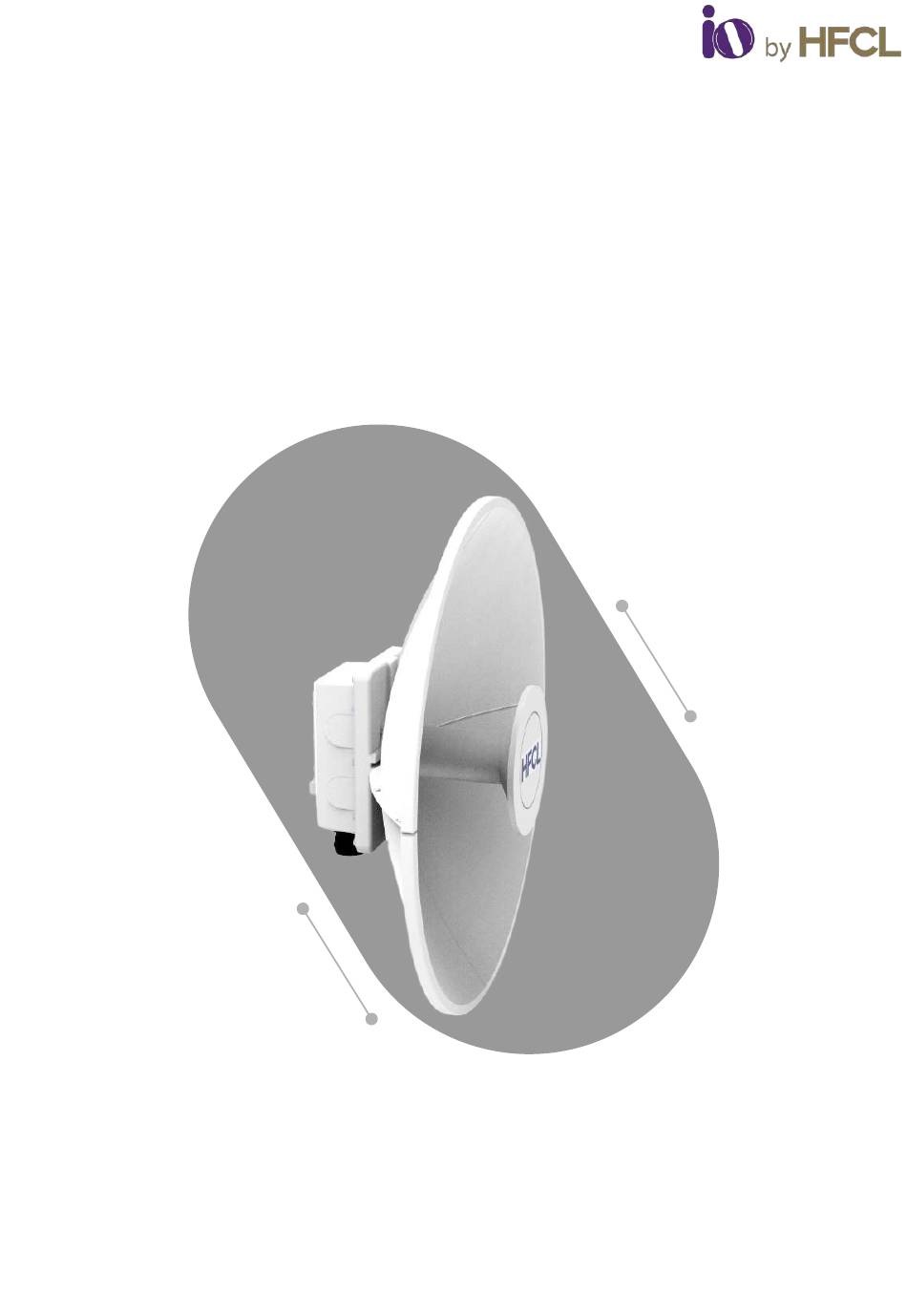

- Page 1 Quick Start Guide UNLICENSED BAND RADIO Point to Point High Capacity Radio ion4xl3 (Split Dish)
- Page 2 ANYWHERE EVERYWHERE...
-
Page 3: Packaging Content
Introduction Thank you for purchasing our Unlicensed Band Radio (UBR). IO enterprise/carrier grade P2P solution is designed to serve highly critical enterprise applications in unlicensed 5 GHz spectrum for short-range and long-range links. Packaging Content 2x2 UBR with Feed Cone Split Dish feed horn (Qty:1) (Qty:1) -
Page 4: Product Specifications
Product Specifications Peak Throughput Up to 1 Gbps Aggregate UL/DL Throughput (Aggregate) Radio Mode 2X2 MIMO Modulation Upto 1024 QAM Channel Bandwidth 20/40/80 MHz Wireless QoS 802.11e WMM Wireless Security WPA, WPA2 and WPA3 (Personal and Enterprise) and 256-bit AES PSK with Hardware Acceleration Power Supply IEEE 802.3at 48V... -
Page 5: Product Overview
Product Overview Earthing Point Split Dish Antenna LAN + PoE Port to power up the device using PoE adaptor and a regular Ethernet Cable... -
Page 6: Installation & Setup
Installation Set-up The mounting bracket is designed in such a way that UBR can be mounted on the pole with the help of its attaching parts. It provides freedom of movement to the UBR for link alignment even after mounting. Align the rivets in a dish petal with keyholes of the adjacent dish petals and join them together to form a dish. - Page 7 Turn the cone clockwise to tighten with the feed. Refer to the image below: Use four SEMS screws and attach the outer U clamp with the UBR. Refer to the image below:...
- Page 8 Attach pole clamp assembly with riveted U clamp with the help of three M6 hex bolts and split lock washers. Attach the outer U clamp to the riveted U clamp assembly with the help of three M6 hex bolts and split lock washers.
- Page 9 Once UBR is assembled, the next step is to mount it on the pole using two M8 x 220 threaded rods, four split spring lock washers and flat washers. To avoid the water ingress, give “Drip Loop” in the cable, as illustrated below. Drip Loop Drip Loop...
- Page 10 For Link Alignment Slightly loosen M6 bolts, rotate brackets to align the pointer mark, at an optimum angle to set the azimuth and elevation. Once the desired setting is attained, securely tighten the six bolts using a compatible spanner. Note: Angle marking for azimuth adjustment &...
- Page 11 Configure a computer with a 1-domain static IP address. e.g. 192.168.1.X and a subnet mask of 255.255.255.0. Laptop/ Computer PoE Adapter (48V) Note: For powering on UBR, only use HFCL PoE adapter. Note: Plug and Adaptor will vary by country/region.
- Page 12 The default static IP address for 2x2 UBR is set to “192.168.1.1” A login screen will appear Enter the default login credential details: User- admin, Password- HFcl!@23#ion Refer to our user manual on our website io.hfcl.com for detailed information to configure UBR...
- Page 13 Step 2: Check the LED status STATUS LED COLOR Green LED Green color notifies the user that the device is powered ON (Power Indication) Single Blink: -1 to -50 dBm Double Blink: -51 to -60 dBm Blue LED Triple Blink: Lesser than -60 dBm (RSSI/Link Indication) NOTE: If link is down, then link LED will be in continuous OFF State.
-
Page 14: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the UBR Do not power the device during installation Do not subject the device to high temperatures Keep away from high-voltage cables Do not power off the unit in the middle of an upgrade process The gland should be ground facing all the time Make sure the earthing wire is connected properly to the earthing point... - Page 15 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
