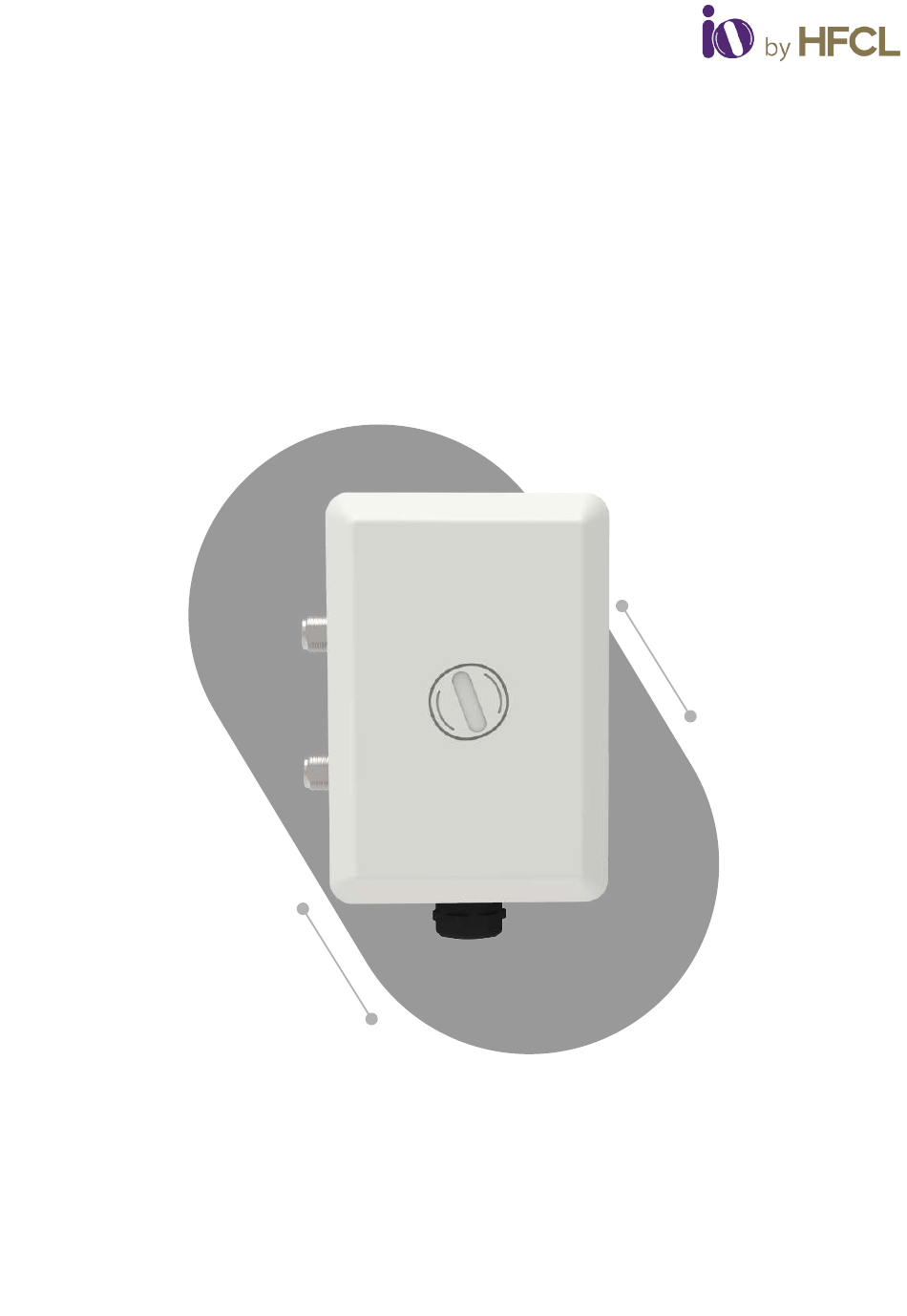

- Page 1 Quick Start Guide Unlicensed Band Radio High Capacity Radio ion4xle/ion4xle_ext...
- Page 2 ANYWHERE EVERYWHERE...
- Page 3 Introduction Thank you for purchasing our Unlicensed Band Radio (UBR). IO enterprise/carrier grade P2P solution is designed to serve highly critical enterprise applications in unlicensed 5 GHz spectrum for short-range and long-range links. Packaging Content 2x2 UBR (Qty:1) Mounting Kit Pole Clamp (Qty:1), L Plate (Qty:1), U bolt with 4 Hex Nuts (M6) (Qty:1), SEMS Screw (Qty:4), Hex Nuts (4)
-
Page 4: Product Specifications
Product Specifications Peak Throughput (aggregate) Up to 1 Gbps Aggregate UL/DL Throughput Radio Mode Modulation Upto 1024 QAM Channel Bandwidth 20/40/80 MHz Wireless QoS 802.11e WMM Wireless Security WPA, WPA2, WPA3 - Personal and Enterprise and 256-bit AES PSK with hardware acceleration Power Supply IEEE 802.3 at -48V... -
Page 5: Product Overview

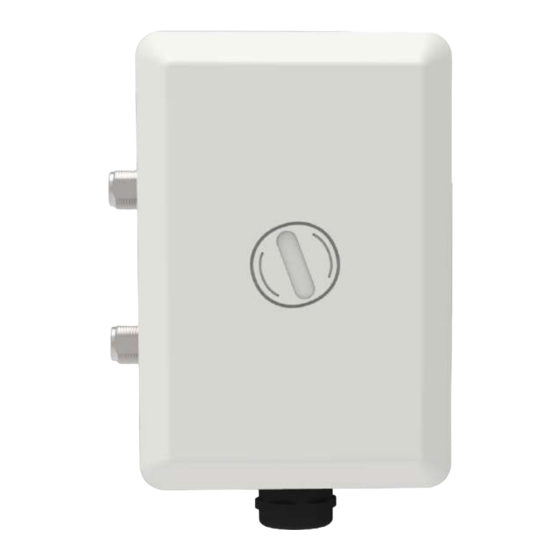

Product Overview LAN + PoE Port (with gland) Power up the device using PoE adaptor and a regular Ethernet Cable N Type Connectors Earthing Point... -
Page 6: Installation & Setup
Installation Set-up The 2x2 UBR has four threaded holes on its rear side specifically designed for affixing the mounting bracket. This mounting bracket is designed to facilitate easy pole mounting by utilizing its components. Align the L Plate with the holes at the back of UBR and use provided SEMS screws to fix it. - Page 7 Pass the U-bolt along with the hex nuts through the pole clamp, as depicted in the image below.
- Page 8 Secure the U-bolt firmly to affix it onto the pole by tightening the hex nuts, as demonstrated in the image below.
- Page 9 RF cable, as illustrated in the image below. To avoid the water ingress, give “Drip Loop” in the cable, as illustrated below Drip Loop Drip Loop WARNING: HFCL cannot be held liable for any damages incurred during the process.
- Page 10 Connect the other end of the ethernet cable to the data port on the PoE adapter. Connect UBR’s PoE-supported ethernet port to the PoE adapter power port. The device will be powered on. For powering on UBR, only use HFCL PoE adapter. Note: Plug and Adaptor will vary by country/region.
- Page 11 The default static IP address for 2x2 UBR is set to “192.168.1.1”. A login screen will appear Enter the default login credential details: User- admin, Password- HFcl!@23#ion Refer to our user manual on our website io.hfcl.com for detailed information to configure UBR.
- Page 12 Step 2: Check the LED status STATUS LED COLOR Green LED Green color notifies the user that the device is powered ON (Power Indication) Single Blink: -1 to -50 dBm Double Blink: -51 to -60 dBm Blue LED Triple Blink: Lesser than -60 dBm (RSSI/Link Indication) NOTE: If the link is down, then the link LED will be in continuous OFF State.
-
Page 13: Safety Precautions
Safety Precautions Observe the following safety precautions to avoid damage to the UBR Do not power the device during installation Do not subject the device to high temperatures Keep away from high-voltage cables Do not power off the unit in the middle of an upgrade process The gland should be ground facing all the time Make sure the earthing wire is connected properly to the earthing point... - Page 14 | io.hfcl.com Contact Us: 8, Commercial Complex, Masjid Moth, Greater Kailash-II, New Delhi- 110048 HFCL Limited All Rights Reserved. HFCL and io by HFCL are trademarks or registered trademarks of HFCL Ltd. Specifications are subject to change without notice.
