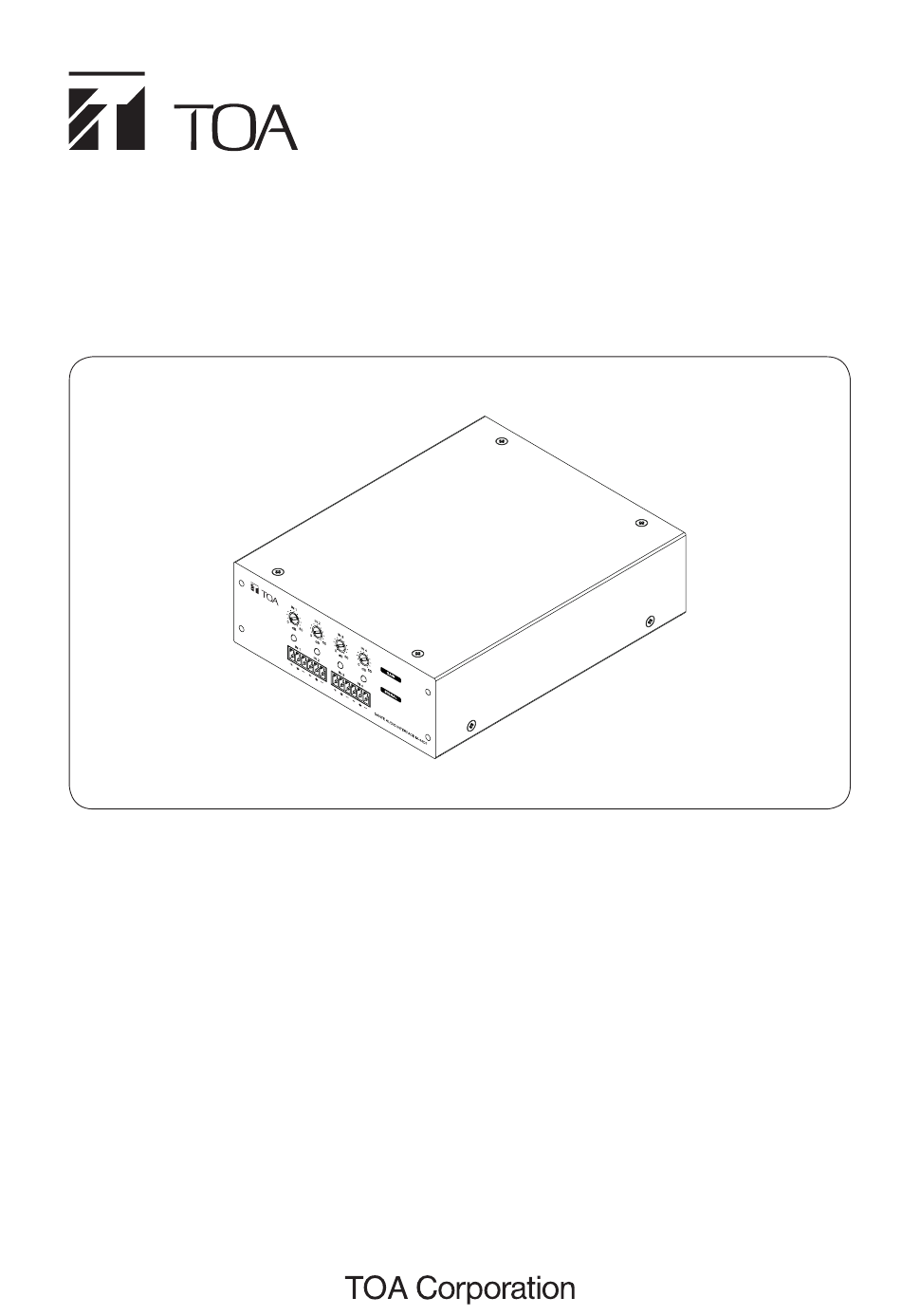

DANTE AUDIO INTERFACE

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS .............................2
2. GENERAL DESCRIPTION ...........................3
3. FEATURES ...................................................3
4. HANDLING PRECAUTIONS ........................3
Thank you for purchasing TOA's Dante Audio Interface.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
OPERATING INSTRUCTIONS
M-44DT-AM
6. CONNECTION EXAMPLE ............................5
7. RACK MOUNTING ....................................... 6
9. SPECIFICATIONS ........................................8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-44DT-AM and is the answer not in the manual?

Questions and answers

Related Manuals for Toa M-44DT-AM

Summary of Contents for Toa M-44DT-AM

  • Page 1: Table Of Contents

    8. DANTE NETWORK CONFIGURATION ..7 4. HANDLING PRECAUTIONS ......3 9. SPECIFICATIONS ........8 5. NOMENCLATURE AND FUNCTIONS ..4 Thank you for purchasing TOA's Dante Audio Interface. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Safety Precautions

    AC outlet and generate and result in a fire. contact your nearest TOA dealer. Make no further • Use the AC adapter supplied with the unit. Note attempt to operate the unit in this condition as this that the use of an adapter other than specified may may cause fire or electric shock.

  • Page 3: Emc Precautions

    - Consult the dealer to an experienced radio/TV technician for help. 2. GENERAL DESCRIPTION TOA's M-44DT is a Dante audio interface with 4 inputs and 4 outputs that seamlessly connects amplifiers, mixers, digital microphones and other devices on a Dante network.

  • Page 4: Nomenclature And Functions

    5. NOMENCLATURE AND FUNCTIONS [Front] [Rear] 1. Input 1-4 terminal 7. Power Indicator -50 - 0 dBV, 4.4 kΩ, electronically balanced, Lights blue when the power switch (6) is switched removable terminal block. 2. Input 1-4 gain control 8. Output 1-4 terminal Adjusts gain of the input 1-4, adjustment range 0 dBV, 10 kΩ, electronically balanced, removable 0-50dB.

  • Page 5: Connection Example

    6. CONNECTION EXAMPLE Note: When connecting the cables, turn off the power of the unit to prevent static electricity from causing it to work abnormally. 6.1. M-44DT interconnection M-44DT (1) M-44DT (2) Router Audio Device Audio Device Amplifier Amplifier AC adapter AC adapter Speaker Speaker...

  • Page 6: Rack Mounting

    7. RACK MOUNTING Step 1. Install the M-44DT to the RACK MOUNTING PANEL with screws. Note: Up to 3 M-44DTs can be installed on one RACK MOUNTING PANEL. Step 2. Screw the RACK MOUNTING PANEL to the EIA rack. DANTE AUDIO INTERFACE M-44DT Mounting screws (accessory for RACK MOUNTING PANEL)

  • Page 7: Dante Network Configuration

    8. DANTE NETWORK CONFIGURATION Step 1. Install Dante Controller on the computer. Step 2. Connect the M-44DT to the network. Step 3. Open Dante Controller for routing configuration. Note: When more than 2 devices are connected to the Dante network, the Multicast Flow function of M-44DT needs to be enabled.

  • Page 8: Specifications

    Note: The design and specifications are subject to change without notice for improvement. Manufacturer: TOA Corporation 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan Traceability Information for Americas Authorized representative: TOA Canada Corporation 3670 Odyssey Drive, Unit 1, Mississauga, ON L5M 0Y9, Canada TEL: +1-800-263-7639 www.toacanada.com 202405...
