quad
MODEL :
TM630 / TM631 / TM632 / TM638
TM640 / TM641 / TM642 / TM648
AC: 100 – 240V
0.36A @ 100Vac / 0.19A @ 240Vac
DC: 12V
1 x 12V
+
-
STD / AGM-MF / GEL
Pb
4 - 60Ah
hour charge).
1 x 12.8V
+
-
LiFePO
4
LFP
1.25 - 15Ah
12 hour charge).

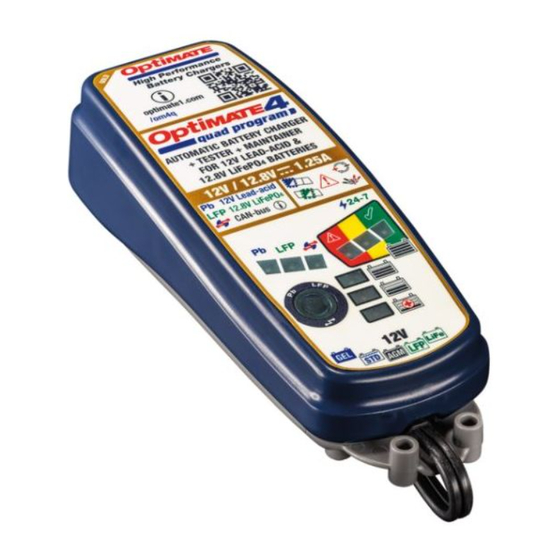

Automatic charger for 12V lead-acid & 12.8V LiFePO
12V plomb-acide & 12.8V LiFePO
• Batterien Caricabatterie automatico per batterie 12V piombo-acido & 12.8V LiFePO
Ladegerät für 12V Blei-Säure & 12.8V LiFePO
Lithium accu's • Caricabatterie automatico per batterie al piombo-acido da 12V e LiFePO4 da 12,8V •
Automatisk underhållsladdare för 12V batterisyra-/12,8V Lithium batterier • Automatická Údržbová
nabÍječka pro 12V olovo-kyselinové / 12.8V Lithiové
copyright © 2023 TecMate International – TM630-631-632-638-640-641-642-648-IN1-230424
program
50-60Hz
1.25A
(max. Ah based on 48
(max. Ah based on
• Cargador automático para baterías 12V plomo-ácido & 12.8V LiFePO
4
• Automatische onderhoudslader voor 12V Loodzuur-/12,8
4
INSTRUCTIONS FOR USE
IMPORTANT: Read completely
before charging
MODE D'EMPLOI
IMPORTANT: à lire avant
d'utiliser l'appareil
MODO DE EMPLEO
IMPORTANTE: a leer antes de
utilizar el aparato
INSTRUÇÕES DE UTILIZAÇÃO
IMPORTANTE: Ler antes de
utilizar.
ANWENDUNGSVORSCHRIFTEN
WICHTIG: Vollständig vor der
Benutzung lesen
GEBRUIKSAANWIJZING
BELANGRIJK: Lees volledig voor
gebruik
ISTRUZIONI PER L'USO
IMPORTANTE: da leggere prima
di utilizzare l'apparecchio
INSTRUKTIONER
VIKTIGT: Läs hela innan du
använder apparaten.
INSTRUKCE PRO POUŽIT.
DŮLEŽIT: Přečtěte si pozorně
před použit.m
batteries • Chargeur automatique pour batteries
4
CZ
4
• Automatische
4
Advertisement
Related Manuals for TecMate Optimate 4 TM630
Summary of Contents for TecMate Optimate 4 TM630
- Page 1 Lithium accu’s • Caricabatterie automatico per batterie al piombo-acido da 12V e LiFePO4 da 12,8V • Automatisk underhållsladdare för 12V batterisyra-/12,8V Lithium batterier • Automatická Údržbová nabÍječka pro 12V olovo-kyselinové / 12.8V Lithiové copyright © 2023 TecMate International – TM630-631-632-638-640-641-642-648-IN1-230424...
- Page 2 LFP 12.8V LiFePO CAN-bus 24-7 1a 1b LiFe S.O.H. TEST - (Program 1 & 2) 12.0V 12.20V 12.40V 12.50V 12.70V 13.00V S.O.H. TEST - LFP (LiFePO (Program 3 & 4) 9.6V 12.80V 13.00V 13.13V 13.22V 13.60V...
- Page 3 O-1 permanent battery lead – charge battery in the vehicle • Câble de batterie permanent O-1 - charge la batterie dans le véhicule • Cable de batería permanente O-1 - cargue la batería en el vehículo • Cavo batteria permanente O-1 - caricare la batteria nel veicolo • O-1 permanentes Batteriekabel - Batterie im Fahrzeug aufladen •...
- Page 4 O-19 adapter with DIN/ISO 4165 plug • Adaptateur-prolongateur O-19 avec fiche DIN/ISO 4165 • Adaptador- extensor O-19 con enchufe DIN/ISO 4165 • O-19 adaptador-extensor com plugue DIN/ISO 4165 • O-19 Adapter- Extender mit DIN/ISO 4165 Stecker • O-19 adapter-extender met DIN/ISO 4165-stekker • Adattatore-estensore O-19 con spina DIN/ISO 4165 •...
-
Page 5: Important Safety
IMPORTANT SAFETY program quad INSTRUCTIONS - SECTION A. SAVE THESE INSTRUCTIONS. IT IS OF THE UTMOST IMPORTANCE THAT EACH TIME, BEFORE USING THE BATTERY CHARGER, YOU COMPLETELY FAMILIARIZE YOURSELF WITH THESE SAFETY INSTRUCTIONS. AUTOMATIC BATTERY CHARGER FOR 12V LEAD-ACID & 12.8V LiFePO BATTERIES. - Page 6 5. CHARGER LOCATION: a) Do not operate charger in a closed-in area or restrict ventilation in any way. b) Locate charger as far away from battery as DC cables permit. c) Never place charger directly above battery being charged; gases from battery can corrode and damage the charger. d) Never allow battery acid to drip on charger when reading gravity or filling battery.
-
Page 7: Connection Accessories
metal part of the frame or engine block. g) When disconnecting charger, turn switches to off, disconnect AC cord, remove clip from vehicle chassis, and then remove clip from battery terminal. h) See operating instructions for length of charge information. FOLLOW THESE STEPS WHEN BATTERY IS OUTSIDE OF THE VEHICLE OR HAS BEEN REMOVED FROM THE VEHICLE. - Page 8 C. PROCEEDING TO CHARGE SELECTING A CHARGE PROGRAM: OptiMate4 Quad program has four selectable charge programs. A charge program must be selected before making connection to a battery. Each program has unique charge and test parameters to match the battery's chemistry and connection method to the battery. The selected program remains in memory after disconnection from the battery, or if AC power is interupted, or until a new selection is made.
- Page 9 others, or hissing sounds. If at any time the battery is uncomfortably hot to touch or you notice any unusual signs, DISCONNECT THE CHARGER IMMEDIATELY. CHARGING TIME : Charge time on a flat but otherwise undamaged battery: a 12Ah battery should take no more than about 12 hours to progress to the self-discharge check.
- Page 10 STEP 4 & 5 Charge time : Program 1 & 2: 15min to 2hrs. Program 3 & 4: up to 6 hours. SAVE - LED #3 IMPORTANT: Read section VERY FLAT NEGLECTED BATTERIES prior. A battery diagnosed as deep discharged undergoes a multi-step reconditioning process appropriate for the selected battery chemistry and connection method (direct / CAN-bus), is tested to confirm it's state of health before proceeding to STEP 6.
- Page 11 STEP 9 MAINTENANCE CHARGE: LED #6 / 7 / 8 steady on according to state of charge measured during STEP 8. OptiMATE Float voltage setting: 13.6V. The general maintenance program consists of 30 '365' MAINTAIN minute float charge periods, followed by and alternating with 30 minute ‘rest’ LED #6 / 7 / 8 periods, during which there is no charge delivered.
-
Page 12: Limited Warranty
0.024kWh or less per day. LIMITED WARRANTY TecMate (International) SA, B-3300 Tienen, Belgium, offers this limited warranty to the original purchaser at retail of this product. This limited warranty is not transferable. TecMate (International) warrants this battery charger for three years from date of purchase at retail against defective material or workmanship. - Page 13 LFP 12.8V LiFePO CAN-bus 24-7 1a 1b LiFe S.O.H. TEST - (Program 1 & 2) 12.0V 12.20V 12.40V 12.50V 12.70V 13.00V S.O.H. TEST - LFP (LiFePO (Program 3 & 4) 9.6V 12.80V 13.00V 13.13V 13.22V 13.60V...
- Page 14 MOUNTING NOTICE NOTICE DE MONTAGE NOTA PARA EL MONTAJE • • • NOTA DA MONTAGEM WANDMONTIERUNG MUURBEVESTIGING NOTA • • • DEL MONTAGGIO VÄGGMONTERING MONTÁŽNÍ UPOZORNĚNÍ • • 4.5mm / 3/16” L ≥ 25mm / 1” 1.8m / 6ft max. 1.8m / 6ft 4.6m / 15ft optimate1.com...
