Summary of Contents for EKKO EP15JLIC

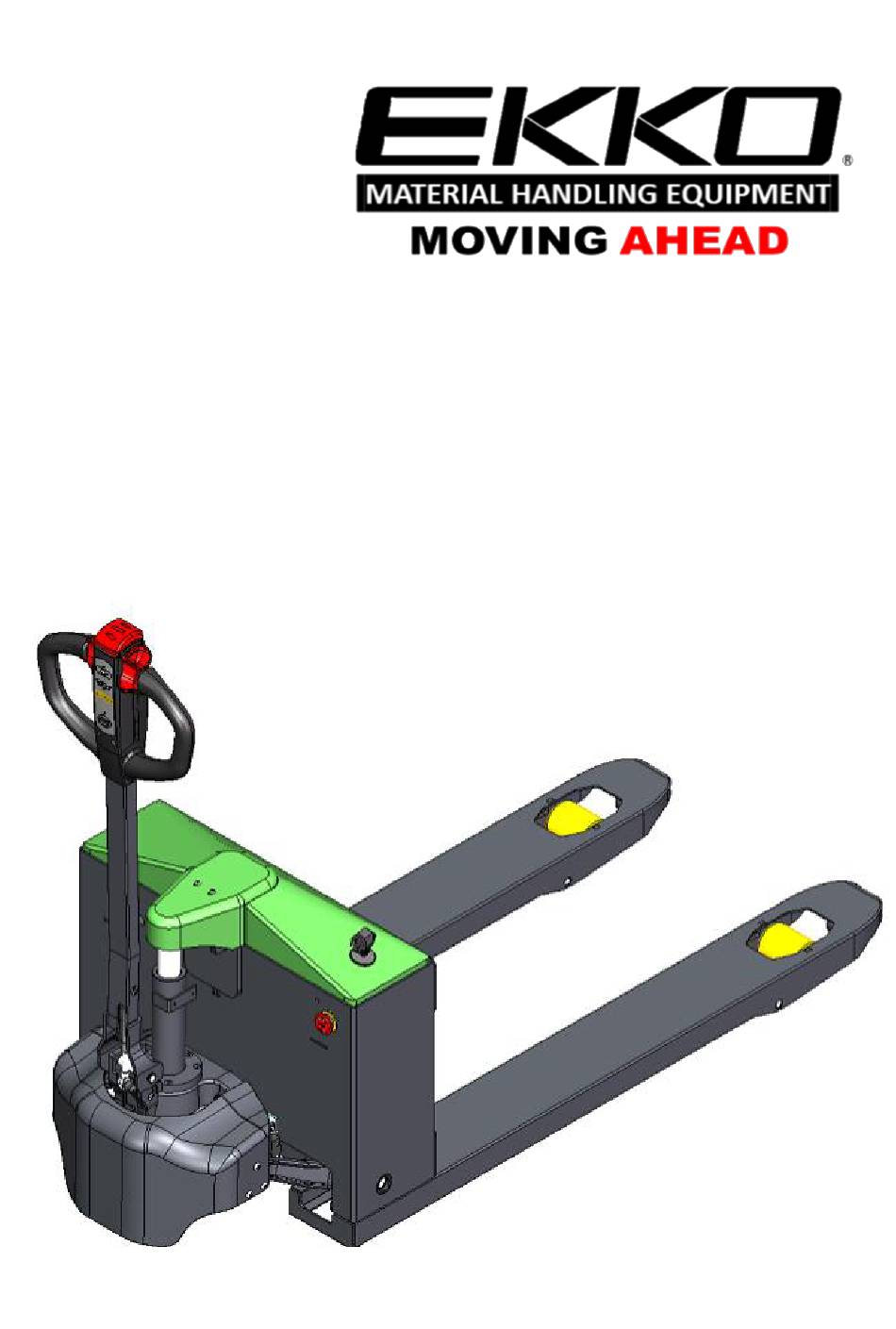

- Page 1 Operations & Maintenance Manual Lithium Pallet Jack EP15JLIC, EP18JLIC & EP20JLIC...
- Page 2 Warning Before using this Pallet Jack, first pay attention to the following matters: ： ➢ Please read this manual carefully and operate the vehicle safely. ➢ Do not operate this vehicle without training. ➢ Please comply with ISO3691 "Safety Specification for Motor Vehicles Industry". ➢...
- Page 3 1、Main parts overview Electrical system Tiller system Hydraulic system Frame assembly Drive Rocker arm system assembly...
-
Page 4: Main Technical Parameters
2、Main technical parameters Figure 1-1... - Page 5 EP15-18-20JLIC Model number Features Q(lbs.) 3,300 - 4,000 - 4,4000 Rated load Load center distance Weight lbs. Service weight with battery Φ8.26 × 2.95 Wheel Front wheel Φ2.91 × 3.66 Rear-wheel Three supports Wheel layout h3（in） 7.48 High height Dimensions h13（in）...
- Page 6 4. Instructions for use Correct use and operation of the vehicle will bring great convenience to your work. Improper operation and use of the vehicle will damage the vehicle or bring danger to your personal safety and cargo. Before use, please check whether the vehicle is normal: whether the hydraulic pipeline is leaking oil, whether each set of wheels is intact and normal, and whether there is any jamming.
- Page 7 4.2. Forward driving and reverse driving The flower-shaped turning knob located above and left of the rudder handle is used for running speed control. It can be operated with the left-hand thumb or the right-hand finger in a single action or at the same time, as shown in Figure 2-2.
- Page 8 drop. The horn button is located in the middle above the rudder handle. Press this switch to sound the horn. Horn Up button Down button Figure 2-3 4.5 Running and braking The rudder handle is divided into three sections A, B and C in the vertical plane, and the two zones A and C are the braking zones.
- Page 9 Figure 2-4 4.6 Vehicle Running The direction of the vehicle is controlled by the rudder handle. See Figure 2-5 a Turn the rudder bar to the left and the vehicle turns to the left. b Turn the rudder bar to the right and the vehicle turns to the right. Figure 2-5...
- Page 10 5. Use and maintenance of lithium batteries. 5. Precautions for using batteries (1) Do not put the battery pack into water or get it wet! (2) Do not charge the battery pack under fire or extreme heat conditions! Do not use or store battery packs near heat sources such as fire or heaters! If the battery leaks or gives off an odor, remove it immediately from near an open flame.
-
Page 11: Packaging And Transportation
Possible faults and troubleshooting methods during use Fault description Fault cause solution Oil leakage or leakage The sealing washer is damaged or invalid, and Replace the new seal ring and tighten the the thread joint is loose joint The lifting height does not There's not enough hydraulic fluid in the tank Add hydraulic oil meet the design requirements... - Page 12 8. Hydraulic schematic diagram 9. Electrical schematic diagram...
