3/4 blade 40W DC ceiling fan with LED light – Tri-colour
Styles may vary according to the specific models.)
Models: RONDOII52XX, RONDOII52LEDXX,
DC CEILING FAN
INSTALLATION MANUAL
(Fan pictured is for illustration purposes only.
Ceiling Fan Installation Manual
!"#$"%&&%'(# series
RONDOII58XX, RONDOII58LEDXX
!"#$%&'()&*(+&,)+-"#./$0
!
+
!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Deka RONDO II Series
Summary of Contents for Deka RONDO II Series

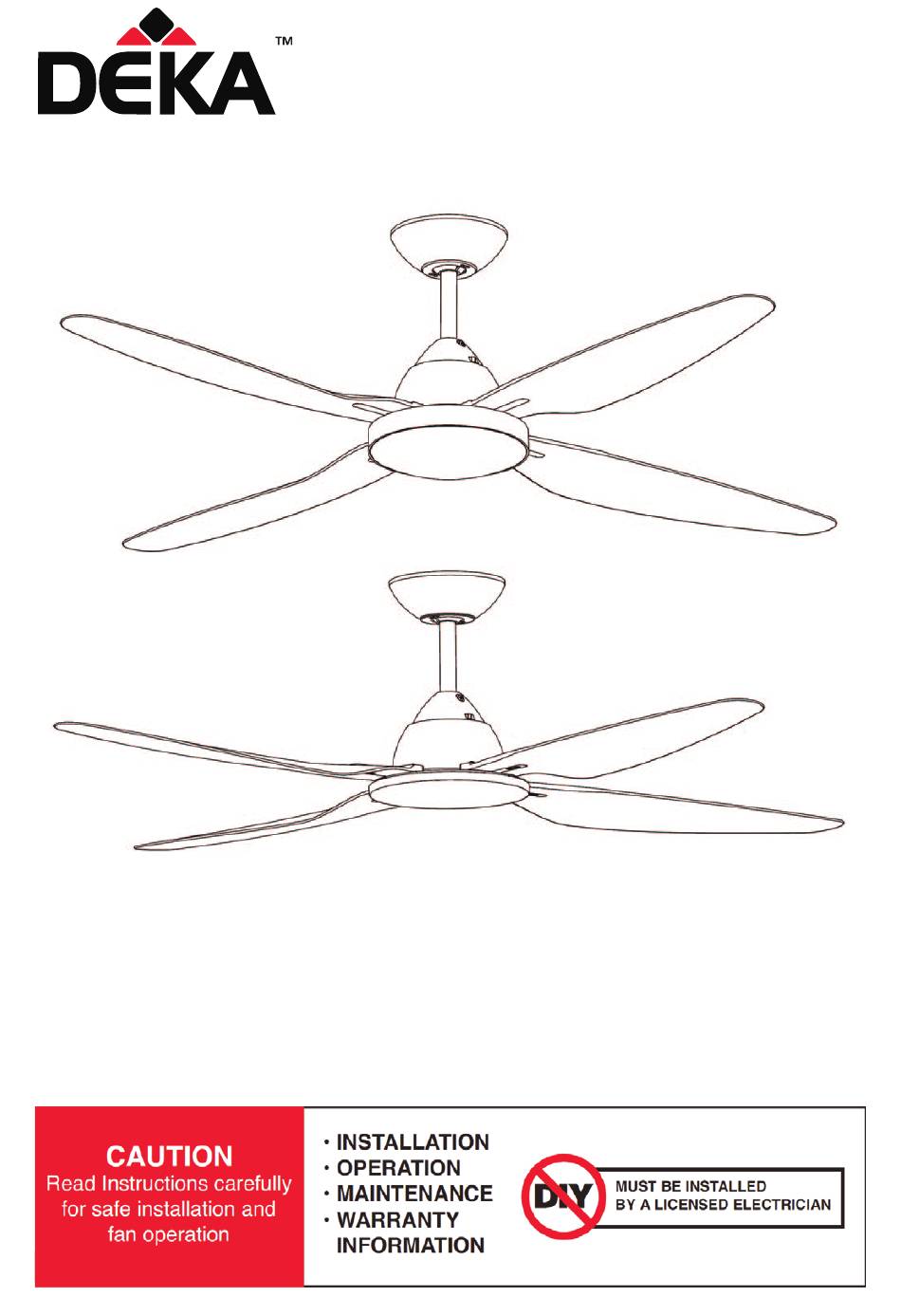

- Page 1 DC CEILING FAN INSTALLATION MANUAL 3/4 blade 40W DC ceiling fan with LED light – Tri-colour (Fan pictured is for illustration purposes only. Styles may vary according to the specific models.) Ceiling Fan Installation Manual !"#$"%&&%'(# series Models: RONDOII52XX, RONDOII52LEDXX, RONDOII58XX, RONDOII58LEDXX !"#$%&'()&*(+&,)+-"#./$0...
-
Page 2: Safety Precautions
THANK YOU FOR PURCHASING Thank you for purchasing this quality DEKA product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference. SAFETY PRECAUTIONS 1. The appliance is not intended for use by persons (including children) with reduced physical,... -
Page 3: Parts List
SAFETY PRECAUTIONS CONT' 7. This fan is suitable for indoor, alfresco and coastal areas where the fan is fully undercover with a minimum of 1 wall. This fan is not waterproof. When installed in an alfresco or coastal area, the ceiling fan must be positioned in a location protected from water, wind and dust. Exposure to these elements will void the warranty. -
Page 4: Product Specifications
PRODUCT SPECIFICATIONS !"#$%&'( ))*+),*!-(.*/0 1"2'3(4"56789$:"5( ,*;( <#'4$3:4%#(4#%66:=:4%$:"5( >( ?"$"3( @A.BCA88(DE(8"$"3( 3 or 4 F#%G'( 52" = 11° 58" = 13° F#%G'(9:$4H( Remote control / wall controller E"5$3"#( L'8"$'(4"5$3"#( 7 speeds + Turbo / 3 speed M9''G6( N(69''G6(O(P73Q"( F"GR(8%$'3:%#( SFM( F#%G'(8%$'3:%#( SFM( 3.9kg LTUDT>>.)VV( .W,X&(... -
Page 5: Installing The Mounting Bracket
INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to the nearest objects or walls. • Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with two long screws provided. -
Page 6: Installing The Fan
INSTALLING THE FAN BLADE ATTACHMENT 1. Align the 2 holes on the blade with the 2 holes on the rotating member of fan motor assembly and using the 2 blade screws to secure the fan motor assembly. Ensure all screws are tightened evenly to reduce the chance of warping or unbalancing. Take care not to over tighten the screws, as this can damage the blades. -
Page 7: Wiring The Fan
WIRING THE FAN WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. REMOTE CONTROL ONLY No need Earth to connect 220-240V AC Power supply N (Neutral) from ceiling L (Live) - Page 8 WIRING THE FAN CONT' WALL CONTROL ONLY Earth 220-240V AC N (Neutral) Power supply from ceiling L (Live) Light Speed control device Receiver Light switch DC wall switch Fan switch Mounting Bracket Receiver Fan body 1. Connect the mains power supply to the terminal block (A) ensuring that wires are secure and no bare wires are exposed.
-
Page 9: Finishing The Installation
FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. • Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy and that the wires are not damaged during this step. -
Page 10: Led Panel
USING YOUR CEILING FAN CONT' REMOTE CONTROL ONLY G. Light ON/OFF button press the button to turn the light ON/OFF Press the button ON/OFF, ON/OFF, ON/OFF within 3 seconds to select the colour temperature (3000K, 4000K or 5000K). H. Light brightness increase button Press the button to increase the brightness of the light. I. -
Page 11: Battery Installation
USING YOUR CEILING FAN CONT' BATTERY INSTALLATION • 2x AAA 1.5 V batteries are used to operate the remote control. • Loosen the screw from the battery cover. • Pull out the battery cover and install the batteries. • Ensure the polarity is correct as shown in the battery compartment. •... -
Page 12: Light Control
USING YOUR CEILING FAN CONT' WALL CONTROL ONLY Turn on the power and check the operation of the fan. • OFF Position – Fan off • 3rd Position – Low fan speed • 2nd Position – Medium fan speed • 1st Position – High fan speed LIGHT CONTROL •... -
Page 13: After Installation
AFTER INSTALLATION WOBBLE: NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. TO REDUCE THE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down rod are secure. -
Page 14: Important Facts
IMPORTANT FACTS All electric motors, including fan motors make some noise and may feel hot if touched – this is NOT A FAULT. Ceiling fans tend to move during operation as they are not generally rigid- mounted.Rigid mounted ceiling fans generate excessive vibration (which leads to noise) and stress on their mountings. -
Page 15: Warranty Information
What is an in-home warranty? DEKA branded ceiling fans offers a two (2) year in-home parts and labour warranty on ceiling fans installed within the coverage of our network of service agents and in cases where the product fails due to defective materials or workmanship. - Page 16 www.dekafans.com.au...
