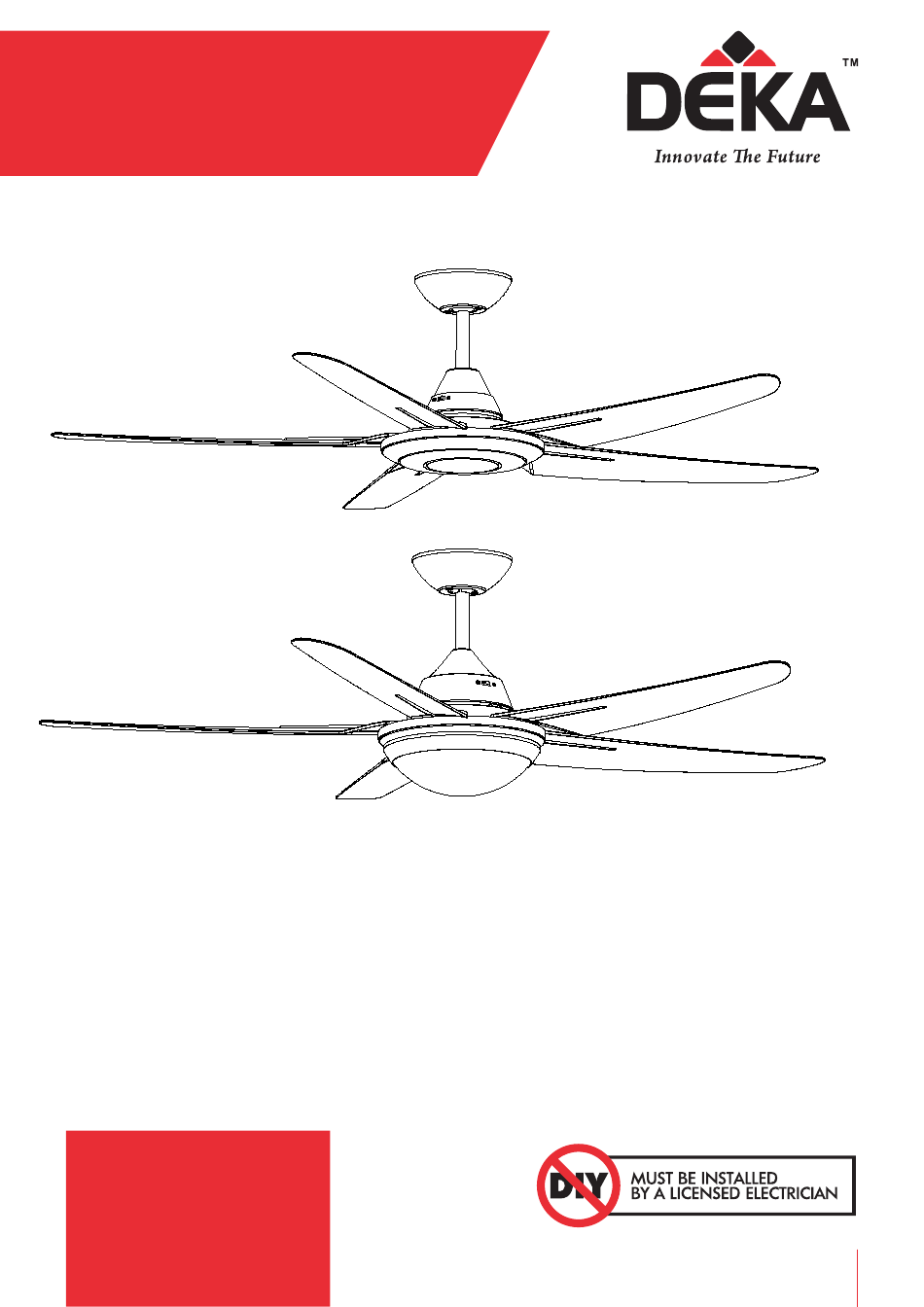

- Page 1 INSTRUCTION MANUAL (Fan pictured is for illustration purposes only. Styles may vary according to the specific models.) Ceiling Fan Installation Manual, Rev 2.1 RANDLE series Models: DKA210340, DKA210342, DKA210495 & DKA210496. CAUTION • INSTALLATION • OPERATION Read Instruction Carefully • MAINTENANCE For Safe Installation and •...
-
Page 2: Safety Precautions
Thank you for purchasing this quality Deka ceiling fan. To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference. SAFETY PRECAUTIONS 1. In Australia, the appliance is not intended for use by persons (including children) with... -
Page 3: Before Installation
BEFORE INSTALLATION Unpack the fan and carefully identify the parts. Please refer to Fig 1. Fig 1a. Fig 1b. FAN WITHOUT LIGHT (Fig 1a.) FAN WITH LED LIGHT (Fig 1b.) Mounting bracket x 1 Mounting bracket x 1 Pre-assembled fan motor, down rod, Pre-assembled fan motor, down rod, canopy and bottom cover x 1 canopy , bottom cover &... -
Page 4: Installing The Mounting Bracket
INSTALLING THE MOUNTING BRACKET INSTALLING THE MOUNTING BRACKET ● The ceiling fan must be installed in a location so that the blades are a minimum 300mm spacing from INSTALLING THE the tip of the blade to the nearest objects or walls (Including bulkheads and beams). ●... -
Page 5: Blade Installation
BLADE INSTALLATION BLADE ATTACHMENT BLADE INSTALLATION Secure the blade on the bracket by using 2 motor screws (Fig 2.), BLADE blade mounting screw through the blade, and attach lightly to the fan. INSTALLATION mounting screw, and then securely tighten both mounting screws. R BLADE ATTACHMENT not use power tools as this can cause damage to the screws and/o BLADE ATTACHMENT... -
Page 6: Electrical Wiring Diagram
ELECTRICAL ELECTRICAL WIRING DIAGRAM WIRING DIAGRAM ELECTRICAL WIRING DIAGRAM WARNING: F or your safety all electrical connections must be undertaken by a licensed electrician. WARNING: For your safety all electrical connections must be undertaken by a licensed WARNING: F or your safety all electrical connections must be undertaken by a licensed electrician. -
Page 7: Finishing The Installation
WIRING DIAGRAM: WHEN USING REMOTE CONTROL (Remote sold separately) A single-pole switch must be placed in the same room as the fan as per local wiring regulations AS/NZS 3000. Please follow the above wiring instructions before installation of remote kit. A remote kit does not substitute for a terminal switch and doing so will void WIRING DIAGRAM: WHEN USING REMOTE CONTROL warranty. -
Page 8: Using Your Ceiling Fan
USING YOUR CEILING FAN FAN WALL CONTROL USING YOUR Turn on the power and check the operation of the fan. CEILING FAN • OFF Position – Fan off FAN WALL CONTROL Turn on the power and check the operation of the fan. •... - Page 9 REPLACING THE LED DRIVER (For models with light kit) NOTE: Always turn OFF the power at the mains switch before attempting to replace the LED driver. Loosen the screw (A) to lift the top housing (B). Replace the LED driver by unplugging the connectors (C, D).
- Page 10 CHANGING THE COLOUR OF THE LED LIGHT ( For models with lig NOTE: Always turn OFF the power at the mains switch before attempting to cha on your ceiling fan. You are able to select/change the colour output of the LED light on your RANDLE Cei CHANGING THE COLOUR OF THE LED LIGHT 1.
-
Page 11: After Installation
AFTER INSTALLATION WOBBLE: NOTE: CEILING FANS TEND TO MOVE DURING OPERATION DUE TO THE FACT THAT THEY ARE MOUNTED ON A RUBBER GROMMET. IF THE FAN WAS MOUNTED RIGIDLY TO THE CEILING IT WILL CAUSE EXCESSIVE VIBRATION. MOVEMENT OF A FEW CENTIMETRES IS QUITE ACCEPTABLE AND DOES NOT SUGGEST ANY PROBLEM. -
Page 12: Important Facts
IMPORTANT FACTS All electric motors, including fan motors make some noise and may feel hot if touched – this is NOT A FAULT. Ceiling fans tend to move during operation as they are not generally rigid-mounted. Rigid mounted ceiling fans generate excessive vibration (which leads to noise) and stress on their mountings. -
Page 13: Warranty Information
What is an in-home warranty? Deka branded ceiling fans offers a two (2) year in-home parts and labour warranty on ceiling fans installed within the coverage of our network of service agents and in cases where the product fails due to defective materials or workmanship.
