Summary of Contents for HUUM HIVE Wood 13 kW

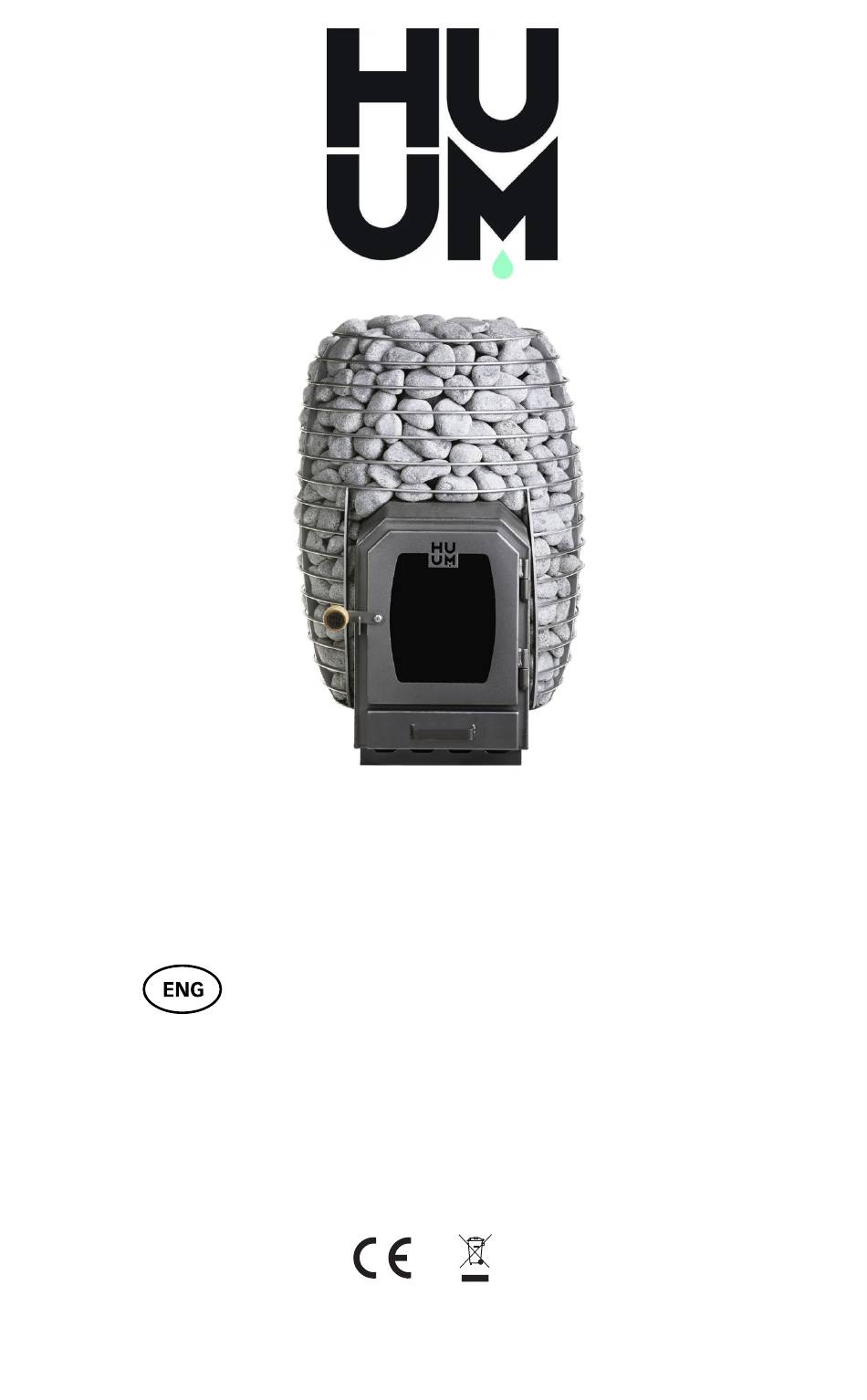

  • Page 1 Powered by HIVE Wood 13 kW 17 kW 17 kW LS SAUNA STOVE 3–11 POÊLE DE SAUNA 13–21 info@huumsauna.com www.huumsauna.com...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS DANGER: Indicates a hazardous situation that, if not avoided, will result in death or serious injury. WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE: Indicates information considered important, but not hazard-related.
  • Page 3 • Keep all occupants away from the heater and when it is hot. The stones and outer surface of the heater may burn your skin. • Do not throw excessive amounts of water on the stones. The evaporating water is boiling hot and could cause burns.
  • Page 4 HIVE Wood SAUNA STOVE Installation and user instructions Important! These instructions provide simultaneously the installation instructions for models 13kW, 17kW and 17kW LS. Follow the instructions for your model carefully. Important! We recommend a specialist to lay the stones on the heater.
  • Page 5 Technical specifications of the sauna stove HIVE HIVE Wood 13 Wood 17 Steam room size range 212-459 ft³ 283-565 ft³ 6-13 m³ 8-16 m³ Nominal heating power (kW) Steel frame diameter 17.7 in 21.9 in 450 mm 555 mm Depth + extension of the combustion chamber LS 13.8 in 24.4 in /620 mm +...
  • Page 6 0.12 in 0.12 in 10 / 2-3 mm 10 / 2-3 mm * NPD – No permanent data Application area Multi-firing sauna stoves heated by natural Wood logs Meets requirement EN 15821:2010 HUUM Sauna OÜ Vinkli 2, Tartu, 51014, Estonia...
  • Page 7: Installation

    Congratulations, you’ve made an excellent choice! The HUUM sauna stove is the best of its kind and will serve you for a very long time with the correct use and maintenance. • Read the instructions carefully before installation and use.
  • Page 8 • Electrical equipment and wiring are not permitted in the safety area of the sauna stove. Table Power Room Ø HIVE 13 kW 212- 9.85 in 35.5 in 9.5 in 16.74 in 0.2 in 11.82 in 17.8 in 29.6 in 459 ft Wood 6-13 m...
  • Page 9: Application Instruction

    Connecting the sauna stove with the chimney • The flue gas outlet of HUUM sauna stoves is at the top of the sauna stove. The sauna stove is connected to the chimney using special metal flue pipes, which are optionally sealed with heat- resistant sealing rope.
  • Page 10: Heating The Sauna

    Heating the sauna • Avoid overheating the sauna stove; overheating is indicated when the furnace case glows red. Overheating causes the metal to deform, and the manufacturer is not responsible for this defect. • In the case of overheating, the ash tray must be completely closed to stop the furnace combustion process.
  • Page 11: Maintenance

    Maintenance • For safe operation of the furnace, it is advisable to keep cleaning accessories (shovel, broom, rake) in the lower temperature (below 104°F / 40°C) part of the steam room. • Empty the sauna stove’ s ash tray before each heating since this is used to adjust the draught.
  • Page 12: Warranty Terms

    Warranty terms: • Warranty applies only to heaters that have been used according to the manual. • The warranty applies to malfunctions caused by manufacturing faults. This warranty does not cover the combined effect of high temperature and water on the sauna stove: •...

This manual is also suitable for:

Hive wood 17 kwHive wood 17 kw ls
