ParTech PAR Wave Quick Reference Manual page 2

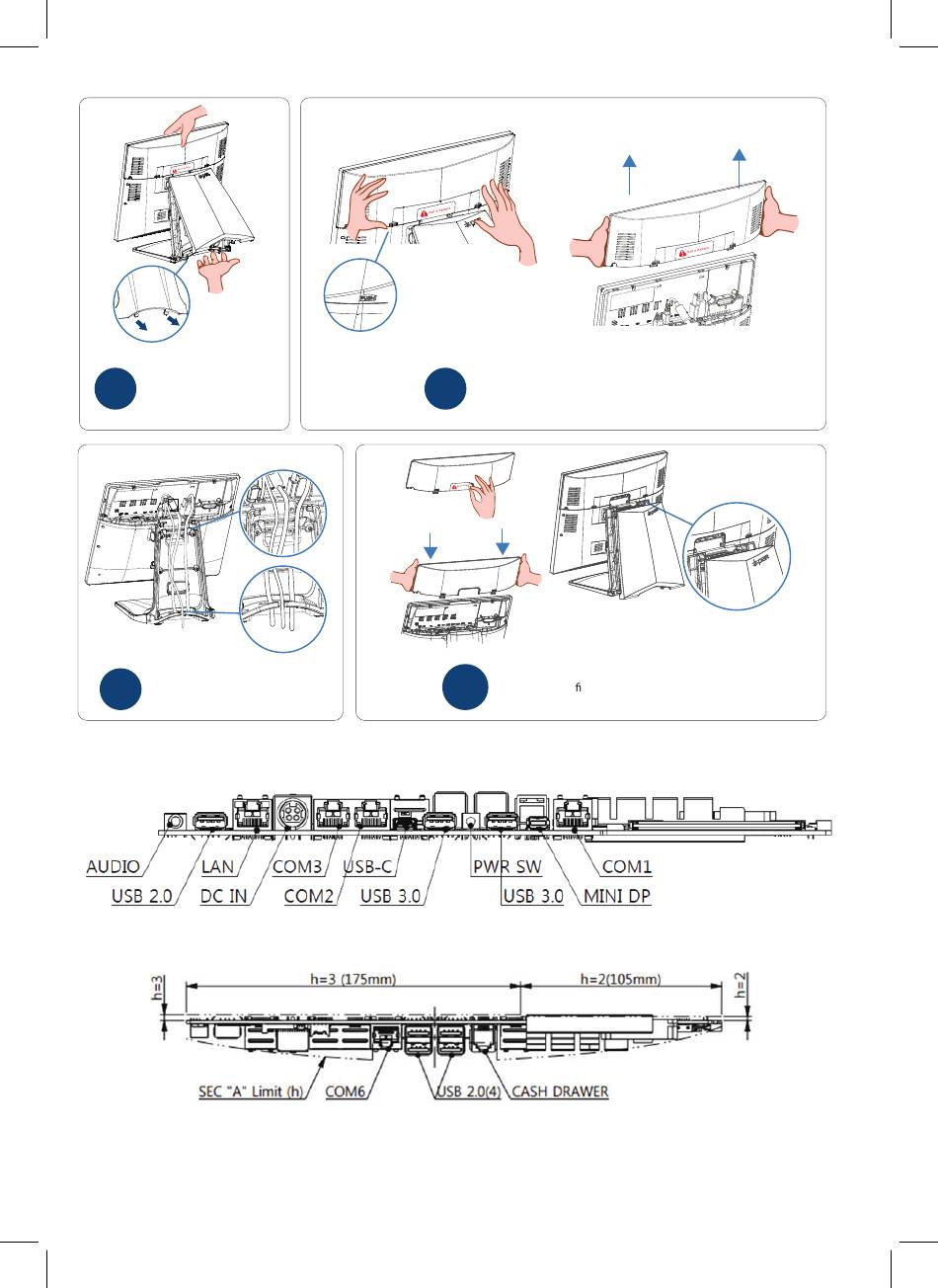

Accessing the i/o well & Connecting Cables
Remove the stand cover by
holding the terminal with
1
one hand and pulling the
bottom of the stand cover
by the cover hooks.
Connect your cables in the designat-
3
ed I/O ports and then route through
the terminal stand.
Main i/o Board
Additional i/o
Port capacity
USB-C: Input 12V / 5A, Output 5V / 1.5A
Cash Drawer: 24V / 0.2A
8383 Seneca Turnpike New Har�ord, NY 13413 | 770509201B
Remove the I/O cover by pressing the two
2
tabs and pulling the cover straight up away
from the terminal.
Remove the sticker from the I/O cover, then
replace the cover on the terminal. Replace the
4
stand cover by rst connecting the top tabs
then pressing on the bottom.
