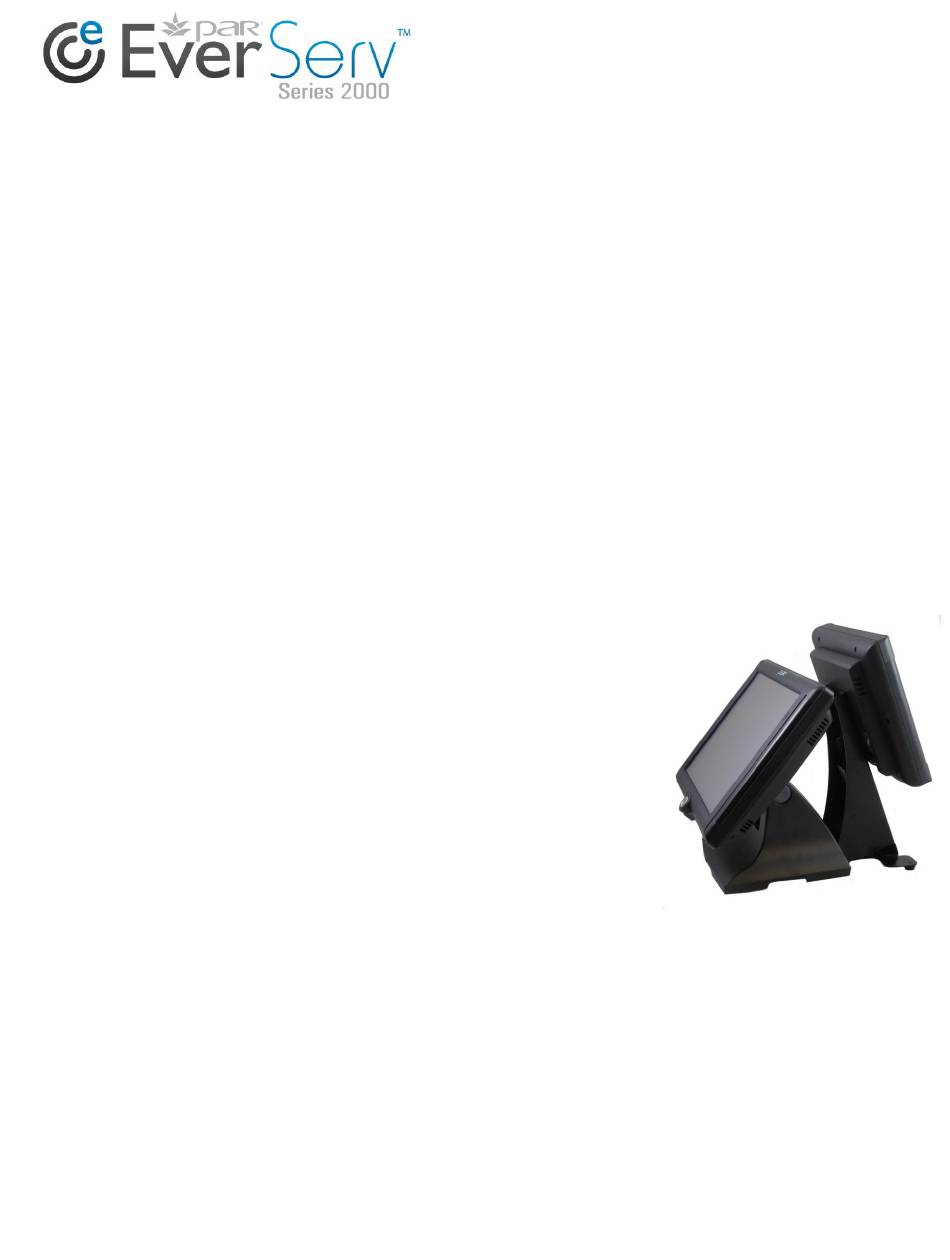

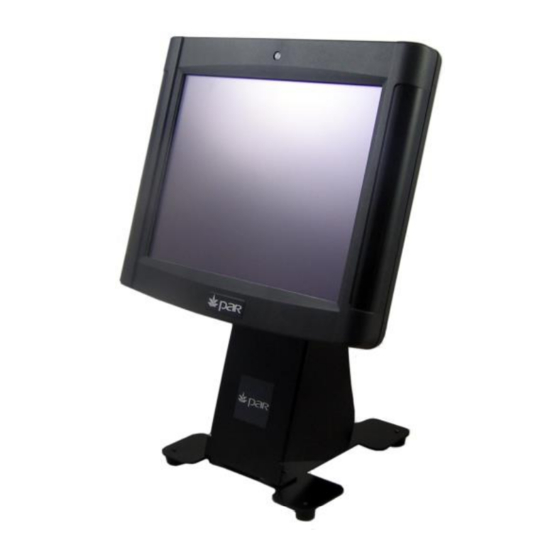

- Page 1 K3623-02 12-inch Customer Display For EverServ 2000 & EverServ 500 Installation and Setup Instructions PN772229802...
- Page 2 The PAR logo, Boundless Hospitality by PAR logo, PAR EverServ™, the PAR EverServ logo and PixelPoint® are all trademarks of PAR Technology Corporation, the parent company of ParTech, Inc. or its affiliates. All other product names used throughout this material are trademarks of the respective companies. No such use of any trademark is intended to convey endorsement or other affiliation with these companies.
- Page 3 INTRODUCTION The following documentation provides the instructions for installing the K3623-02 Customer Display for the EverServ 2000 or EverServ 500. Inventory Ensure that the following items are present in your box: EverServ 2000 POS or EverServ 500 12-inch customer display...
- Page 4 Replacing Rubber Feet on EverServ 2000 or EverServ 500 Terminal Remove POS unit from the anti-static bag Lay terminal on counter on its back with bottom facing you Unscrew four rubber feet from bottom of terminal Take rubber feet part number 544001606, use 4 screws part number 848003004 and attach to bottom of terminal Prepare Mount Bracket Remove liner from Velcro...
- Page 5 Attach Customer Display to Mount Bracket Locate display and 4 screws, part number 848004303 Lay customer display on flat surface Place mount bracket onto customer display and line up mount bracket with holes in customer display Using a Phillips head screw driver secure mount bracket to customer display using the 4 screws, part number 848004303 Attach pedestal cover on mount bracket Routing Cables from Customer Display to EverServ 2000 or EverServ 500 Terminal...
- Page 6 Connect following cables as shown below: Video Cable Magnetic Strip Reader (Optional) Touch Screen Cable (Optional) COM 1 COM 3 Secure cables by gathering within cable retainer Once cables are secure slide customer display mount under back of EverServ 2000 or EverServ 500 unit, unit should look as pictured below...
- Page 7 PAR PHONE NUMBERS Service USA: 800.382.6200 Canada: 800.387.4963 Parts USA: 800.PAR.PART Canada: 800.387.4963 Sales Continental USA except New York: 800.448.6505 New York State Only: 800.533.6311 Outside Continental USA: 315-738-0600 Driver Support http://www.partech.com/pti_products_services/service_existing_customer.cfm...
