Thank You!

Thank  you  for  purchasing  a  PAR  point‐of‐sale  system.  We

are  confident  that  our  technology  solutions  will  contribute
to your business success.
Examine the Shipment:
Use the invoice to ensure all equipment is present.
Report any missing or damaged equipment to your PAR
salesperson.
Inventory Components:
Ensure you have the following items in your POS order:
POS terminal
AC power cord
2 Serial adapter cables

Note:  The  EverServ  6000  POS  does  not  have  DB9  serial
connections.  The  EverServ  6000  POS  has  RJ‐45  serial
connections.  Therefore  serial  peripherals  with  DB9
connectors  require  an  RJ‐45  to  DB9  adapter  cable  when
used  with  the  EverServ  6000  POS  terminal.  This  adapter
cable  can  be  purchased  from  PAR,  part  number  C4823‐01.
Contact PAR Parts at 1‐800‐PAR‐PART.
Product Overview

 6000 Counter Top POS Models
EverServ

M7115‐01:   EverServ 6000 Counter Top POS with

resistive touch screen
M7125‐01:   EverServ 6000 Counter Top POS with

capacitive touch screen
The  Counter  Top  POS  is  capable  of  supporting  an  optional
I/O  expansion  board  (F7820)  in  the  pedestal,  which  allows
for  additional  connection  ports.  See  "Optional  Expansion
Board – F7820."

Service and Support
For service and support during or after installation, contact
the PAR Phone Center at 1‐800‐458‐6898.

[©Copyright 2011 ParTech, Inc. All rights reserved.]

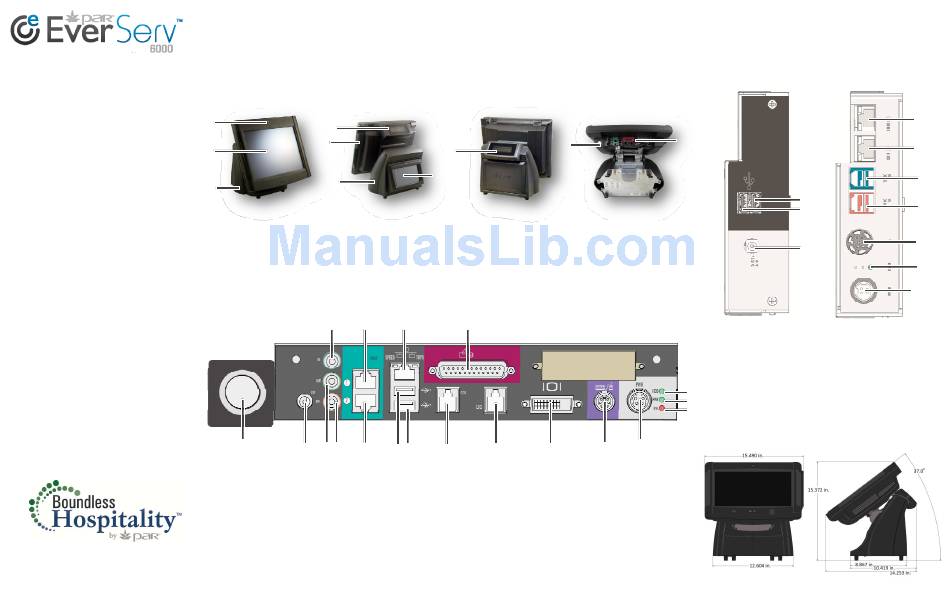

EverServ 6000 POS Terminal Overview
POS Terminal
Power LED
Touch Screen
Left Side Cable Well
Panel Mount 4x20 Customer Display (F7601)
Operator MSR (F730X)
*For more information on available features, contact your sales representative.
Main Cable Well


13
16


11
12
14  15
17
11
Power Button
16
COM1 – RJ‐45 Port
12
12V Power Jack
17
COM2 – RJ‐45 Port
13
Audio In
18
Ethernet
14
Audio Out
19
USB Port
15
Microphone
20
USB Port
Right Side Cable Well Cover

7‐in. Customer Display (F788X)
Pedestal‐Mount 4x20 Customer Display (F7611)
Power Button
10
Main Cable Well

18
21
19  20
22
23
24
21
Printer
26
DC Power
22
Cash Drawer 1
27
Hard Drive LED
23
Cash Drawer 2
28
Power LED
24
DVI Video
29
KVS LED
25
PS2
page 1
EverServ ™ 6000 POS Terminal Setup Guide
Optional Expansion Board (F7820)
10

Left Side Cable Well
30  USB Port
31  USB Port
32  12V DC


27


28
29


POS Dimensions
25
26

33
34
35
30
36
31
37
32
38
39
Right Side Cable Well


33  COM6 – RJ‐45 Serial Port
34  COM5 – RJ‐45 Serial Port
35  12V Powered USB Port
36  24V Powered USB Port
37  RS‐485 (KVS)
38  Power LED
39 DC Power Connection
