PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
Cross Bar Unit
X1
BB
Mounting Screw
X2
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
A
CC
DD
FF
Vintage Bulb Max.60W
X1

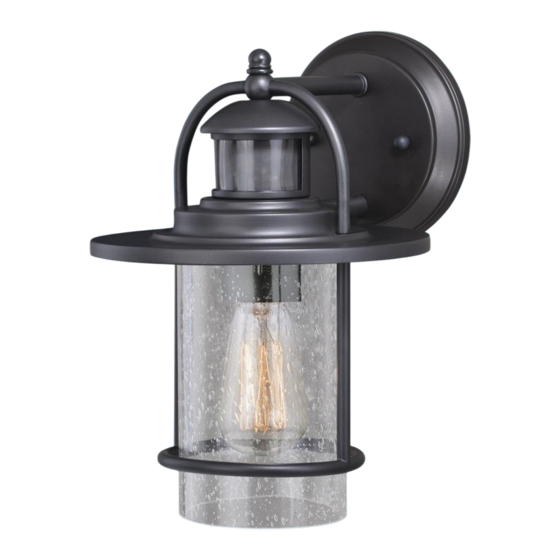

OUTDOOR SENSOR LIGHT
B
Wire Nut
X3
Ball Nut
X2
Sku Number: 356-3416
Model Number: DH7049
EE
Rubber Pad
X2
Page 1 of 5
