PACKAGE CONTENTS
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
BB
CC
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
A
Mounting Plate Unit
X1
Mounting Screw
X2
Wire Connector
X3

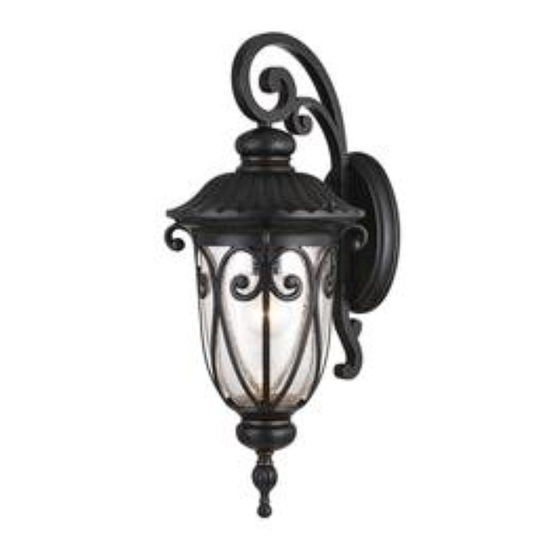

OUTDOOR WALL LANTERN
Model Number: OW4025MG
B
C
D
E
F
DD
EE
FF
Sku Number: 356-4025
356-4026
OW4026MG
Bolt Nut
X2
Rubber Pad
X2
Clip
X3
Page 1 of 4
191113
Advertisement
Related Manuals for Patriot Lighting OW4025MG
Summary of Contents for Patriot Lighting OW4025MG
- Page 1 Sku Number: 356-4025 356-4026 OUTDOOR WALL LANTERN Model Number: OW4025MG OW4026MG Questions, problems, missing parts? Before returning to your retailer, call our customer service at 1-800-887-6326 Monday – Friday 9:00 a.m. – 5:00 p.m. CST PACKAGE CONTENTS HARDWARE CONTENTS Note: Hardware not shown actual size.
- Page 2 SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING ● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching off circuit breaker). ●...
- Page 3 ASSEMBLY INSTRUCTIONS (continued) 6. Put the glass shade (C) into the 5. Unscrew the set screws. Remove Set Screw Set Screw frame (D) carefully, then secure it the washers from the frame (D). Washer with the clips (FF), washers and set Washer screws.
- Page 4 If unable to fix any of the above issues, please consult a certified electrician. FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting fixture with the original sales receipt back to your nearest MENARDS retail store.
