PACKAGE CONTENTS
A
HARDWARE CONTENTS Note: Hardware not shown actual size.
AA
CC
EE

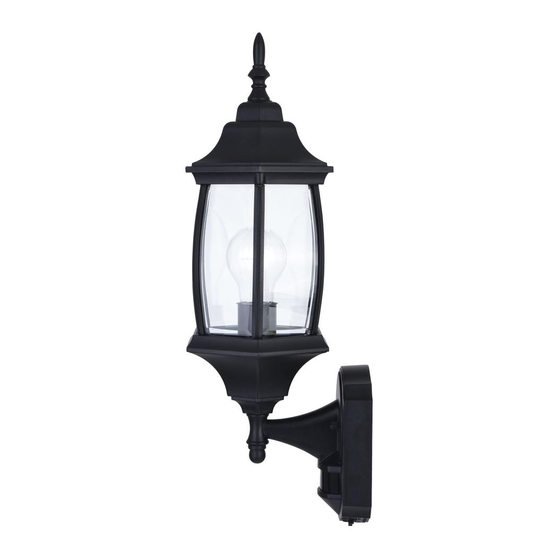

1-Light Outdoor Motion Sensing Wall Light
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
Crossbar Unit
X1
Wire Connector
X3
Rubber Pad
X2
Model Number: DJ2113 TXTBLK
B
C
D
5S
3MIN
TIME
TEST AUTO
PC
SENSITIVITY
BB
DD
FF
SKU Number: 356-1294
356-1295
DJ2114 TXTWHT
Mounting Screw
X2
Bolt Nut
X2
Set Screw
X2
221017
Advertisement
Table of Contents
Related Manuals for Patriot Lighting DJ2113 TXTBLK
Summary of Contents for Patriot Lighting DJ2113 TXTBLK
- Page 1 SKU Number: 356-1294 356-1295 1-Light Outdoor Motion Sensing Wall Light Model Number: DJ2113 TXTBLK DJ2114 TXTWHT Questions, problems, missing parts? Before returning to your retailer, call our customer service at 1-800-887-6326 Monday – Friday 9:00 a.m. – 5:00 p.m. CST...
-
Page 2: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. WARNING ● Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching off circuit breaker). ●... -
Page 3: Functions And Operations
ASSEMBLY INSTRUCTIONS (continued) 3. Install the bulb (not included). 4. Remove the finial (B) from the Max.60W Type A Bulb See relamping label at socket assembly kit, and insert the (not included) area or packaging for maximum threaded pipe of the assembly wattage allowed. - Page 4 FUNCTIONS AND OPERATIONS 2. AUTO MODE (nighttime operation only) ● At dusk, the light will turn on when motion is detected, and stay on as long as the motion continues. When the motion stops, the light will remain on for the predetermined time set (5~180 seconds) and then turn off. ●...
-
Page 5: Care And Maintenance
The following parts are available for reorder if damaged or missing. Call our toll-free at 1-800-887-6326. Spare Parts List: Assembly Kit Mounting Screw Crossbar Unit 6562MM (1 SET) for 356-1294 6563MM (1 SET) for 356-1295 Wire Connector Bolt Nut Rubber Pad Set Screw CARE AND MAINTENANCE ●... - Page 6 If unable to fix any of the above issues, please consult a certified electrician. FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this lighting fixture with the original sales receipt back to your nearest MENARDS retail store.
