NETGEAR RP614 - Web Safe Router Reference Manual page 63

From the Main Menu of the browser interface, under Advanced, click on Static Routes to view the
Static Route menu, shown below.

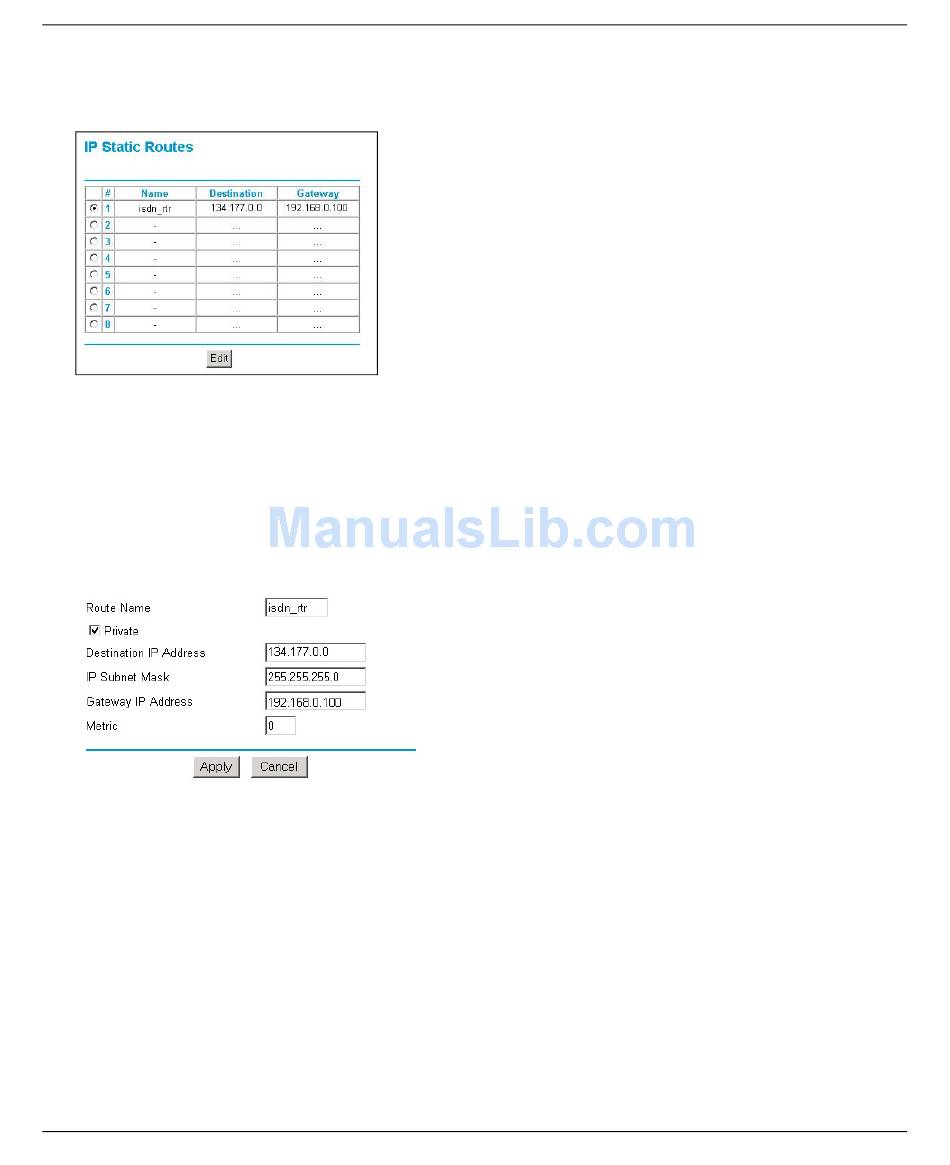

Figure 5-4. Static Route Summary Table
To add or edit a Static Route:
Click the Add button to open the Add/Edit Menu, shown below.
1.
Figure 5-5. Static Route Entry and Edit Menu
Type a route name for this static route in the Route Name box under the table.
2.
(This is for identification purpose only.)
Select Private if you want to limit access to the LAN only. The static route will not be reported
3.
in RIP.
Select Active to make this route effective.
4.
Type the Destination IP Address of the final destination.
5.
Advanced Configuration of the Router
Reference Manual for the Model RP614 v2 Web Safe Router
5-11
