Connecting To Gv-Center V2 / Dispatch Server - GeoVision GV-Cloud Bridge Manual

1.10.2 Connecting to GV-Center V2 / Dispatch Server

Cameras connected via GV-Cloud Bridge can connect to GV-Center V2 or GV-Dispatch
Server, allowing for centralized monitoring.
1. In the left menu, select Operation Mode > CV2 / Video Gateway / RTMP.
2. Click Apply. When the device is rebooted, the mode will be applied.

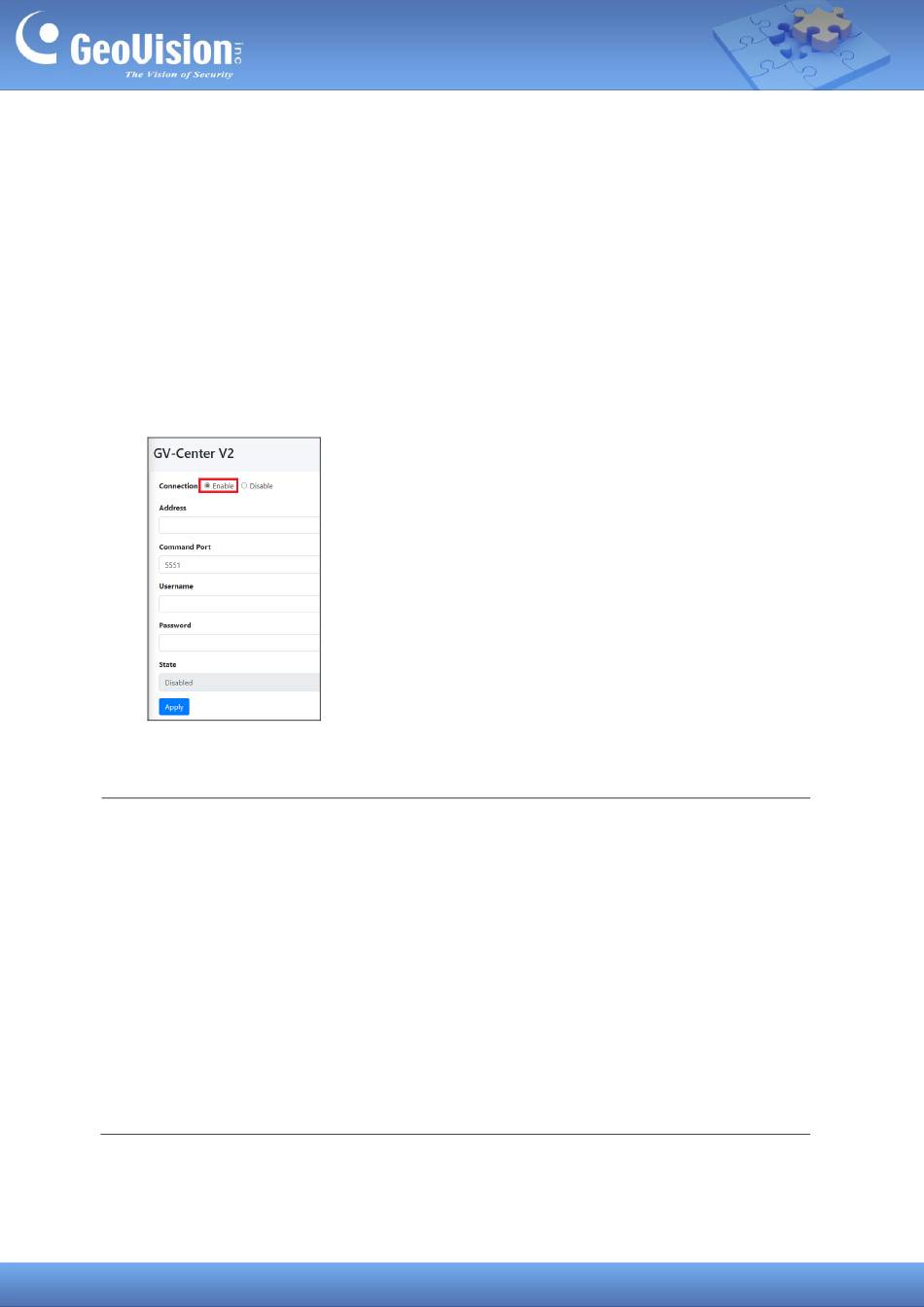

In the left menu, click Service Settings > GV-Center V2.
3.
4. Enable the connection and type the necessary information for GV-Center V2 / Dispatch
Server to connect.
Click Apply. Once connected, the State field will display "Connected".
7.
Note:
1. GV-Cloud Bridge sends alerts and video attachments to GV-Center V2 upon motion,
input trigger, output trigger, video lost, video resumed, and tampering alarm events.
2. GV-Cloud Bridge sends alerts and video attachments to GV-Center V2 (V18.3 or later)
upon Scene Change, Defocus, and AI events from AI-capable GV-IP cameras
(Crossing Line / Intrusion / Entering Area / Leaving Area) and AI-capable UA-IP
cameras (Cross Counting / Perimeter Intrusion Detection).
3. Insert a USB flash drive to GV-Cloud Bridge to send video attachments to GV-Center
V2.
4. Enable Attachment Mode under Subscriber Settings on GV-Center V2 to activate
the video attachment function. See 1.4.2 Subscriber Settings of GV-Center V2 User's
Manual for details.
21
