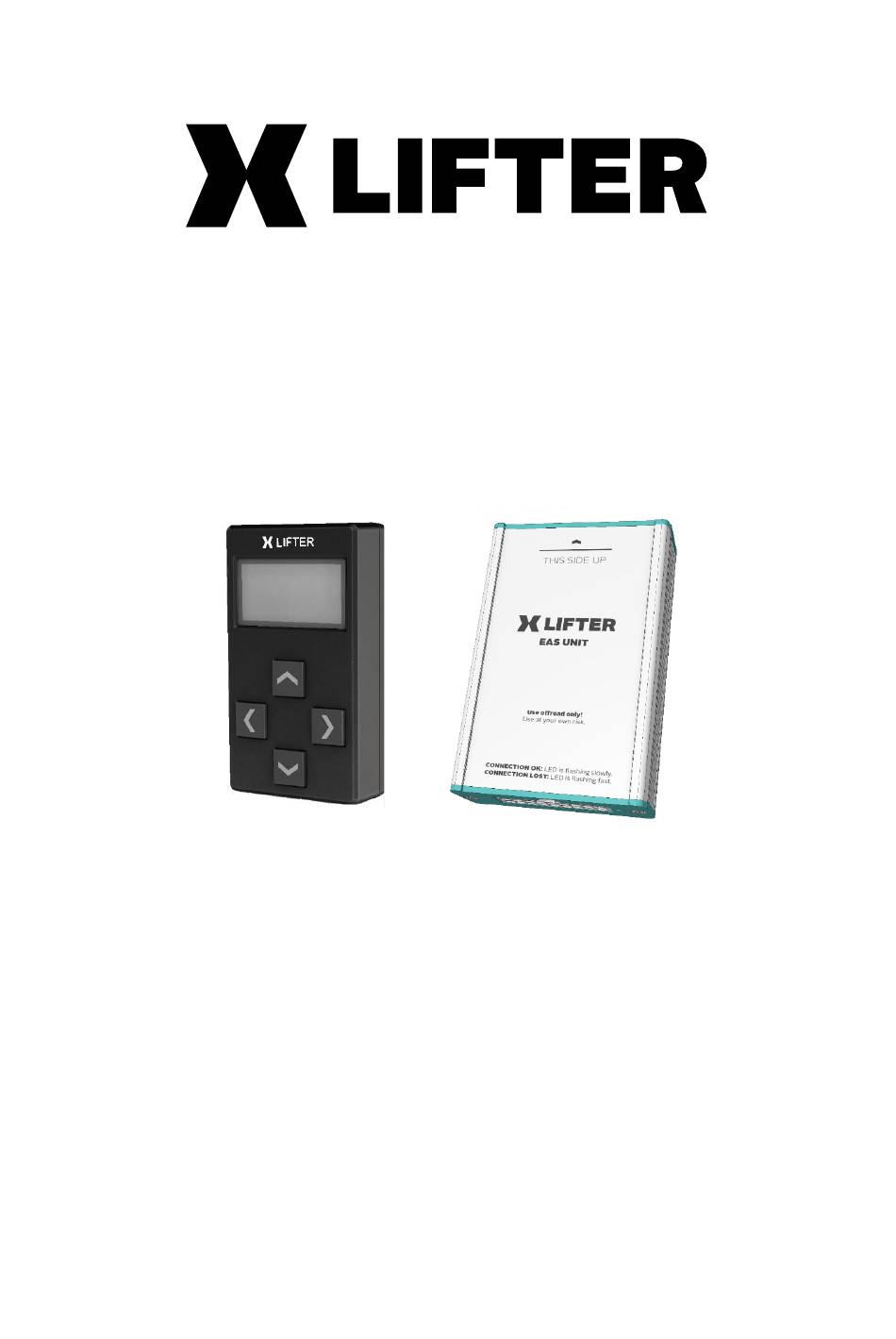

- Page 1 World’s first Air-suspension controller with self-levelling feature for selected Land Rover® vehicles User manual New Defender L663, Discovery 5 L462, Range Rover Sport L494 Model X2 New Generation, Firmware 2.01...
-
Page 2: Table Of Contents
10. Contacts and support Congratulations on your XLifter purchase! Thank you for diving into the User's Guide. While the XLifter is designed to be simple and intuitive, akin to a Swiss Army knife for your vehicle's air suspension - super useful yet sharp - this guide offers valuable tips, warnings, and insights to enhance your experience. -
Page 3: Legal Disclaimer
XLifter is an additional device able to change/adjust the air-suspension computer/electronic programming of the vehicle in which the device is installed. XLifter is not a device approved and designed for installation into vehicles intended to be operated on public roads namely pursuant to Act. no. 361/2000 Coll, as amended. The... -
Page 4: Safety Information
Keylock function before driving, as a safety measure. (see chapter 4.4) Warning: If an XLifter is left installed in the vehicle when it is sold, notify the new acquirer and familiarize him with this manual. Please keep this manual in the vehicle in an accessible location for a future reference. -
Page 5: Instruction For Use
4. Instruction for use The XLifter control module, functioning as a smart remote for the air suspension, lets you adjust parameters and shows operating status. It has four arrow buttons: the changing parameters or scrolling menus, the right button for accessing menus or ... -
Page 6: Lifter (+- 5Mm Free Mode): Free Adjustment From -40 To +75 Mm
● The original LR vehicle height controls remains unchanged after XLifter installation. ● The XLifter lift value is always added (subtracted) to original height. For example, the original “Off Road” (+75 mm) and Xlifter "One Inch Lift" (+25 mm) raises the vehicle 100 mm above “standard” height. -
Page 7: Levelling: Self-Level The Vehicle
Main intent is to make in-car or roof top tent sleeping more comfortable. XLifter is capable to level maximum tilt of approximately 3.4° in longitudinal (pitch) or 4° in traverse (roll) direction. Or in any direction if sum of inclines does not exceed 3-4°... - Page 8 Warning and limitations to the levelling function: ● To use whole wheel articulation and maximize the level-able tilt, please start the levelling while car “original” height is normal. XLifter notifies you with the advice message if car is in Access or Off-road height.
-
Page 9: Trailer Assistant: Easier Trailer Operations
4.5. Compressor temperature monitoring The car compressor is designed for short quick bursts operations, not for continuous use. When XLifter features are used extensively, demand for air refills increases. Therefore, it is important to monitor the compressor temperature. •... -
Page 10: Menu "Settings": User Settings
4.6. Menu “Settings”: User settings The "Settings" menu contains the user part of the XLifter setting - the setting items that make sense to be accessible during normal operation. 1. The “Calibration” item ● Calibration of the XLifter. Detailed description below in chapter 5. -
Page 11: Service Menu
Re-calibration of the XLifter is necessary if: ● The vehicle's height calibration has been altered using Land Rover service tools, e.g., after replacing wheel arm, height sensors, etc. ● The XLifter EAS unit has been physically moved or detached from its 3M fastener. 6. Service menu The XLifter is designed for straightforward operation. -
Page 12: Service Menu Items
● Initiates a Bluetooth scan. Pair only with the "XLIFTER EAS" device. 3. Default lift (+xx) ● Set the default startup lift from -15 mm to +55 mm. The XLifter applies this setting after a reset, battery disconnect, or if the controller is “offline”... -
Page 13: Firmware Update
EAS unit firmware, potentially “bricking” the unit. If this occurs, refer to the repair section for the “bricked” EAS module. XLifter model X2 New Generation, user guide, ver. 1.0, firmware ver. 2.01 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com... - Page 14 EAS unit. This resets the EAS unit, triggering the bootloader and restoring the programming. == Intentionally left blank == XLifter model X2 New Generation, user guide, ver. 1.0, firmware ver. 2.01 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 13...
-
Page 15: Technical Specifications
Declaration of conformity Hereby the eXpedition tech s.r.o. declares, that the radio device type XLifter X2 EAS unit and a XLifter X1 control module complies with the EU directives no. 2014/53/EU, 2014/35/EU, 2014/30/EU and 2011/65/EU. The mentioned devices are in addition compliant with: ETSI EN 300 328, ETSI EN 300 440, ETSI EN 301 489-1,... -
Page 16: Warranty Conditions
Těšnov 1163/5 110 00 Praha 1, Nové Město Czech Republic info@xlifter.com www.xlifter.com seller XLifter model X2 New Generation, user guide, ver. 1.0, firmware ver. 2.01 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 15...
