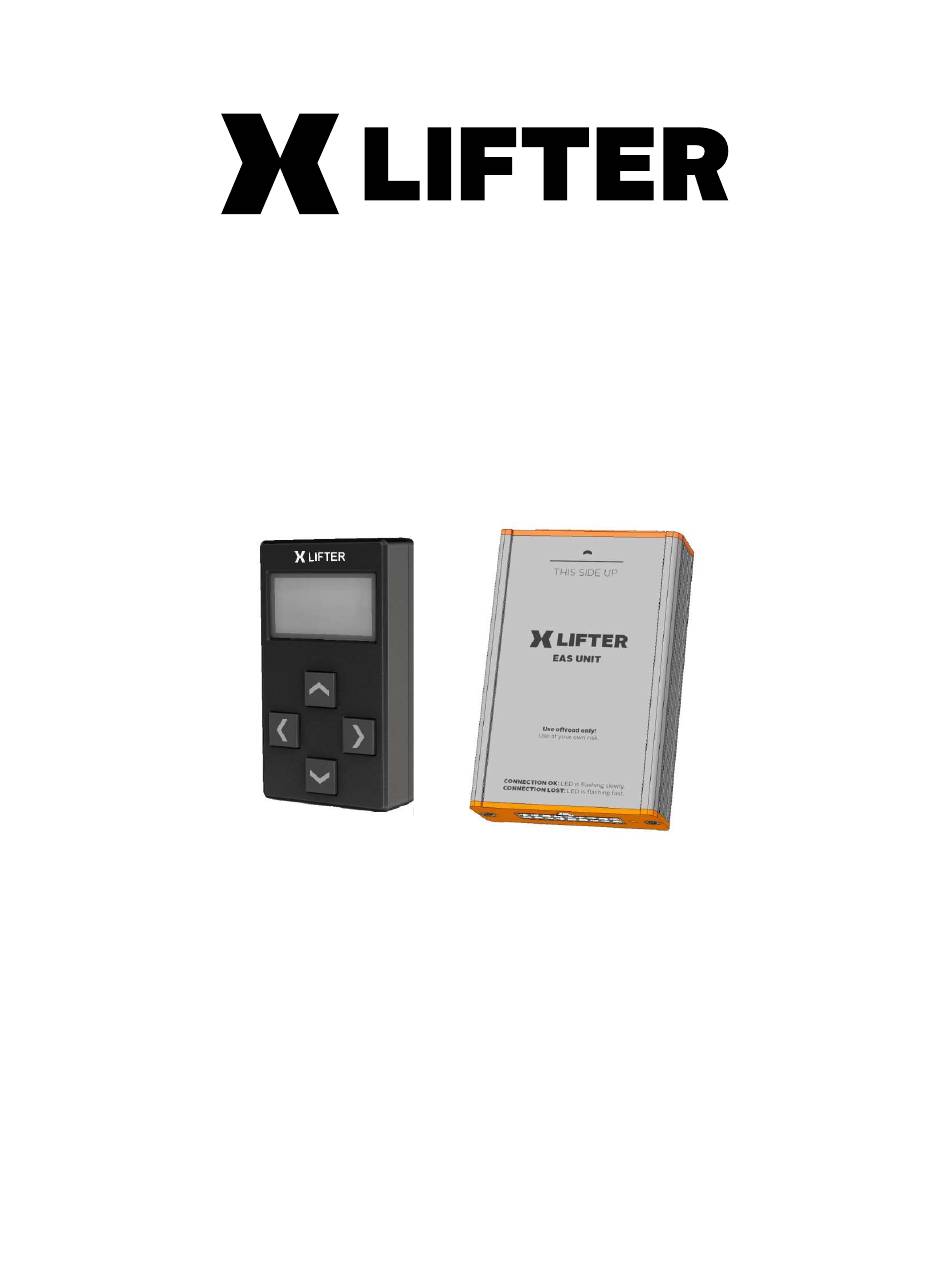

- Page 1 World’s first Air-suspension controller with self-levelling feature for the D3, D4 and RRS Land Rover vehicles User manual (Installation & user guide)
-
Page 2: Table Of Contents
It’s worth to read it. Dig in, mark it up, cut out your favourite sections. It's going to be a wild ride. Chapter 4 is all about installation, skip it if the XLifter is already installed. The most important is the chapter 5 - Instruction for use, where the XLifter daily-use functions are described. -
Page 3: Legal Disclaimer
XLifter is not a device approved and designed for installation into vehicles intended to be operated on public roads namely pursuant to Act. no. 361/2000 Coll, as amended. The manufacturer does not... -
Page 4: Safety Information
This manual contains important information on the installation (in the installation guide) and use of the XLifter. Please take some time to read this manual to take full advantage of the XLifter features and to ensure that you know how to operate them safely. Use the XLifter only for its intended purpose as described in this user manual. -
Page 5: Installation
The XLifter EAS unit is installed near the original air suspension control unit and connects with it via the supplied cable harness. The XLifter EAS unit is mechanically attached to the body of the vehicle after installation, thus serves also as an accurate tilt sensor. -
Page 6: Eas Unit Installation
Disconnect the light connector located on the left side (right for RHD vehicles) of the cover. Remove the entire cover. XLifter model X1, user guide, ver. 1.41, firmware ver. 0.98 Reco, spol. s.r.o., Na hlinach 6, 18200 Prague, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 5... - Page 7 Install the XLifter EAS unit Prior to sticking the XLifter EAS unit into its final position, it may be a good idea to practice placing the EAS unit to a correct position for a few times, without having removed the 3M reclosable fastener protective foil. The 3M fastener sticks very firmly once placed in a position and makes it very uneasy to replace it once stuck in a place.
- Page 8 ● The green status LED flashes at a fast pace - 2x per second, indicating readiness for operation and awaiting wireless connection from the control module. XLifter model X1, user guide, ver. 1.41, firmware ver. 0.98 Reco, spol. s.r.o., Na hlinach 6, 18200 Prague, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 7...
-
Page 9: Control Module Installation
● The animated logo and the scrolling XLifter EAS unit wireless search indicator appears on the control module display. ● The control module and the XLifter EAS unit were already paired for you. The communication should be established within max. 10 seconds. Please allow up to 20 seconds if the EAS unit was just powered up by connecting the C connector, or by connecting the vehicle battery. -
Page 10: Vehicle Type And Calibration Settings
4.5. Vehicle type and calibration settings Before using the XLifter for the first time, it is necessary to set the type of your vehicle and run the calibration procedure. 1. Enter the service menu. The control module displays the service menu if any button is held pressed when the control module power is turned on. -
Page 11: Instruction For Use
5. Instruction for use The XLifter control module will allow you to set all required parameters and informs you about operating status. Think of it as a smart wireless remote for the air suspension. The control module has four arrow buttons ... -
Page 12: Function Lifter - Free: Adjustment From -40 To +75 Mm In 5 Mm Steps
"Standard". Of course, XLifter can also be used in the "original" height Off Road or Access, with the following limitations: In the “original” Off Road height, it is not recommended to lift the vehicle with XLifter by more than +25 mm permanently. The „Sky Rocket“ (+75 mm) program is not available. -
Page 13: Function Levelling: Self-Level The Vehicle
When ignition is subsequently turned on and vehicle is levelled, the XLifter shows the “Car is levelled” screen to indicate, that levelling function is still active. XLifter model X1, user guide, ver. 1.41, firmware ver. 0.98 Reco, spol. - Page 14 Warning and limitations to the levelling function: ● To use whole wheel articulation and maximize the level-able tilt, please start the levelling while car “original” height is normal. XLifter notifies you with the advice message if car is in Access or Off-road height.
-
Page 15: Menu "Settings": User Settings
- the levelling will lift the rear and lower the front. 5.4. Menu “Settings”: User settings. The "Settings" menu contains the user part of the XLifter setting - the setting items that make sense to be accessible during normal operation. The “Calibration” item ●... -
Page 16: Calibration
● The “Original” height means the vehicle height set by the lever or buttons at the centre console. 3. Ensure that the XLifter program is set to Disengaged (+0 mm) and that vehicle height is stable (raising or lowering isn’t still in progress). -
Page 17: Service Menu
7. Service menu The XLifter is designed for maximum ease of use. Therefore, the configuration or technical functions are hidden in the "Service menu". The Service menu is not needed during normal operation. A special procedure is required to call it up. -
Page 18: Service Menu Items Description
● After activation, the control module scans available Bluetooth devices and offers them for pairing. The name of the XLifter EAS unit is "X LIFTER EAS". Do not pair the control module to any other devices. -
Page 19: Firmware Update
EAS unit, is simply uploaded into the control module from any web browser. Updated control module subsequently updates the XLifter EAS unit. However, EAS unit update must be started manually from the Service menu. - Page 20 1 minute since the update has started (while "Synchronizing" is displayed). This will reset the EAS unit and programming will be restored. Intentionally left blank XLifter model X1, user guide, ver. 1.41, firmware ver. 0.98 Reco, spol. s.r.o., Na hlinach 6, 18200 Prague, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 19...
-
Page 21: Technical Specifications
(wireless comm) Declaration of conformity Hereby the RECO, spol. s.r.o. declares, that the radio device type XLifter X1 EAS unit and a XLifter X1 control module complies with the EU directives no. 2014/53/EU, 2014/35/EU, 2014/30/EU and 2011/65/EU. The mentioned devices are... -
Page 22: Faq & Troubleshooting
I can’t unlock them, I’m lost �� Deactivate the keylock in the service menu - chapter 7. XLifter model X1, user guide, ver. 1.41, firmware ver. 0.98 Reco, spol. s.r.o., Na hlinach 6, 18200 Prague, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 21... - Page 23 -> Please give the vehicle some time to adjust height. -> You may also use the “kick trick” - see chapter 5.3. XLifter model X1, user guide, ver. 1.41, firmware ver. 0.98 Reco, spol. s.r.o., Na hlinach 6, 18200 Prague, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 22...
-
Page 24: Warranty Conditions
Serial number: Reco, spol. s.r.o. Na Hlinach 6/18 CZ 182 00 Praha 8, Kobylisy info@xlifter.com seller www.xlifter.com XLifter model X1, user guide, ver. 1.41, firmware ver. 0.98 Reco, spol. s.r.o., Na hlinach 6, 18200 Prague, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 23...
