- Page 1 World’s first Air-suspension controller with self-levelling feature for selected Land Rover® vehicles Installation guide (Discovery 5 L462) Model X2 New Generation, Firmware 2.01...
-
Page 2: Table Of Contents
Wrapping Up and next steps. Congratulations on your XLifter purchase! Welcome to the installation journey of your XLifter, the Swiss Army knife for your vehicle's air suspension. This guide is designed to ensure a smooth and efficient setup, offering step-by-step instructions and essential safety tips. Your engagement with this manual not only demonstrates your commitment to maximizing XLifter's potential but also ensures a safe and successful installation. -
Page 3: Legal Disclaimer
XLifter on the vehicle’s warranty. Evaluating the risk of warranty impact is solely up to the user. The manufacturer bears no liability for any warranty issues that may arise as a result of using XLifter. -
Page 4: Xlifter Eas Unit Installation

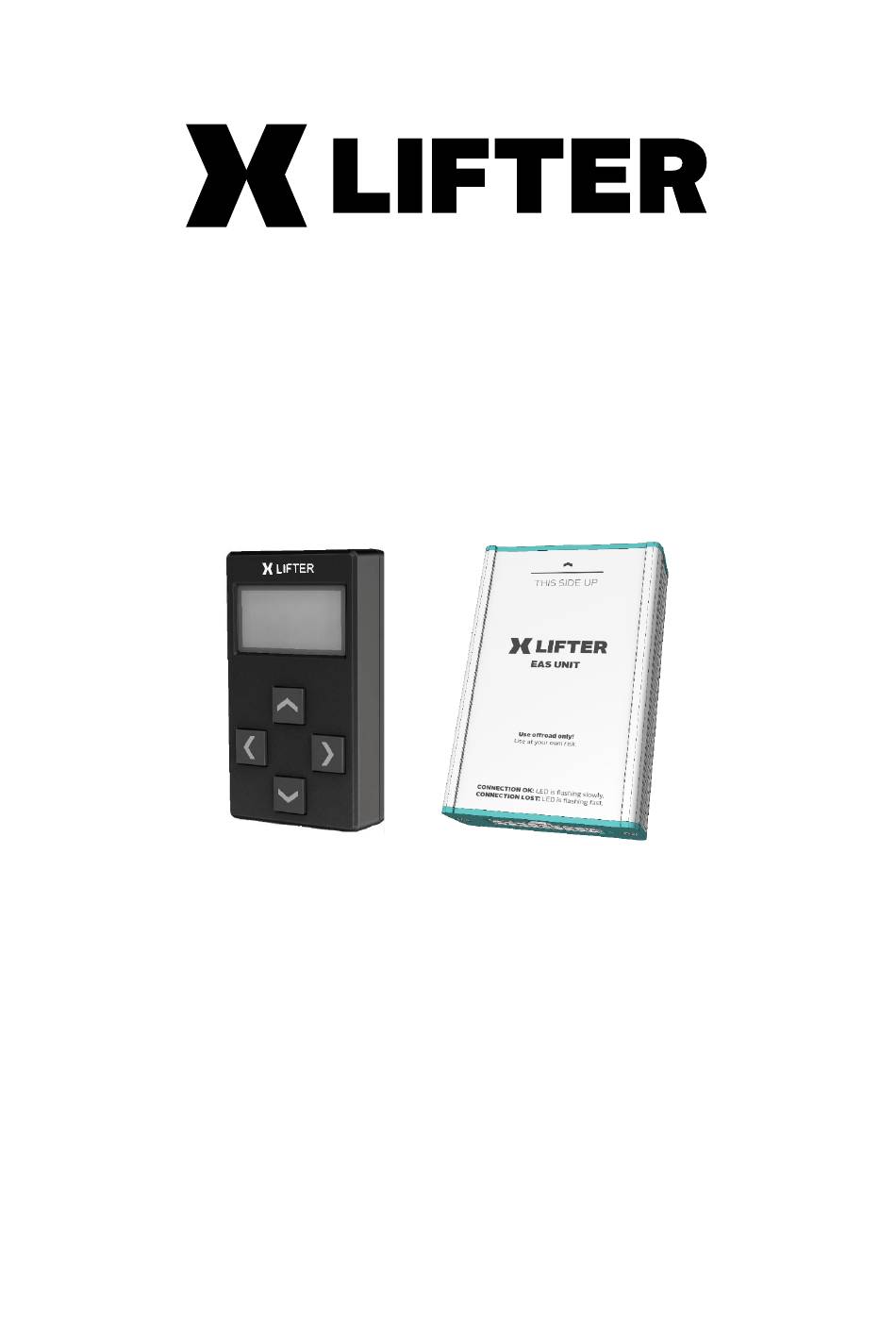

1x Installation manual, 1x user manual 3.2. Installation - General Description and overview The XLifter device consists of two main components: the control module and the XLifter EAS installation unit (where EAS stands for Electronic Air Suspension). The control module, a display unit with buttons, is used to manage all settings and inform the user of the operating status. -
Page 5: Step 1: Disconnect The Battery (According To The Vehicle Manual) - Optional
Unscrew three M7 screws. b) Disconnect the light connector. c) Remove the entire panel. XLifter model X2, NG, Installation guide, ver. 1.0 draft, firmware ver. 2.01, Discovery 5 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 4... -
Page 6: Step 3: Remove The "Discovery" Doorstep Trim
• Position the XLifter extractor tool correctly. Aim to hook onto the retaining clip's edge at the lever's back side, as shown in the pictures. By pushing the tool's top end down slightly, the hook on the other end should catch the clip's protrusion. -
Page 7: Step 5: Install Xlifter Eas Unit
1 clip. Step 5: Install Xlifter EAS unit. • The XLifter EAS unit gets mounted on top of the LR Chassis Control Module using the provided 3M reclosable fasteners. • Before fully attaching the XLifter EAS unit, it's smart to practice positioning it without removing the protective foil from the 3M fasteners. -
Page 8: Step 6: Install Compressor Temperature Lead (Optional)
If unsure, skip this step and disable the feature in Xlifter service menu. While this can be done at the end, it's easier to do now, before installing the Xlifter cable loom. -
Page 9: Step 7: Install Xlifter Cable Loom And Connect Xl Eas Unit
• With a small flat screwdriver, unclip the two yellow levers, push the levers down to unlock, and then pull the connectors downward to detach XLifter model X2, NG, Installation guide, ver. 1.0 draft, firmware ver. 2.01, Discovery 5 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com... - Page 10 XLifter model X2, NG, Installation guide, ver. 1.0 draft, firmware ver. 2.01, Discovery 5 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com...
-
Page 11: Step 8: Install 12V Power Supply Lead (Discovery 5 My 2017-2019)
12V Power Supply Lead. • If the LED isn’t flashing, even after correctly installing the XLifter cable loom, it means the EAS unit isn’t getting 12V power. This is often the case with Discovery 5 models from 2017, 2018, and some 2019, where the WH connector doesn't supply power. - Page 12 – under the steering wheel rod joint. XLifter model X2, NG, Installation guide, ver. 1.0 draft, firmware ver. 2.01, Discovery 5 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com...
- Page 13 XLifter fuse adapter. • Replace the original F54 fuse with the fuse adapter. XLifter model X2, NG, Installation guide, ver. 1.0 draft, firmware ver. 2.01, Discovery 5 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 12...
-
Page 14: Step 9: Finish The Xl Eas Unit Instalation
Congratulations, the most challenging part is over. But you're not quite done yet. Now, you need to ensure everything is working correctly, and put all the trims back in place. It's also a great idea to test the basic functionality of the Xlifter system before you finish reassembling everything. -
Page 15: Control Module Quick Start And Calibration
4.2. Select vehicle type and calibrate Xlifter. Before using the XLifter for the first time, you must select your vehicle type and perform a calibration. See the Xlifter user guide, chapter 5, for more details 1. -
Page 16: Dismantling Xlifter From Vehicle
● For temporary removal, the XLifter cable harness can remain in the vehicle. Just disconnect Connector C from the XLifter EAS unit and then insert the bypass plug into the now-free C connector. ● To detach the EAS unit from the 3M reclosable fastener, pull it straight out, perpendicular to its printed side, towards the direction of the center console.
