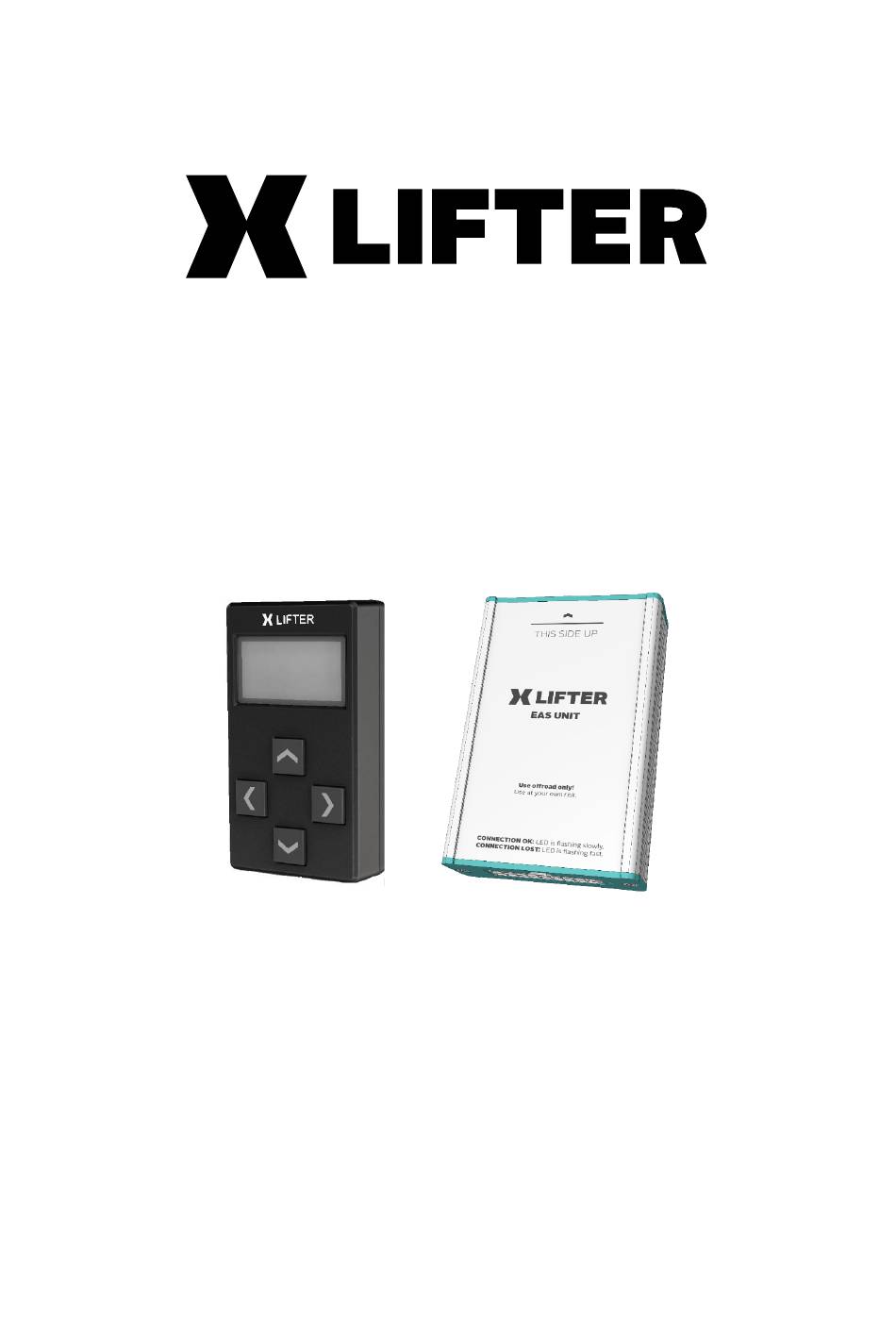

- Page 1 World’s first Air-suspension controller with self-levelling feature for selected Land Rover® vehicles Installation guide (Defender 110 L663) Model X2 New Generation, Firmware 2.01...
-
Page 2: Table Of Contents
Handle with care and precision. Your adventure into enhanced vehicle suspension abilities begins here. Thank you for trusting XLifter. XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 1... -
Page 3: Legal Disclaimer
XLifter on the vehicle’s warranty. Evaluating the risk of warranty impact is solely up to the user. The manufacturer bears no liability for any warranty issues that may arise as a result of using XLifter. -
Page 4: Xlifter Eas Unit Installation
• Plug the control module power into 12V socket. • Set the vehicle type and run the calibration procedure. XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com... -
Page 5: Xlifter Eas Unit Installation - Defender 110 L663
(ignition off, infotainment system off, etc.). XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com... -
Page 6: Step 2: Dismantle The Right Loadspace Trim Panel
Remove 2 bolts (Torx T30) • Pull treadplate upwards to release 4 clips. XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 5... - Page 7 Loadspace panel should partially bend and open access to the Chassis Control Module (CHCM) / Air suspension control module. XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com...
-
Page 8: Step 3: Install Xlifter Eas Unit
Step 3: Install Xlifter EAS unit. • Perfect place for the Xlifter EAS unit is right next to junction box, above rear-light access opening, as depicted below. Reason to do so is simple – there will be (at least partial) access to the unit even after all trim panels are installed back. You’ll be able to see XL EAS unit LED, you’ll be able to disconnect &... -
Page 9: Step 4: Install Xlifter Cable Loom And Connect Xl Eas Unit
== Intentionally left blank == XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com... - Page 10 The LED will blink again once the ignition is on. XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com...
- Page 11 Do not use needle-nose plyers, these work poorly. Only use plyers with parallel jaws! XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com...
- Page 12 4 wires connector if still disconnected, wrap protective tape back etc. XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 11...
-
Page 13: Step 6: Finish The Xl Eas Unit Installation
Reconnect the vehicle battery as per the vehicle's user manual if it was disconnected. b) Turn on the ignition. Check the Xlifter EAS unit green status LED; it should flash rapidly at 2x per second, signaling it's ready for operation and waiting for a wireless connection from the control module. -
Page 14: Control Module Quick Check
4.2. Select vehicle type and calibrate Xlifter. Before using the XLifter for the first time, you must select your vehicle type and perform a calibration. 1. Press three times to reach the “Confirm calibration” menu, navigating through the main and settings menus. -
Page 15: Controller Dashboard Mounting Kit Installation
Focus your efforts on the front/back sides. XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com... - Page 16 Temporarily bend the bracked slightly outwards and fit the controller. Connect DC connectors, Xlifter display will turn on. XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com...
- Page 17 Congratulation, installation is finished! == Intentionally left blank == XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 16...
-
Page 18: Dismantling Xlifter From Vehicle
● For temporary removal, the XLifter cable harness can remain in the vehicle. Just disconnect Connector C from the XLifter EAS unit and then insert the bypass plug into the now-free C connector. ● To detach the EAS unit from the 3M reclosable fastener, pull it straight out, perpendicular to its printed side, towards the direction of the center console. -
Page 19: Troubleshooting
• Send us an email to info@xlifter.com or contact your dealer. XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 18... - Page 20 110 00 Praha 1, Nové Město Czech Republic info@xlifter.com www.xlifter.com Seller / installer XLifter model X2, NG, Installation guide, ver. 1.0, firmware ver. 2.01, New Defender 110 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 19...
