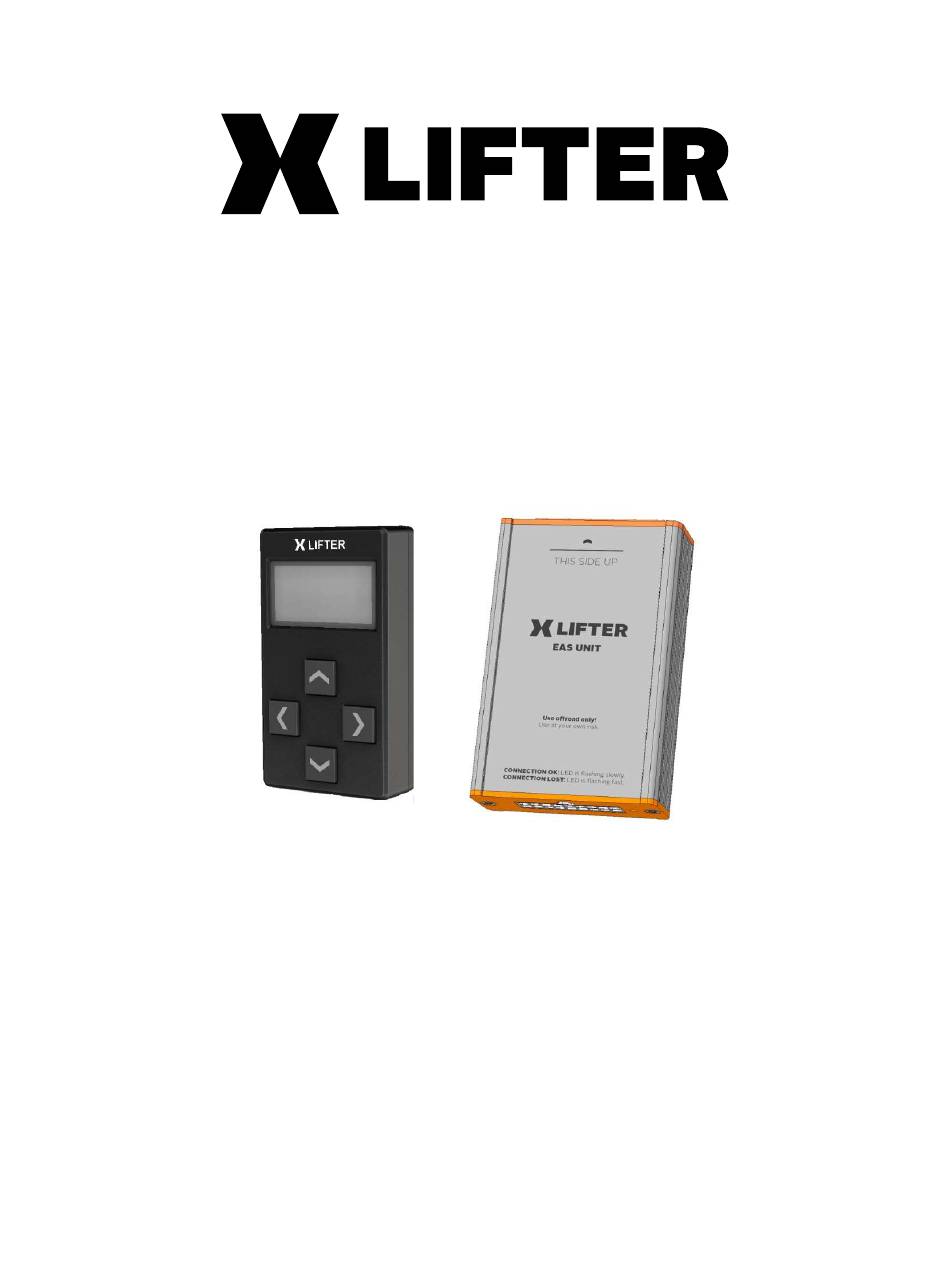

- Page 1 World’s first Air-suspension controller with self-levelling feature for the Discovery 3/4 (LR3/4) and RRS Land Rover® vehicles User manual (Installation & user guide) Model X2, Firmware 1.07...
-
Page 2: Table Of Contents
11. Contacts and support Quick Overview: Congratulations, on your XLifter purchase! I am so glad you decided to read the instructions. Many users casually dismiss instructions and seek to figure it out on their own – which is perfectly possible, however, even though I’ve built the product as simple and intuitive as possible, there are some useful tricks, hints, warnings and “behind the... -
Page 3: Legal Disclaimer
XLifter is an additional device able to change/adjust the air-suspension computer/electronic programming of the vehicle in which the device is installed. XLifter is not a device approved and designed for installation into vehicles intended to be operated on public roads namely pursuant to Act. no. 361/2000 Coll, as amended. The... -
Page 4: Safety Information
Keylock function before driving, as a safety measure. (see chapter 5.4) Warning: If an XLifter is left installed in the vehicle when it is sold, notify the new acquirer and familiarize him with this manual. Please keep this manual in the vehicle in an accessible location for a future reference. -
Page 5: Installation
The XLifter EAS unit is installed near the original air suspension control unit and connects with it via the supplied cable harness. The XLifter EAS unit is mechanically attached to the body of the vehicle after installation, thus serves also as an accurate tilt sensor. -
Page 6: Eas Unit Installation
Disconnect the light connector located on the left side (right for RHD vehicles) of the cover. Remove the entire cover. XLifter model X2, user guide, ver. 2.0, firmware ver. 1.07 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 5... - Page 7 Install the XLifter EAS unit Prior to sticking the XLifter EAS unit into its final position, it may be a good idea to practice placing the EAS unit, without having removed the 3M reclosable fastener protective foil. The 3M fastener sticks very firmly once placed in a position making it difficult to remove or move.
- Page 8 - as if no cable harness is installed at all!! XLifter model X2, user guide, ver. 2.0, firmware ver. 1.07 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 7...
-
Page 9: Control Module Installation
● The animated logo and the scrolling XLifter EAS unit wireless search indicator appears on the control module display. ● The control module and the XLifter EAS unit were already paired for you. The communication should be established within max. 10 seconds. Please allow up to 20 seconds if the EAS unit was just powered up thru the C connector, or by connecting the vehicle battery. -
Page 10: Vehicle Type And Calibration Settings
4.5. Vehicle type and calibration settings Before using the XLifter for the first time, it is necessary to set the type of your vehicle and run the calibration procedure. 1. Press three times to access the “Confirm calibration” menu. -
Page 11: Instruction For Use

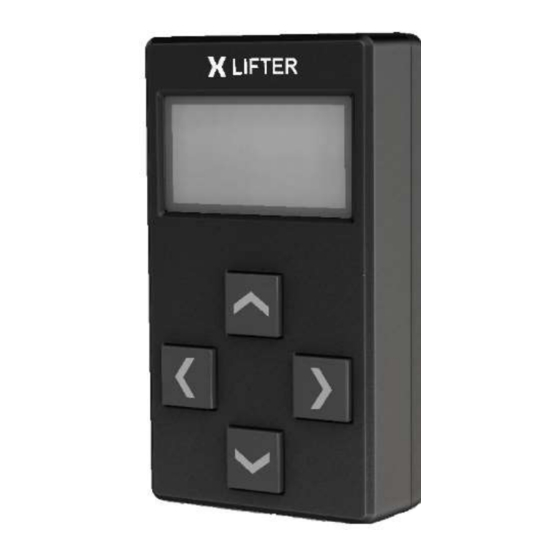

5. Instruction for use The XLifter control module will allow you to set all required parameters and informs you about operating status. Think of it as a smart wireless remote for the air suspension. The control module has four arrow buttons . -
Page 12: Lifter (+- 5Mm Free Mode): Free Adjustment From -40 To +75 Mm
"Standard". Of course, XLifter can also be used in the "original" height Off Road or Access, with the following limitations: In the “original” Off Road height, it is not recommended to lift the vehicle with XLifter by more than +25 mm permanently. The “Sky Rocket“ (+75 mm) program is not available. -
Page 13: Levelling: Self-Level The Vehicle
When ignition is subsequently turned on and vehicle is levelled, the XLifter shows the “Car is levelled” screen to indicate, that levelling function is still active. Warning: The levelling function must be exited before driving! Otherwise you... - Page 14 Warning and limitations to the levelling function: ● To use whole wheel articulation and maximize the level-able tilt, please start the levelling while car “original” height is normal. XLifter notifies you with the advice message if car is in Access or Off-road height.
-
Page 15: Trailer Assistant: Easier Trailer Operations
5.5. Compressor temperature monitor The temperature monitoring is a new feature brought by the XLifter X2 EAS unit. The car compressor is designed for short quick bursts operations, not for continuous use. When XLifter features are used extensively, demand for air refills increases. -
Page 16: Menu "Settings": User Settings
● The display brightness level setting. Adjustable with buttons in 0% to 100% range. Hold the button for auto-repeat. ● If the brightness is changed and no button is pressed for 5 seconds, XLifter returns to the home screen automatically. 3. The “Activate Keylock” item ●... -
Page 17: Menu "Recovery Options": All About Fixing Problems
When active, do not change height with original LR height control. All cases above will activate vehicle “extended mode”. == Intentionally left blank == XLifter model X2, user guide, ver. 2.0, firmware ver. 1.07 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 16... -
Page 18: Calibration
● The “Original” height means the one set by the lever/buttons at the centre console. 3. Ensure that the XLifter program is set to Disengaged (+0 mm) and that vehicle height is stable (raising or lowering is not still in progress). -
Page 19: Service Menu
7. Service menu The XLifter is designed for maximum ease of use. Therefore, the configuration or technical functions are hidden in the "Service menu". The Service menu is not needed during normal operation. A special procedure is required to call it up. -
Page 20: Service Menu Items Description
● After activation, the control module scans available Bluetooth devices and offers them for pairing. The name of the XLifter EAS unit is "XLIFTER EAS". Do not pair the control module to any other devices. -
Page 21: Firmware Update
● Deletes the XLifter calibration. XLifter will display “!NOT! CALIBRATED” and will need to be calibrated again. ● Useful when moving XLifter to another vehicle or selling it. Please do not let new user use the XLifter with wrong calibration! 10. - Page 22 If no “Xlifter update” page is displayed, turn off mobile data in your cell phone and try again. 5. On the webpage displayed, hit the button “choose file” and select downloaded firmware file. Then hit the “update” button. ● The control module update itself and then restarts automatically.
-
Page 23: Technical Specifications
(wireless comm) Declaration of conformity Hereby the eXpedition tech s.r.o. declares, that the radio device type XLifter X2 EAS unit and a XLifter X1 control module complies with the EU directives no. 2014/53/EU, 2014/35/EU, 2014/30/EU and 2011/65/EU. The mentioned devices are... -
Page 24: Warranty Conditions
Těšnov 1163/5 110 00 Praha 1, Nové Město Czech Republic info@xlifter.com www.xlifter.com seller XLifter model X2, user guide, ver. 2.0, firmware ver. 1.07 eXpedition tech s.r.o., Těšnov 5, 110 00 Prague 1, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 23...
