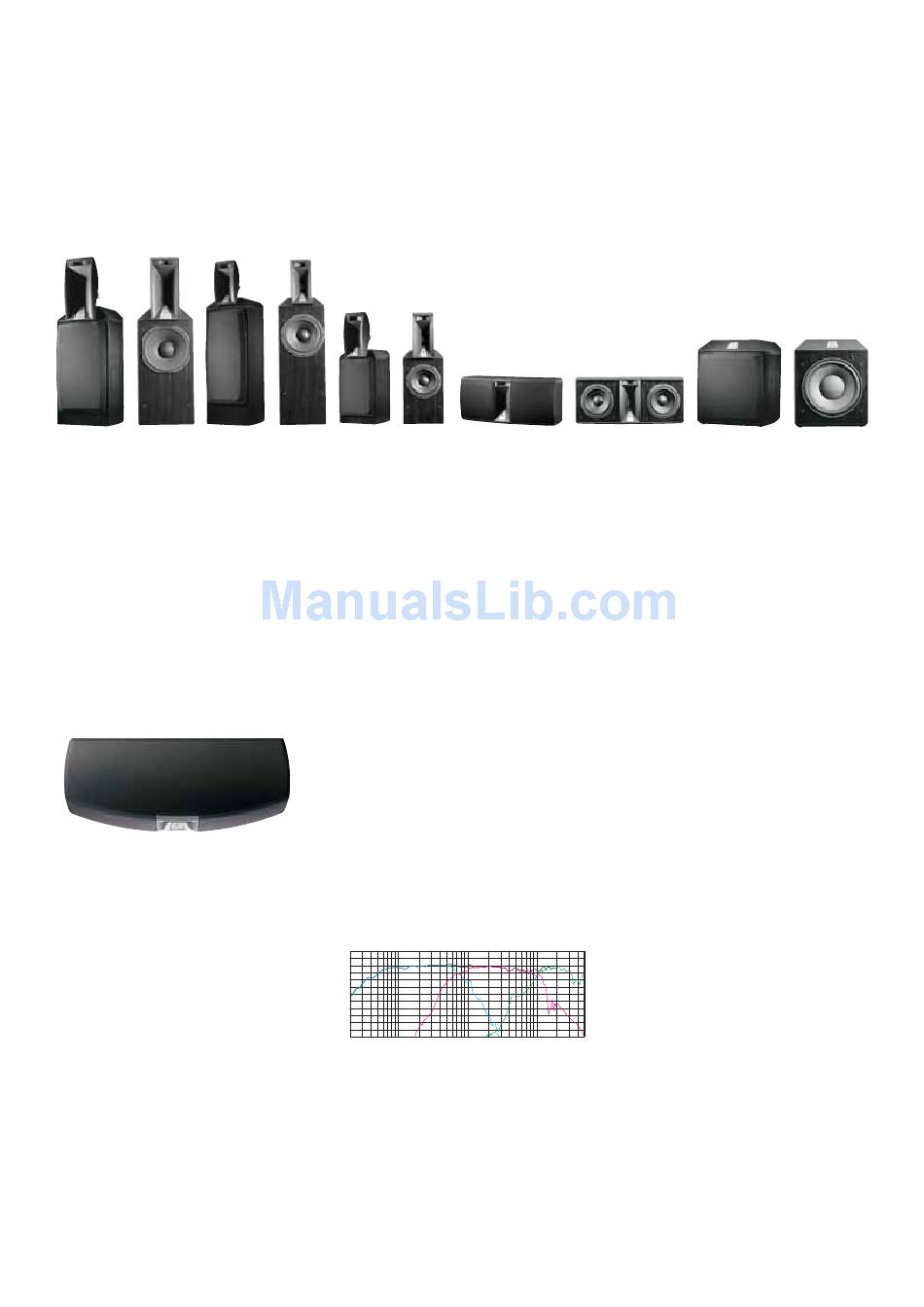

NUMBER ONE
ENGINEERING
1400 Array
Project Array draws on more
than half a century of
innovative JBL engineering
Aluminum compression driver
The neodymium motor and edge-wound voice
coil of Kapton ® -encapsulated aluminum wire
drive a 75mm (3") Aquaplas-treated aluminum
dome mounted in a rigid, constant-directivity
horn. This is the secret behind the three-
dimensional imaging of JBL Project Array.
Titanium super tweeter
The edge-wound voice coil attached directly
to a 25mm (1") titanium diaphragm and driven
by a 50mm (2") neodymium motor assembly
delivers uniform response out to 40kHz. The
vertical SonoGlass constant directivity horn
maintains an optimum dispersion pattern of
60 degrees x 30 degrees.
Classic JBL bass drivers
The Project Array woofers are all based on
acclaimed JBL Professional bass drivers.
They employ massive ferrite motor assem-
blies, edge-wound copper voice coils and
durable rubber surrounds to drive an essen-
tially inert Aquaplas-coated pulp-cone assem-
bly. Built to play loud and long, they proudly
reflect their professional heritage.
P R O J E C T A R R AY 15 0 0 · 14 0 0 · 10 0 0 · 8 8 0 · 8 0 0
1000 Array
100
90
80
70
60
50
800 Array
Unique enclosure
The trapezoidal low-frequency internal enclo-
sure is constructed of heavily braced 1-1/2"
MDF. A raised-top cavity minimizes diffraction
from the exposed high-frequency horn. Brass
spikes couple the external enclosure to the
floor. Project Array lives up to JBL's long-
standing reputation for rugged construction.
All Array loudspeakers are available in the
same rich, luxurious black zebrawood finish
as the K2 S9800 Special Edition.
Seamless system integration
Project Array crossovers use 4th-order
acoustic transitions, ultralow-loss inductors
and polypropylene capacitors. The high and
ultrahigh crossover sections are isolated on
a separate board in a different section of the
enclosure to minimize crosstalk with the
low-frequency crossover.
HF LF UHF
30 100 1k
Hz
Flexible system building
1400 ARRAY is a three-way floor-
standing design featuring the LE14H-3
350mm (14") Aquaplas-treated pulp cone
driver with 100mm (4") copper voice coil, the
045Ti 25mm (1") pure- titanium compression
driver and the 435AL-1 75mm (3") Aquaplas-
treated aluminum-dome compression driver.
880 Array
1000 ARRAY is a three-way floorstanding
design featuring the Array 10 250mm (10")
polymer-treated pulp-cone driver with 38mm
(1-1/2") copper edge-wound voice coil, the 045Ti
25mm (1") pure-titanium compression driver and
the 175Nd-3 44mm (1-3/4") Aquaplas-treated
aluminum-dome compression driver.
800 ARRAY is a three-way bookshelf
design featuring the Array 8 200mm (8")
polymer-treated pulp-cone driver with
38mm (1-1/2") copper voice coils wound on an
aluminum former, the 045Ti 25mm (1") pure-
titanium compression driver and the 175Nd-3
44mm (1-3/4") Aquaplas-treated aluminum-
dome compression driver. The dual bass drivers
are mounted on angled baffles in an independent
trapezoidal enclosure.
880 ARRAY is a three-way dedicated cen-
ter loudspeaker featuring dual Array 8C 200mm
(8") polymer-treated pulp-cone drivers with
38mm (1-1/2") copper edge-wound voice coils,
the 045Ti 25mm (1") pure-titanium compression
driver and the 435AL 75mm (3") Aquaplas-
10k 20k 50k
treated aluminum-dome compression driver.
1500 ARRAY is a potent subwoofer
capable of heart-stopping deep bass. It
incorporates a powerful W1500H 380mm (15")
bass driver with 100mm (4") copper edge-
wound voice coil and a dedicated 1000-watt
Class D digital power amplifier mounted in a
trapezoidal enclosure.
1500 Array
