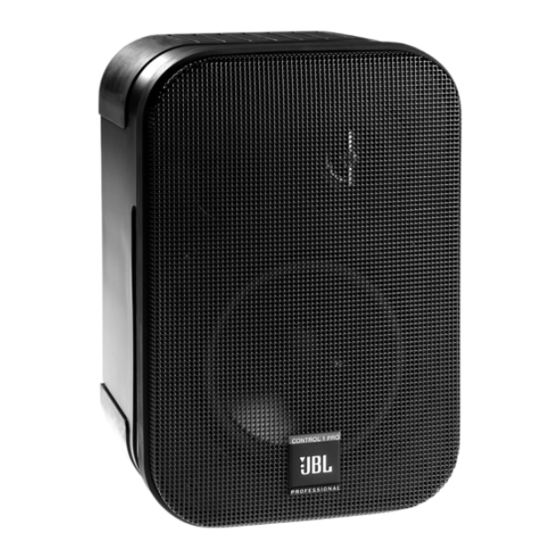

JBL Control Control One Pro Specifications

Control
Professional Series

Key Features:

150 Watts Continuous Power
Handling
Professional Drivers and Crossover
Network
Included Mounting Bracket
Transparent and Faithful Sonic
Performance
Magnetically Shielded Transducers
SonicGuard™ Overload Protection
Available in Black or White
Finishes
Applications:
Representing the next-generation in
professional high-performance,
compact loudspeaker systems, the
Control ® 1 Pro builds on its proud
heritage while incorporating the latest
innovations in JBL Professional
loudspeaker systems design.
Featuring proven JBL transducer
technologies, the Control 1 Pro is
perfect for a wide variety of critical
near-field audio applications.
With independent, monitor-grade
high and low frequency drivers, the
Control 1 Pro's professional crossover
network provides steep slopes for
exceptional sonic performance and
incorporates full-range SonicGuard™
overload protection into the design
ensuring network and transducer
protection from excessive power
surges from the amplifier.
The Control 1 Pro's rugged and
durable molded enclosure houses
magnetically shielded transducers
making it ideal for use with video
and computer monitors or other
magnetically sensitive equipment.
Moreover, the Control 1 Pro's
compact design makes it ideal for
audio-visual applications, computer
workstations, recording and broadcast
studios, mobile audio-video control
rooms and foreground and
background music.
The Control 1 Pro can easily be
mounted against a wall or other flat
surface with the enclosed brackets or
simply used as a bookshelf speaker.
®
1 Pro

Specifications:

System:
Frequency Range (-10 dB): 80 Hz - 20 kHz
Frequency Response (+/- 3 dB): 100 Hz - 18 kHz
Power Capacity
Sensitivity
Maximum SPL
Directivity Factor (Q)
Directivity Index (DI): 7.8 dB
Nominal Impedance: 4 ohms
Crossover Frequency: 4.2 kHz
Overload Protection: Full-range SonicGuard™ power limiting to
Transducers:
LF Driver: 135 mm (5.25 in) low frequency loudspeaker
HF Driver: 19 mm (.75 in) polycarbonate dome tweeter
Input Connectors: Spring-loaded terminals
Enclosure:
Enclosure Material: Polypropylene Structural Foam
Dimensions: 235 mm x 159 mm x 143 mm
Net Weight (each): 1.8 kg (4 lb)
Shipping Weight (pair): 4.6 kg (10 lb)
Included Accessories: Mounting Bracket Assembly
Optional Accessories: MTC-1A ultra-duty mount bracket
1 IEC Standard, full bandwidth pink noise with 6 dB crest factor; 2 hour duration.
2 Average 1 kHz to 10 kHz
Calculated based on power rating and sensitivity, exclusive of power compression.
3
JBL continually engages in research related to product improvement. Some materials, production methods and design
refinements are introduced into existing products without notice as a routine expression of that philosophy. For this
reason, any current JBL product may differ in some respect from its published description, but will always equal or
exceed the original design specifications unless otherwise stated.
Two-Way Professional
Compact Loudspeaker
System
: 150 W
1
2 : 87 dB SPL, 1 W 1 m (3.3 ft)
: 108 dB continuous, 114 dB peak
3
2 : 6.0
protect network and transducers
Finish: Black (C1Pro) or White (C1Pro-WH)
(9.3 in x 6.3 in x 5.6 in)
MTC-8 heavy-duty mounting bracket
